100L/ day Continuous Flow Ultrasonic Cell Disruptor 4000W

Continuous Flow Ultrasonic homogenizer also known as Continuous Flow ultrasonic cell disruptor, is a multi-function & multi-purpose instrument, which uses high strength ultrasonic to cause cavitation effect in liquid, for material ultrasonic processing. It could be used to crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separation, homogenization, extraction, defoaming, cleaning and speeding up a chemical reaction, etc.

Features:

*  LCD display.

* 20 groups of program data can be stored.

*Temperature monitor: overtemperature protection.

* Other functions: automatic tracking the frequency, fault alarm

Technical Parameters:

Frequency :19.5-20.5KHz

Standard Amplitude-change Pole : 40mm

Crushing Capacity/Once 500~10000ml

Crushing Capacity/Continuously 100L/Day

Max.Consumption 1000~4000W, Adjustable

Time Set Optional: Continuous/Pulse

Max. Working Time 99h59min59sec

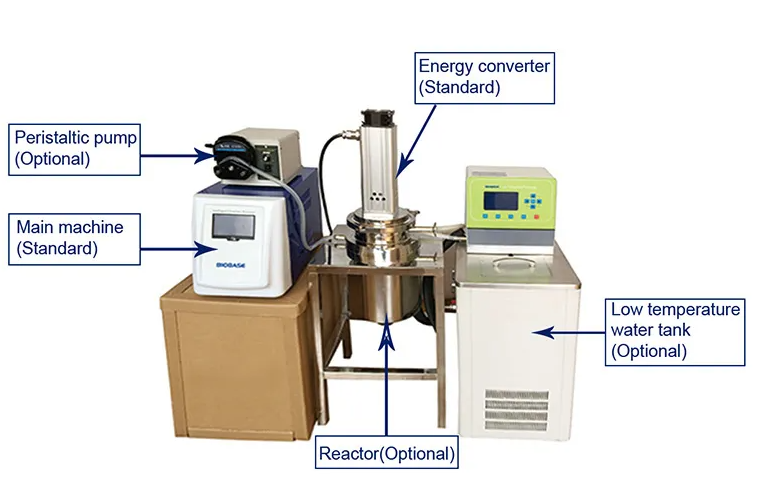

Safety System Over temperature; Time; Overload;No load Standard Accessories Main machine, energy converter, standard amplitude, sound proof box(or supporting frame) Optional Accessories Stainless steel reactor, peristaltic pump, low temperature water tank

Power Supply AC220V±10%, 50/60Hz(Standard); AC 110V, 60Hz(Optional)

Application

- Disruption of cells, bacteria, viruses, spores, fungi or tissues (cell disruption) - Extraction of ingredients (lysis) - Homogenization of different substances - Production of finest emulsions with minimum droplet size - Dissolution of poorly and poorly soluble substances in liquids - Production of dispersions (emulsions and suspensions) - Catalysis and acceleration of chemical reactions
