100L/H Stainless Steel Macroporous Resin Chromatography Column Adsorption Column

Product Description

This Macroporous Resin Chromatography Adsorption Column equipment adopts high quality stainless steel to manufacture and it is with short working time, high depuration efficiency, simple operation and far going applicability. It can install PLC control system to operate automatically.

1. Countercurrent wash column: with a broken washing to remove small particles and filler
2. adsorption: adsorption according to 14BV / H adsorption liquid active ingredient, usually PH = 5-8, temperature <50 °C degrees best.
3. water elution: water to 2-3BV / H will be adsorbed on the packing of the impurities washed out.
4. Desorption: ethanol and other solvents to 0.5-3BV / H dissolution of the active ingredient.
5. Regeneration: the use of renewable liquid (acid or alkaline) 0.5-3BV / H; restore the adsorption capacity of filler.
6. water cleaning; regeneration after filling with water.
7. BV explanation: usually installed in the cylinder-shaped packing chromatography columns, the solution continuously through, chromatography column packing volume as bed load volume (bed volume), abbreviated as BV. Industrial use of bed volume chromatography column is usually 1-10M3, also has a smaller or larger.
8. This is the basic unit of chromatography columns, it works when the quantity of material to BV as a unit. For example, solution flow rate through the chromatography column for the 2-4BV / H, the volume per hour through the solution for the chromatography bed volume of 2-4 times. Packing capacity fairly frequently in BV for the unit.
9. In the traditional adsorption, washing, desorption, regeneration control process stage, the object is to control the feed rate of the adsorption column, the control valve and flow meter installed in the import of liquid in the adsorption column of the discharge port to install a switch valve. This is controlled from the surface on the adsorption rate within the required range,

Resin column equipment is widely used in the academy ,scientific research institute and pharmaceutical company for the new products and process parameter test and purify.

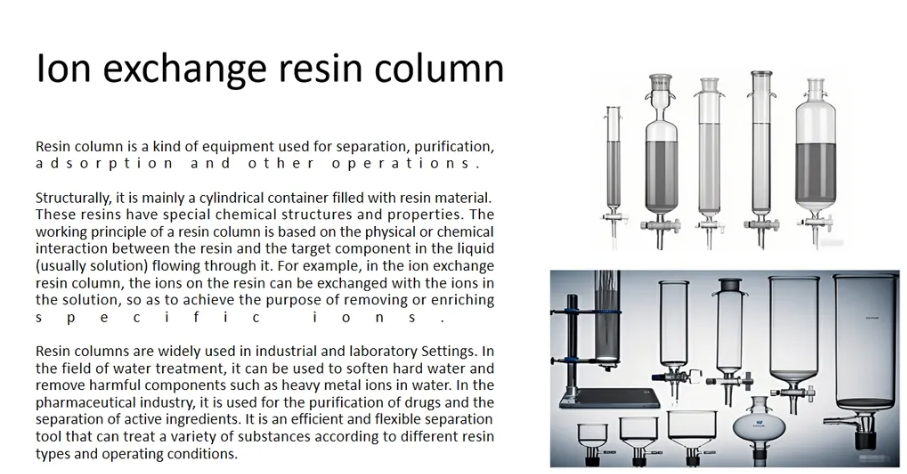

Resin column is a cylindrical pressure column used for ion exchange reaction. It is an exchange equipment for ion exchange by column method. A cylindrical exchange column is used. The Solution was introduced from one end of the column and contacted with the fixed ion exchange resin layer which was in a dense state in the column for ion exchange.so it is widely used for the purify and refine the extractor solution in pharmaceutical field .
