four-Channel Insect Odor Behavior Observer Olfactometer

Product Description

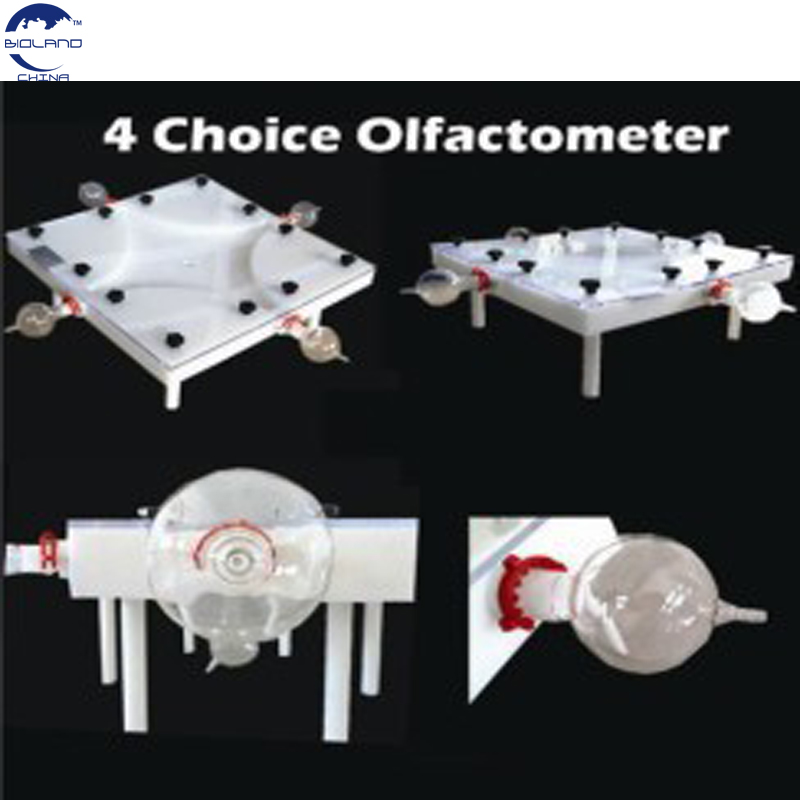

four Choice Insect Olfactometer is an instrument applied in studying the behavior of insects with strong ability of activity. Insets communicate with the host plant via odor about the information of spawning, feeding and other activities, so odor is very important for insects. The insects' olfactory behavior could reveal the chemical relationship between pest and host plant, and could also provide a new way to the prediction, monitoring and prevention of pests.

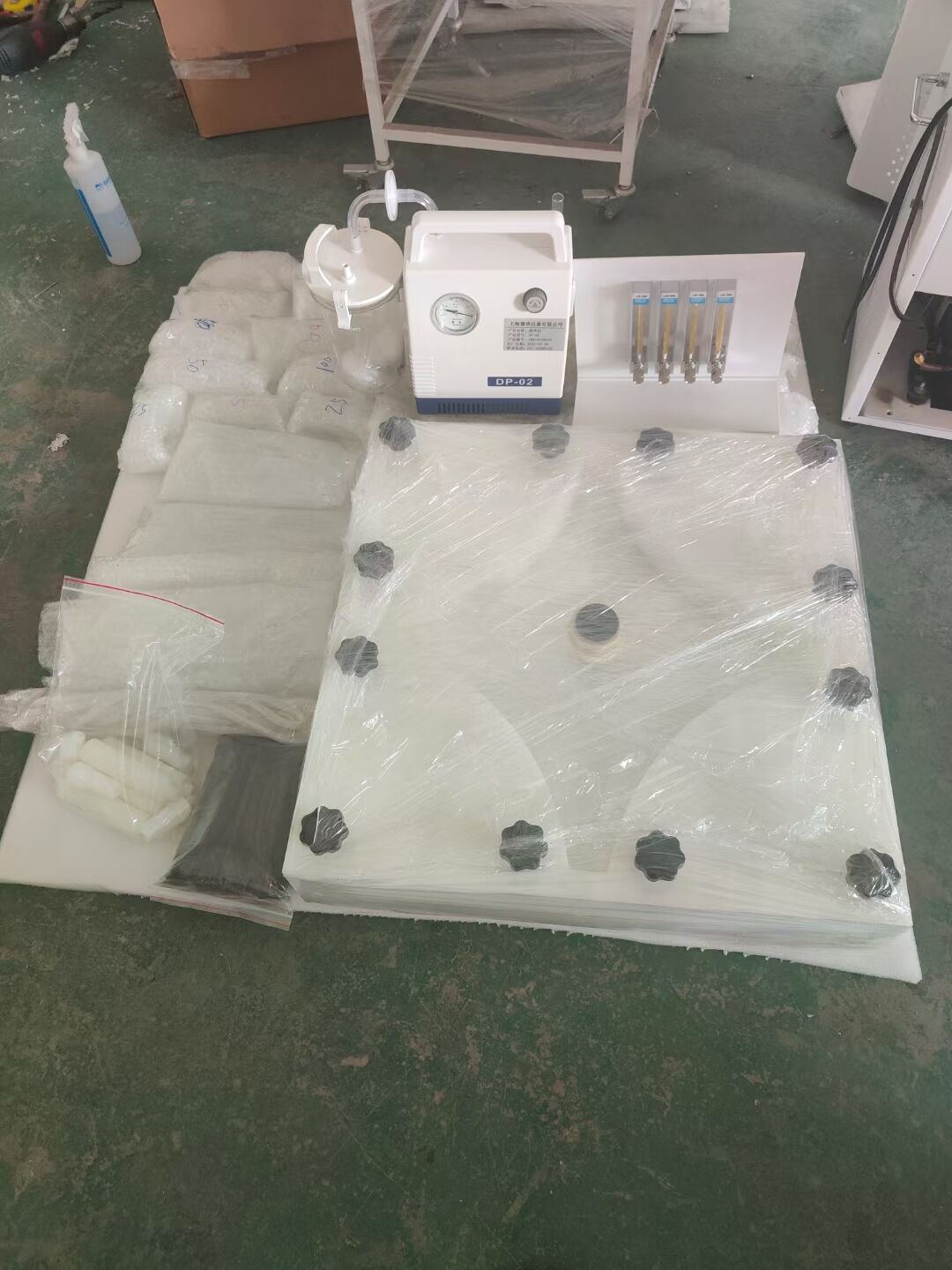

Configuration

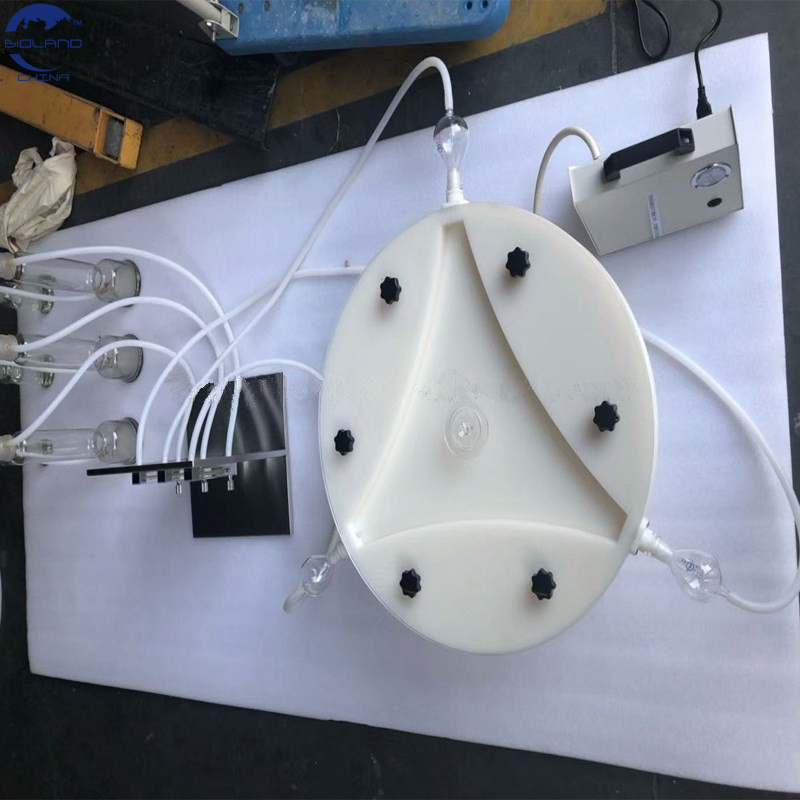

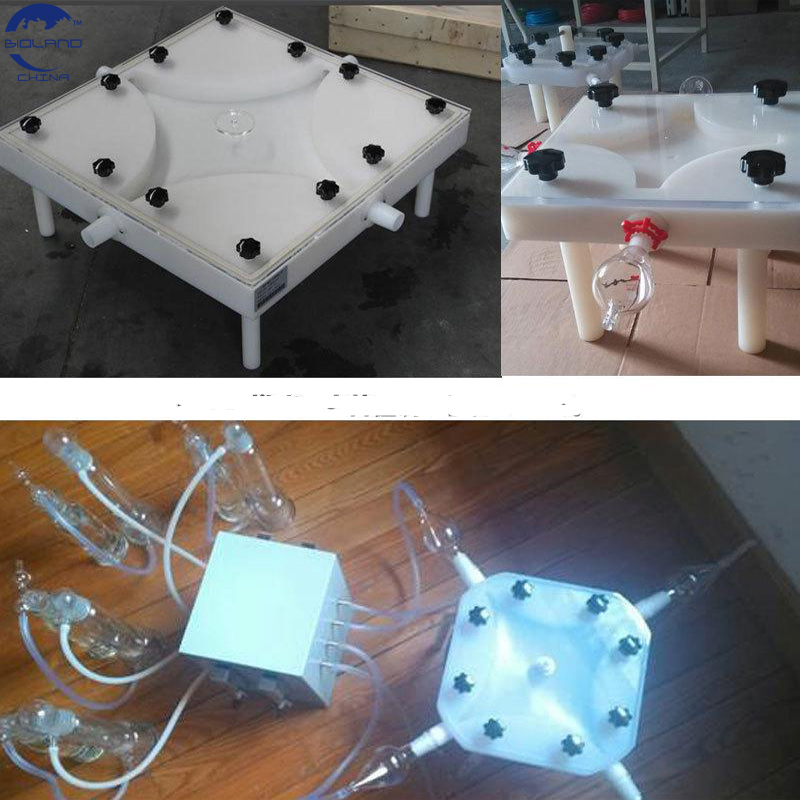

The activity room diameter:Internal (dia.150mm /200mm/300mm or others) and 4 channels; deep 20mm~30mm.

1.The main body : made of high definition transparent organic glass material,Optional Trifron material.

2. The wormhole adopts superimposed self-priming design with specifications φ40mm, φ20mm;

3. Insect pear shaped collection bottles, 50ml and 100ml,4 bottles each, effectively prevent insects from returning to the observation room;

4. 4 odor bottles 250ml/500ml, suitable for liquid solid odor source and air humidification.

5. Flow control: 4 channels can control flow independently, flowmeter: 10~100ml/min/30~300ml/min/50~500ml/min or others.

6. 4pcs 250ml/500ml drying towers equipped with 1kg activated carbon can effectively filter impurities in the air;

7. Oil free vacuum pump, voltage 220V, power ≥ 60W,no-load flow 20L/min, relative vacuum degree (Kpa) ≈ -80;
