Stainless Steel Continuous Stirred Lab Vacuum Mixer Chemicals Reactor

Product Description

large industrial chemical stainless steel double-layer reactor boasts a robust structure crafted from corrosion-resistant S304 or S316L stainless steel, ensuring durability and reliability even under high temperature and pressure conditions. With a double-layer design, it facilitates efficient stirring reactions, while the interlayer allows for precise temperature control through various heating and cooling sources. Ideal for industrial-scale chemical production, pharmaceuticals, and high-pressure reactions, it offers versatility and ease of maintenance, making it a valuable asset in modern fine chemical plants and biopharmaceutical facilities.

Features

1. Frequency conversion speed regulation, AC induction motor. Constant speed, no brushes, no sparks, safe and stable, can work continuously.
2. The whole set of instruments is made of SUS316L/SUS304 stainless steel, with good chemical and physical properties.
3. The interlayer interface is passed through hot oil for circulation, which can be used for heating reaction, and the freezing liquid can be passed through for low-temperature reaction.
4. It can react at room temperature, and tap water can quickly take away the reaction heat.
5. The lower discharge port uses a stainless steel ball valve, there is no dead corner in the container, and it can be disassembled to facilitate the discharge of solid materials.
6. The multi-port reactor cover, the extra-large port design is easy to clean, and the standard port socket can be selected to assemble the reflux and distillation synthesis device.

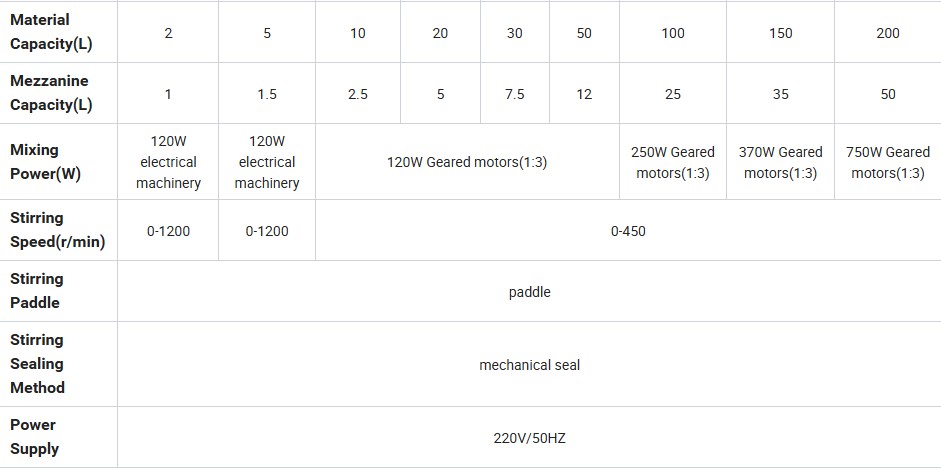

Technical Parameters

Certifications
