2L 3L lab scale Mini Milk egg Protein Powder Spray Dryer machine

Product Description

lab scale Spray Dryer is suitable for making and drying various powders such as milk royal jelly, medicine, chemical materials, etc. At a high speed of dying with hot-air flow, 95%~98% water can be evaporated at a moment. The drying process only needs several seconds.
Its final products boast good uniformity, mobility, and high purity and quality dissolving capacity. The production procedures are simple and the operation and control are easy. The liquid of 40~60% moisture contents (for special materials, the contents maybe 90%) can be dried into powder or particles once a time. After drying, there is no need for smashing and sorting. The product particle diameters, looseness and water contents can be adjusted by changing the operation condition in a certain scope.

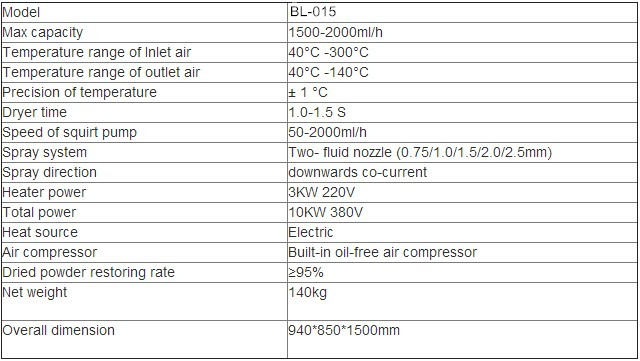

Product Parameters

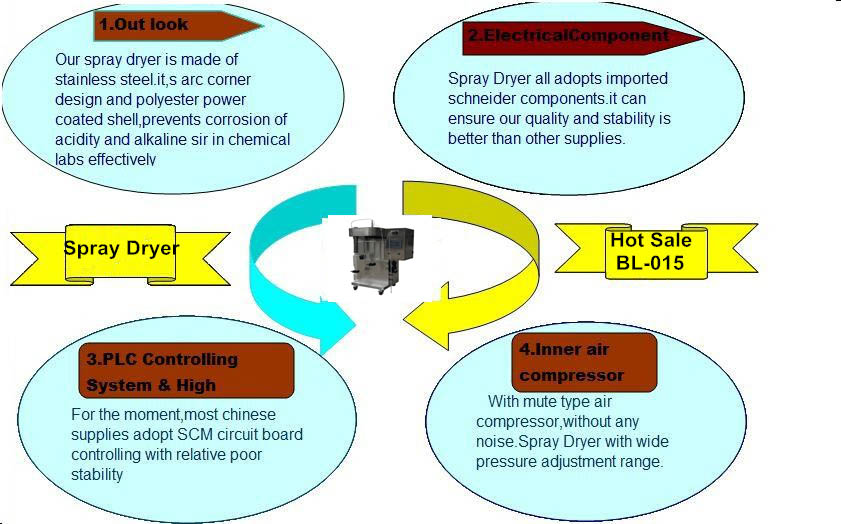

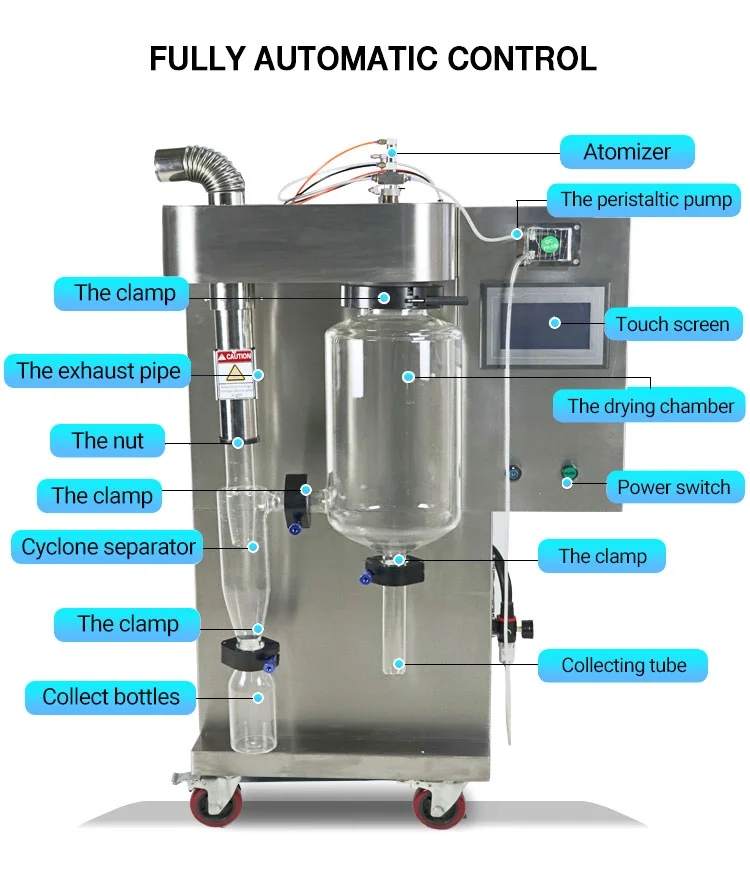

Advantages

1. Vortex air pump fan for both blowing and suction, no water, no oil, easy to use.
2. Filter system with pleated filter element, Filtration area of 104 cubic meters per hour, PTFE film.
3. LCD touch screen and PLC controller, can observe real-time working condition clearly.
4. The spraying, drying and receiving system are made of high borosilicate glass, which has the advantages of visualization of cleaning process, visualization of atomization process, strong acid and alkali resistance, etc.
5. Built-in imported oil-free air compressor, low noise, less than 60db.
6. Two-fluid atomizer, the atomizer spray guns has an air cap, and the air cap is a metal one-piece structure, which can greatly improve the stability of gas circulation.

Application

1. Food organic chemistry, milk powder, egg yolk, soy sauce, coffee, starch, protein, spices, extracts.
2. Inorganic chemistry fields, such as wax, dyes, detergents, synthetic resins, pigments, etc.
3. Various fuel cell development fields for automotive and ship propulsion, including ferrite, ceramics, photocopying powders, magnetic materials, metal powders, etc.
