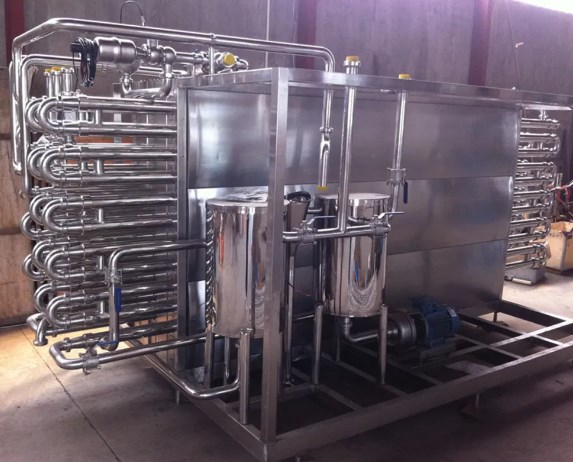

High Temperature Tubular Type Uht Sterilizing Machine

Product Description

UHT tubular sterilizer can sterilize fruit juice, jam, dairy or similar materials.The equipment can simultaneously complete the function of heat sterilization and cooling of the material, but also can automatically control and record some important technical parameters , such as the sterilization temperature, which not only reduces the influence of human factors on the sterilization process, but also record the normal production process.

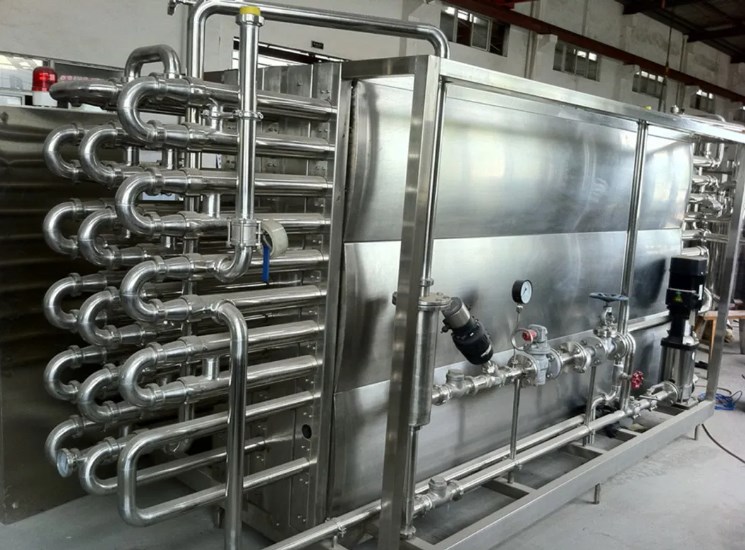

UHT Tubular sterilizer is mainly composed of steam system, material system, hot water system, cooling system and other parts.All these parts are compact, with small occupied floor and easy to transport and install.
UHT tubular sterilizer can be divided into tubular sterilizer and tube-in-tube sterilizer. Tubular sterilizer is mainly applied to materials with good fluidity, low viscosity of the material such as juice, milk and other beverages ; While tube-in-tube sterilizer with four-layer casing structure, is applied to the jam, pulp, maltodextrin and other materials with poor mobility, high viscosity.

1. Higher thermal efficiency, 90% heat recovery

2. Corrugated heat exchange tube is used, which can produces flow disturbance in the tube and prevents fouling and plugging and increases the heat exchange coefficient. 3. Fully automatic control for whole system: control and record the CIP cleaning, sterilizing, etc 4. Precise Sterilizing temperature control 5. Adopts advanced polish technology, and with self CIP to clean the whole system. 6. Safety system: steam, hot water, material all use pressure protection and alarm system 7. High reliability system: main parts from Famous Brand Supplier Machines can be customized according to customers'necessary Weishu UHT tubular Sterilizer machine are used for all kinds of dairy/beverage sterilization. Aseptic type can be used for aseptic packing, such as aseptic brick carton packing, composite film packing, aseptic PE bottle packing, etc.

3.Machine Applications of Pasteurizer
This mini UHT Milk Pasteurizer Prices is applied for various technology processing:such as homogenizing,pasteurization,high temperature sterilization and ultra high temperature sterilization and so on.It's used for various beverages and similar heat sensitivity liquids,such as milk,juice,condiments,additives,tea drinks and beer etc.
