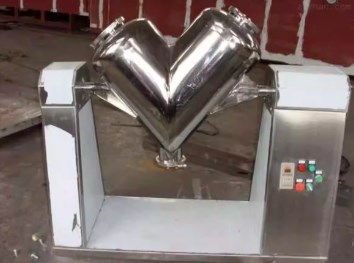

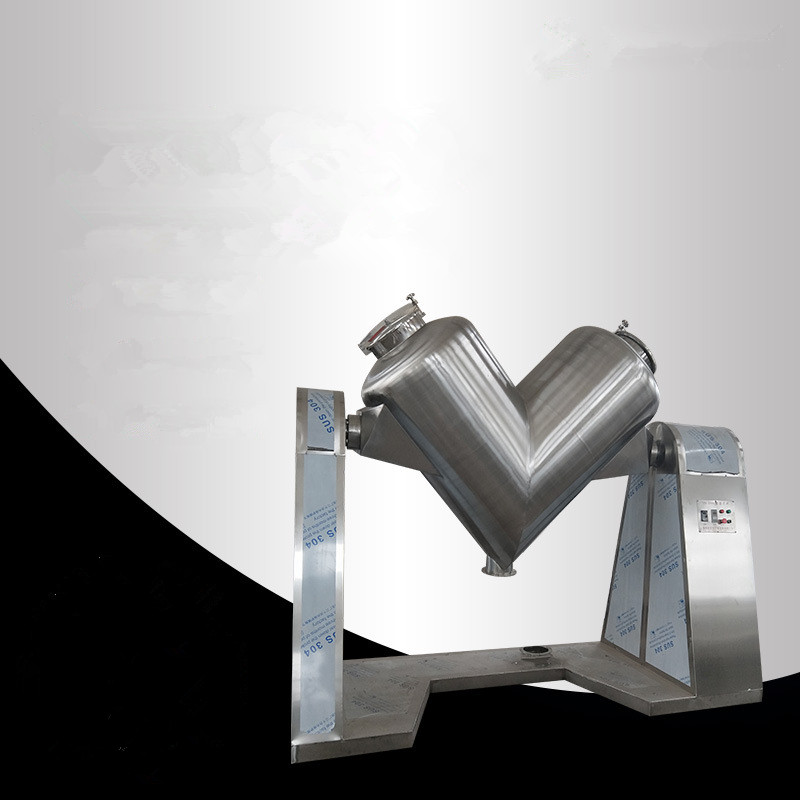

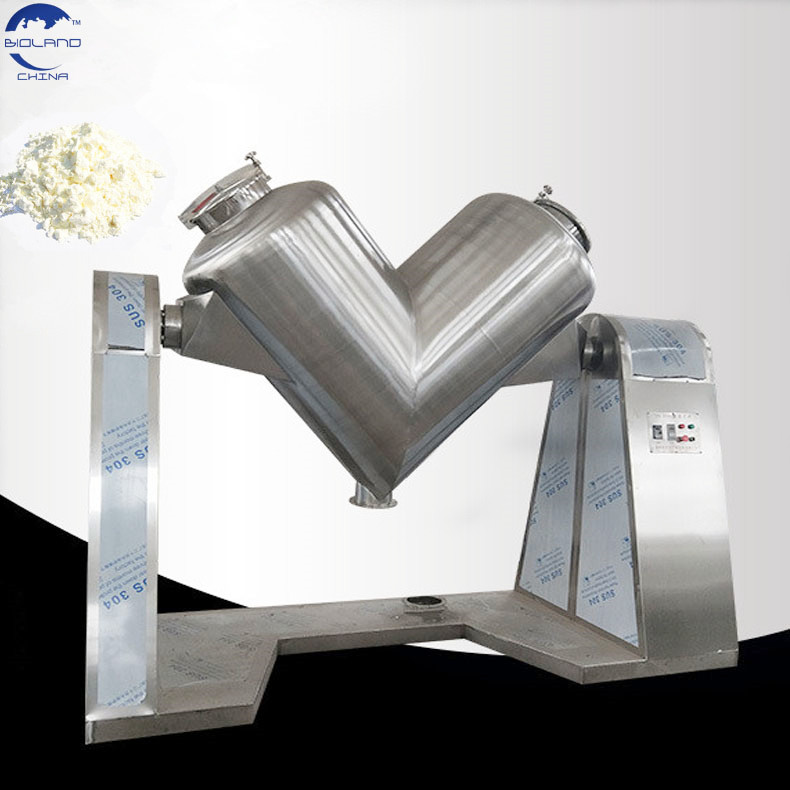

V-Type High-Efficiency Mixer

Product Description

The V-Type High-Efficiency Mixer machine, food dry powder, mix granular materials.

The unique structure of the mixing drum machine, mixing, high efficiency, no accumulation expected. The whole structure is simple, easy to operate. An outer surface and material contact parts are made of stainless steel, handsome in appearance, maintenance, easy to clean.

Principle and Structure

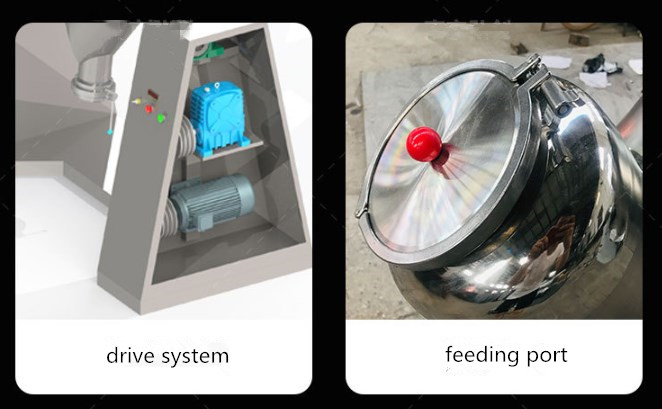

This V Type Dry Powder Mixer machine is equipped with a motor and reducer end, motor power transmitted through a belt gear reducer coupling pass through V-type barrel. So that V-shaped barrel of continuous operation, the material in the barrel to drive the barrel, down, left, right and mixed.

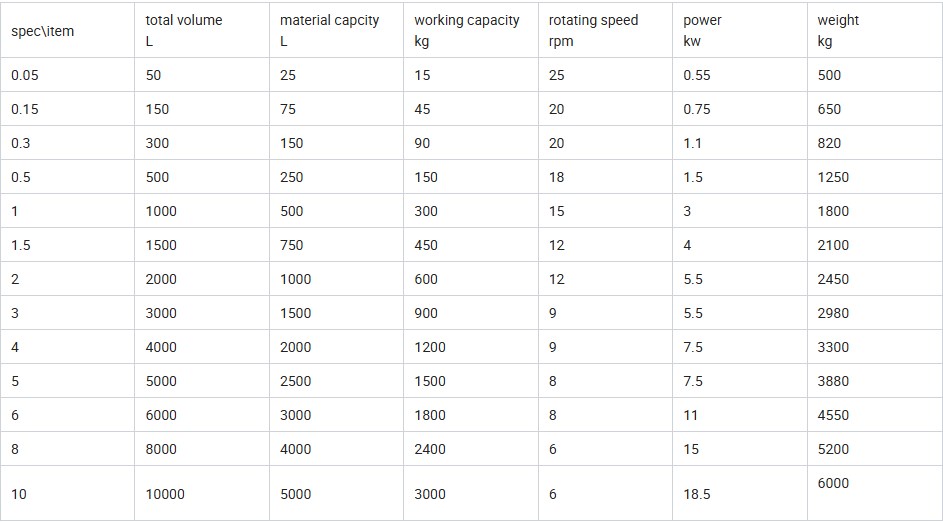

Technical parameter:

Application:

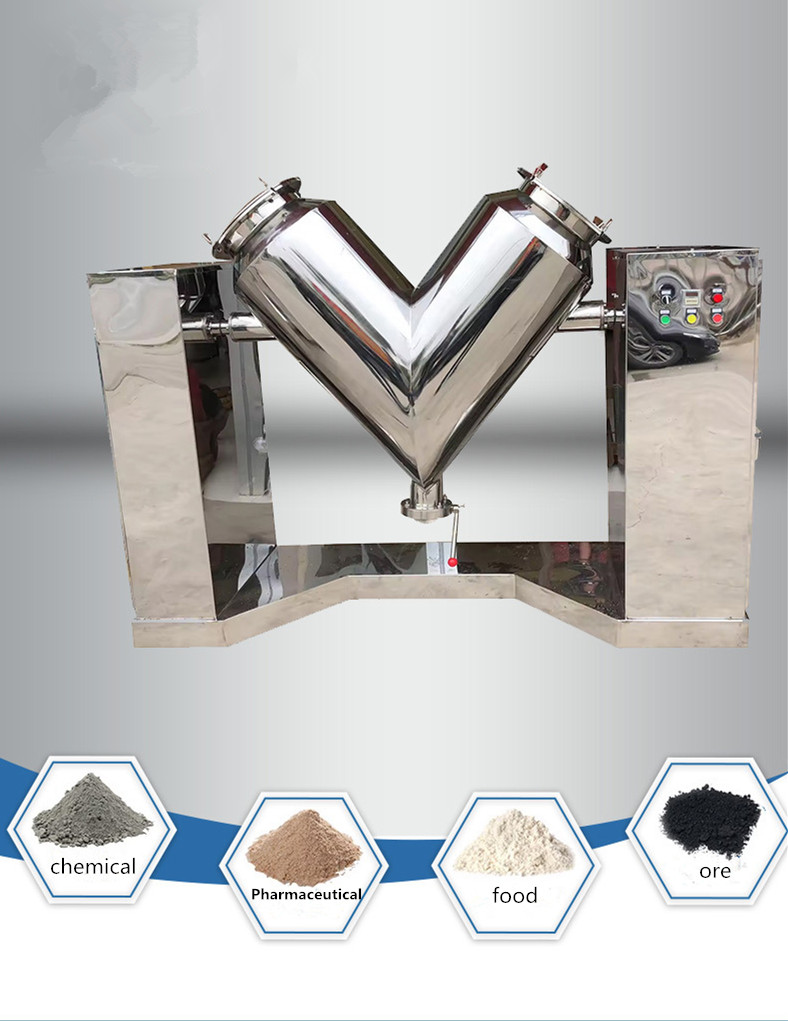

This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
