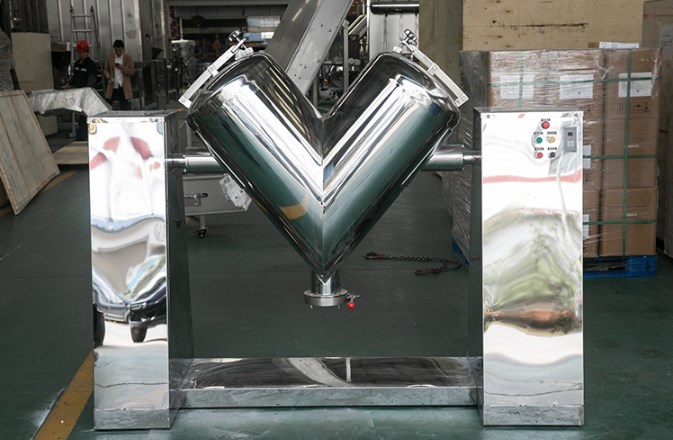

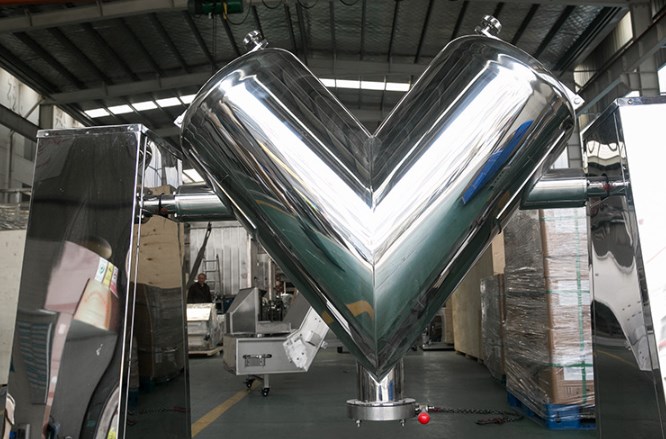

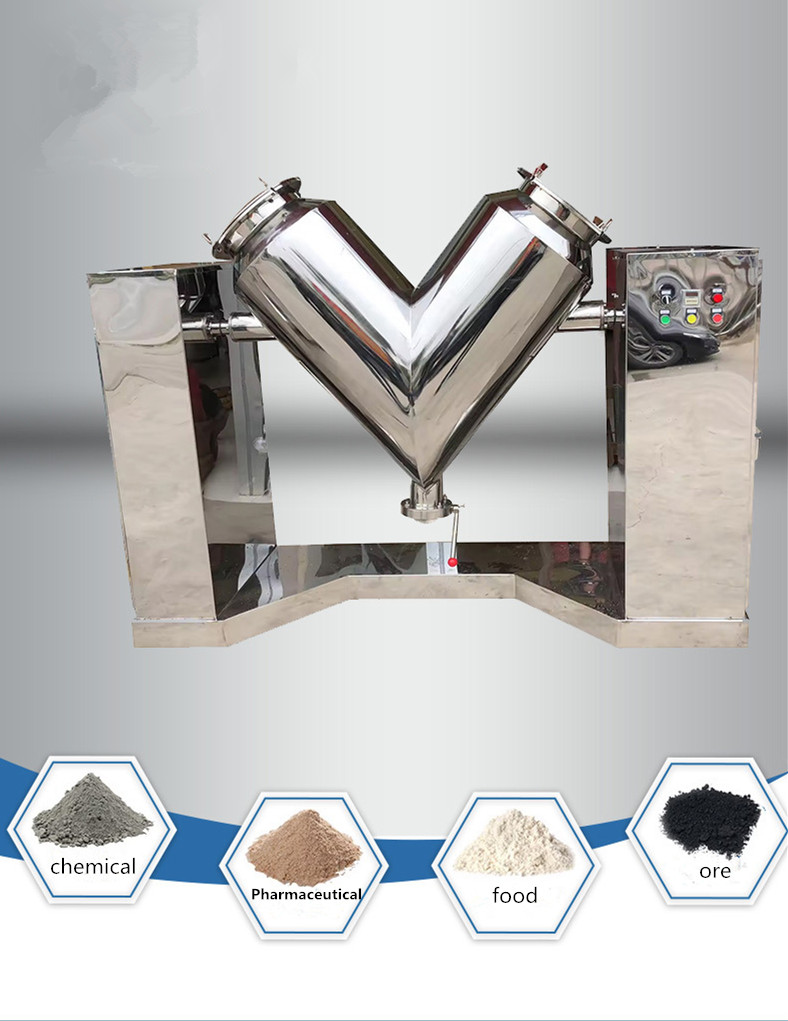

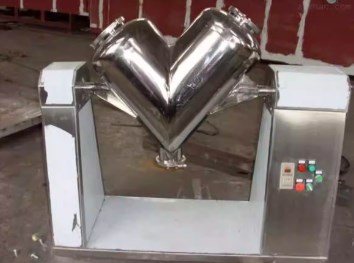

V Type Dry Powder Mixer Machine

Introduction:

This V Type Dry Powder Mixer machine adopts V type hopper to mix the dry powder fully and uniformly.
This V Type Dry Powder Mixer is made of stainless steel 304.
This mixing time and speed can be adjusted.
The V Type Dry Powder Mixer Machine is suitable for mixing of dry powder and granular materials in pharmaceutical, chemical, food, feed, ceramic, metallurgy and other industries.
Structure:
The V Type Dry Powder Mixer machine is composed of v-type asymmetric mixing hopper, speed-regulating motor, speed controller, time relay and other components.

This machine is designed for mixing two or more dry powder and granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on. The structure of this machine in unique. The mixing efficiency is high and no dead corner. It is made of stainless steel. The inner and outer wall is processed through polishing. Nice appearance. Mixture uniform. The scope of application is wide. The forced stirrer can also be equipped, according to request of client, to meet the requirements of raw materials that contain pretty fine powder, cake and certain moist stuff.

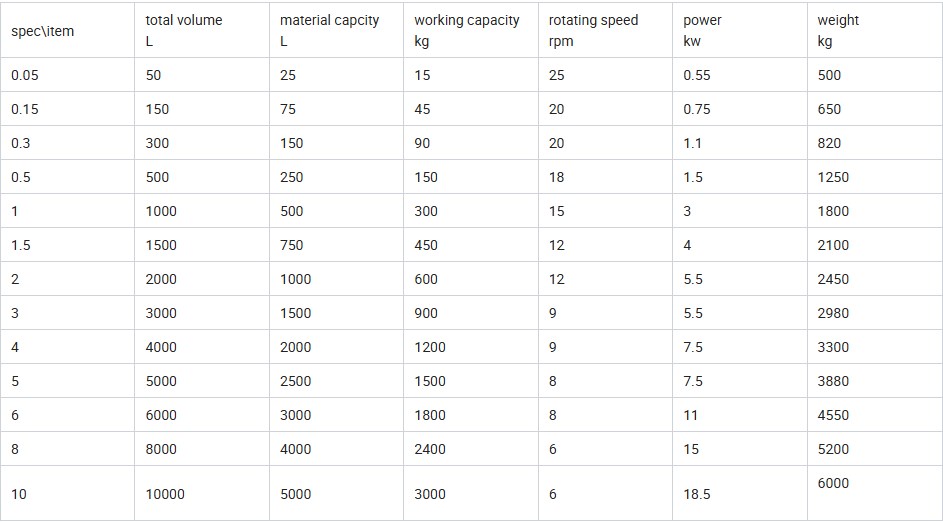

Main Technical Data

Application:
This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
