Factory Sales Palm Oil Flat Filter Extractor Hanging Bag Centrifuge Separator

Product Description

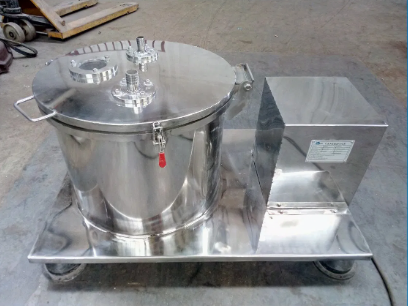

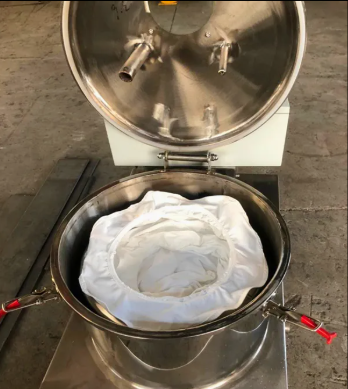

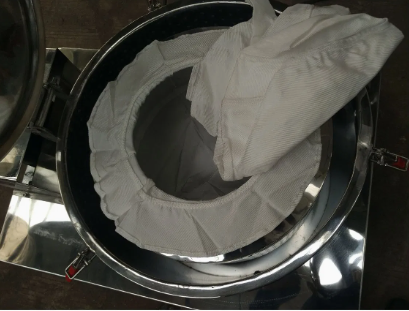

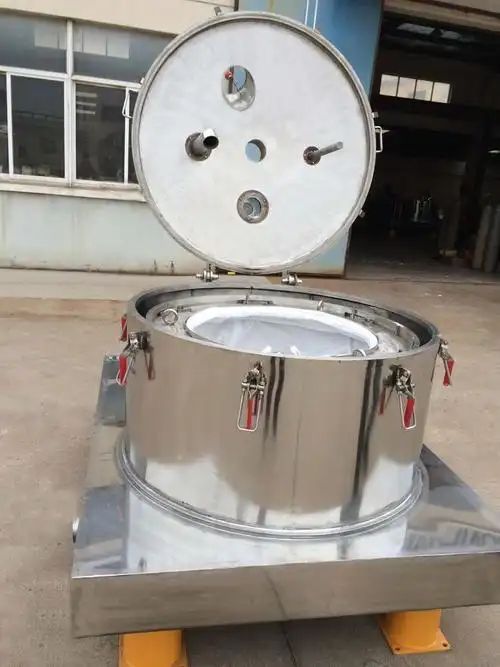

The flat plate Palm Oil plate Filter centrifuge Extractor is also known as flat plate lifting bag, hanging bag centrifuge. It is one of our three types of flat plate centrifuge. It is also a 2 phase solid liquid separation centrifuge machine, the bag inside the bowl is as the filter of raw material. By hanging the bag to achieve the solid part discharge after separation.

Product Features:

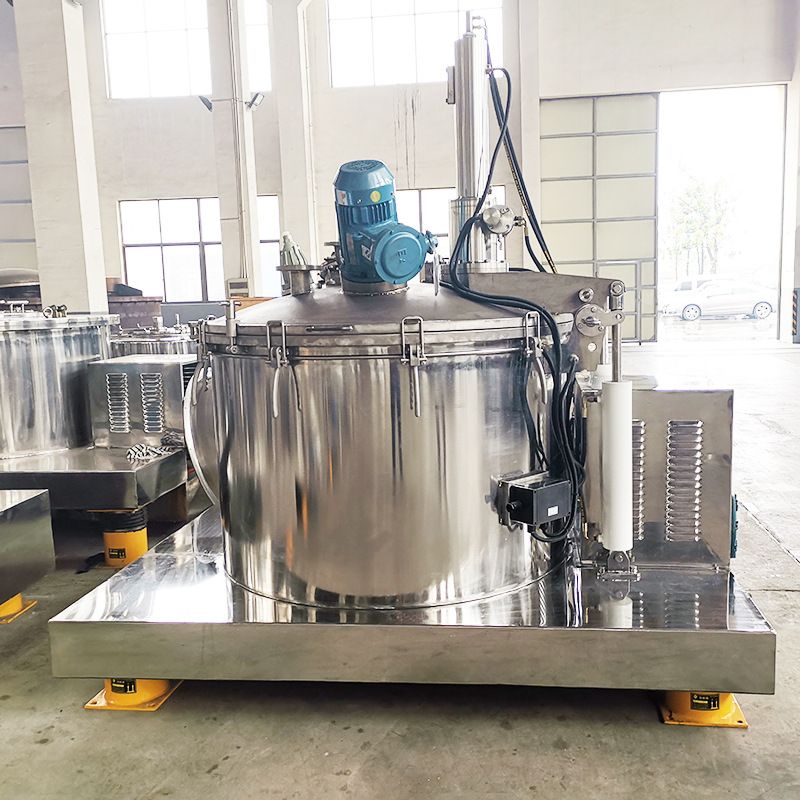

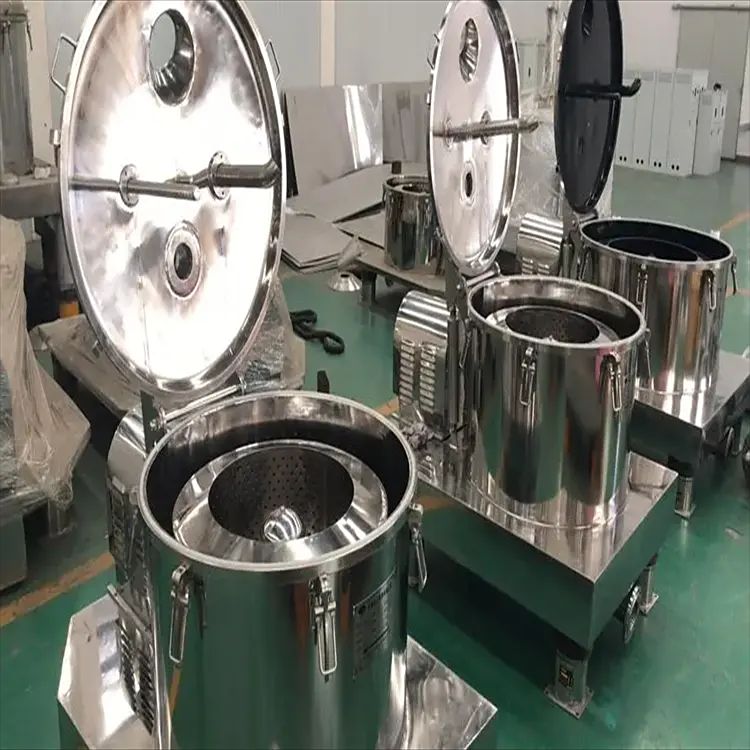

The Flat Bag Centrifuge or Palm Oil plate Filter centrifuge Extractor is a closed structure filtration equipment, which is composed of driving device, body, casing, drum, hanging bag, brake device, clutch and other components. The materials are added into the drum from the upper part. Under the action of centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine. The solid phase is trapped in the drum. After the machine is stopped, the liquid blocking plate and the filter bag are lifted out together to the designated place place to unload.

Features and Advantages:

1. Frequency conversion control is adopted to ensure smooth start and adjustable separation factor.

2. It has low labor intensity and high work efficiency.

3. The structure design is reasonable, and the sanitary dead angle is effectively eliminated. The transition of structural parts is smooth, and the surface is polished. The external structural parts, fasteners and drum are made of stainless steel. The shell is flip type, which can thoroughly clean the interlayer space between centrifuge shell and drum.

4.The frame and the casing are welded as a whole with high bearing strength.

5. The frame is of flat structure, which reduces thecenter of gravity of the machine, and the installation space is smaller. The flat frame can be used as an operation platform,which is more convenient to operate.

6. Equipped with liquid damping shock absorber, it can eliminate vibration more effectively and simplify daily maintenance.

7. The shell cover is provided with a feeding pipe, a washing pipe, an observation mirror and a lighting hole.

8. According to the actual situation, the online cleaning system can be selected to clean the inner wall of the centrifuge shell, the inner and outer surface of the drum, the surface of the liquid collecting tank and other invisible parts of the centrifuge, which meets the GMP specification.

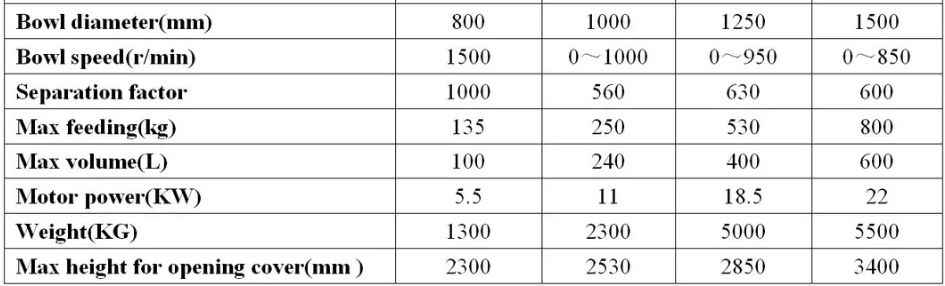

Product Parameters

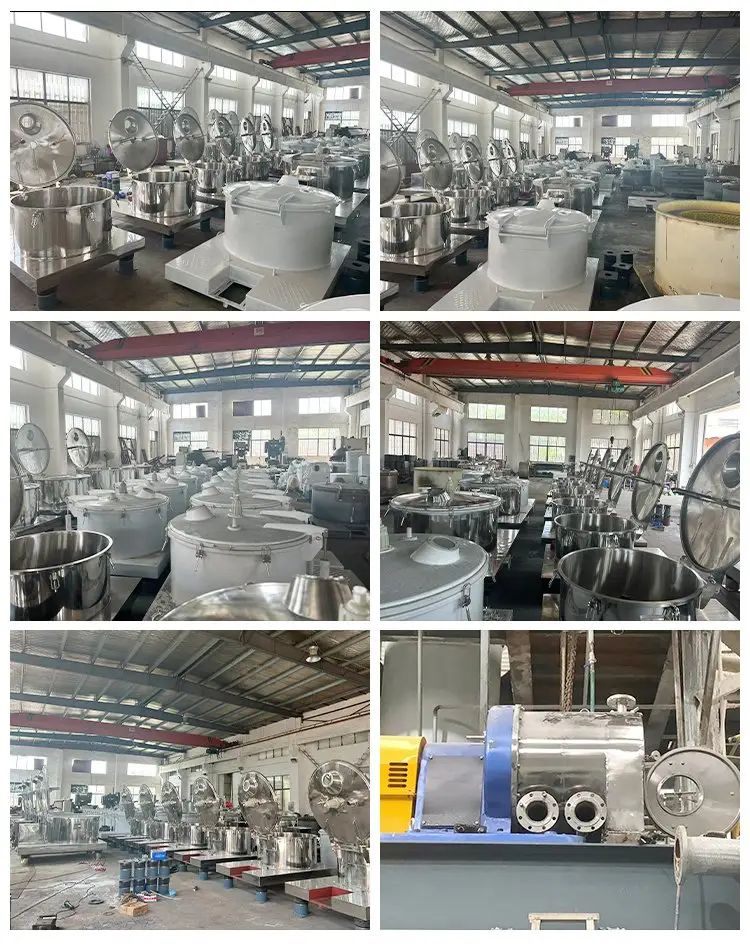

We are a factory specialized in producing centrifuges. If the following models do not meet your process requirements, please feel free to contact us and send you other more suitable solutions.

Packaging & Shipping
