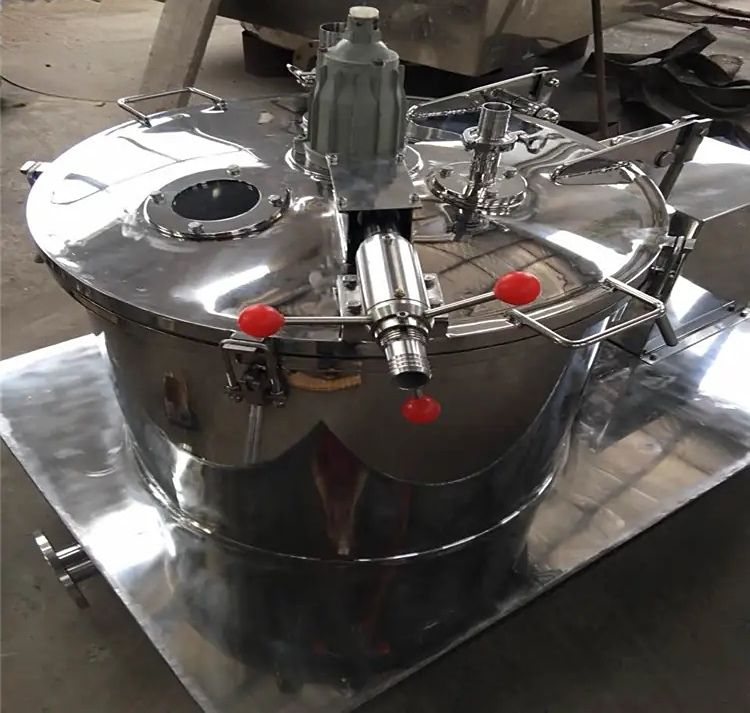

solid liquid centrifugal separation machine

Product Description

solid liquid centrifugal separation machine basket centrifuges is mainly used for data acquisition and analysis of various types of research machinery, universities, corporate laboratories, pilot phase. By focusing on the analysis and comparison of the various stages of adaptation and separation of materials data, convenience and mass production in the pilot phase of the production and application selection.
The solid liquid centrifugal separation machine looks, compact and flexible, can be placed directly on the table to operate, with material contact parts can be used for production of various materials or spray, in order to meet the needs of the experiment.
solid liquid centrifugal separation machine ,Its working principle is by accelerating the centrifugal force, so that the particle sedimentation rate significantly faster, and through the filter media, such as cloth and other separation work.

Main features

1,Inverter start-up, smooth starting, adjustable relative centrifugal force.

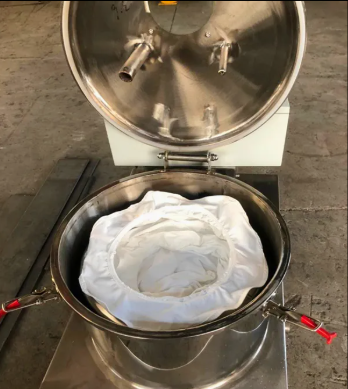

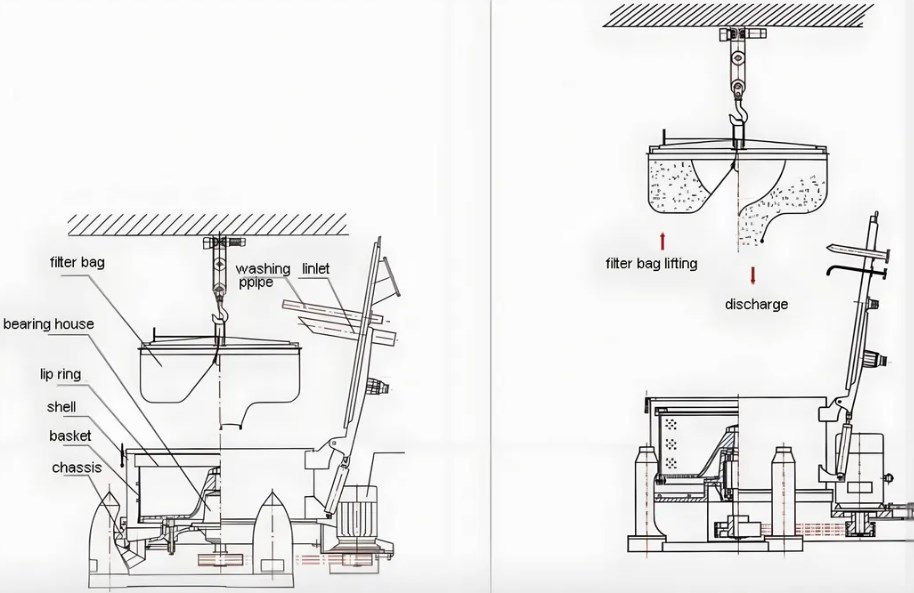

2,Discharge cake by lifting out filter cloth is highly efficient with low labour intensity; No damage to the particles; Wide range of applications.

3,Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.

4,Overall welding structure between the base and the case ensures high carrying strength.

5,Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.

 6,Liquid-damping vibration isolators, simplify the routine maintenance.

7,Big hinged cover, feed pipe, wash pipe, observation glass and light.

 8,Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.

9,Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is for anti-explosion applied to poisonous, flammable and explosive environment.

10,Equipped with hydraulic suspension arms with external fully-stainless steel surface (optional), which is easy for discharging and complies with the sanitation requirements.

1. solid liquid centrifugal separation machine basket centrifugest adopts plate and high viscosity damper shock absorber, no need of concete foundration, easy to operation.

2. The drum, housing and foundation all with polish process, all fasten parts are stainless steel, and seal parts are silicone rubbers.

3. The whole machine is in the line with the GMP requirments.

4. This good price laboratory mini centrifuge with good seal, explosive-proof and cleaness.

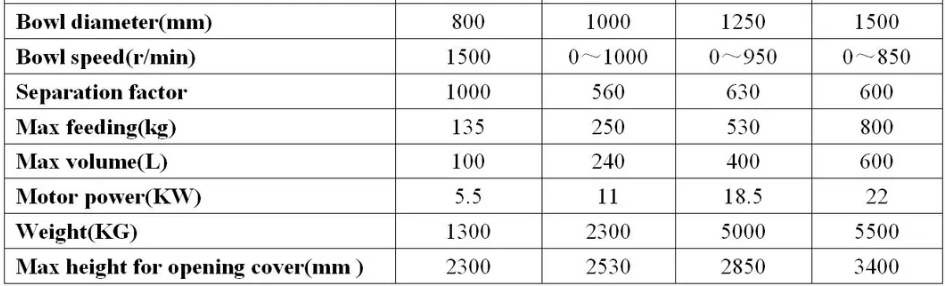

Parameters

solid liquid centrifugal separation machine Can be widely used in chemical, light industry, food, textile and other industries.
