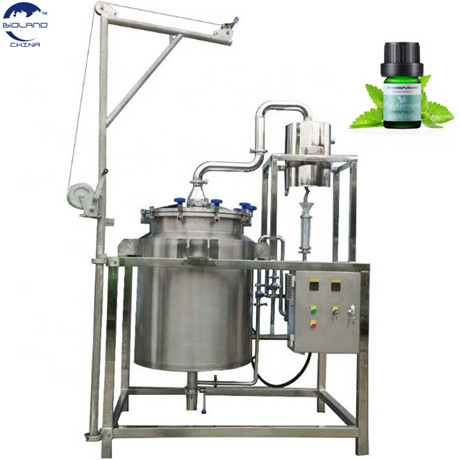

500L 1000L Plant & Flower steam distiller essential oil distillation equipment

Product Description

500L 1000L Plant & Flower  steam distiller essential oil distillation equipment is suitable for the extraction of various flowers and leaves which contain essential oil. It adopts water vapor distillation apparatus for water distillation method and water proof distillation method, so the extraction of plant volatile component is effectively, this equipment is suitable for enterprises to set up production near the plant origin place. The equipment is new, multifunctional and multipurpose plant essential oil extraction unit. the equipment can collect the plant essential oil, aromatic plants, and other effective ingredients efficiently.

Features

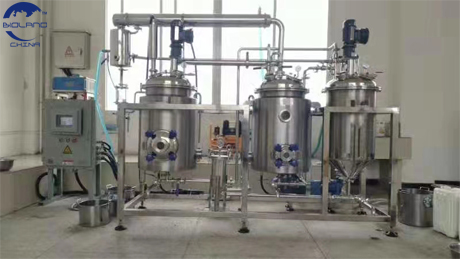

1.500L 1000L  steam distiller essential oil distillation equipment is composed of distillation kettle, tubular heater, evaporator, condenser, oil separator, etc. There is no steam heating unit, and a heat transfer oil heating system can be added.
2. The material is mainly composed of 304/316 or better food-grade copper material;
3. The copper material has a better quality preservation effect and urging function for hydrosol and essential oil;
4. The heating form mainly includes electric heating or gas or steam heating.

Technical description

Working processing

Distillation method of 500L 1000L Plant & Flower  steam distiller essential oil distillation equipment: Distillation methods are generally divided into two methods: "Steam Distillation" and "Water Distillation". It is the most commonly used method for extracting essential oils, and 95% of essential oils are made of It is extracted by distillation. During steam distillation, the plant material is mostly placed on the sieve frame in the distiller, and through the passage of high-pressure steam, the essential oils contained in the plant glands are released at the same time and evaporated into the water vapor. After the mixed gas enters the cooling system along the conduit, the vapor condenses back to the liquid state, and then separates into essential oil and flower water according to the difference in specific gravity and density. The pressure and temperature used in this method are relatively low, so it is especially suitable for orange Heat-sensitive essential oils like flower, rose rose, jasmine, carnation, clove, mimosa, rosemary, etc

Usage Scope

500L 1000L Plant & Flower  steam distiller essential oil distillation equipment is widely used in the extraction of conventional aroma essential oils from flowers, grass, trees, leaves, slices, roots, seeds etc. materials.
