Professional mugwort essential oil hydrosol extraction equipment for sale

mugwort essential oil extractor,hydrosol extraction machine

Plant essential oils are extracted from the flowers, leaves, roots, bark, fruits, seeds, resins, and other aromatic substances unique to plants. They are extracted by distillation and pressing from herbaceous plants such as roses, camphor trees, levonorgestrel, dextronorgestrel, ginger, fragrant trees such as Angelica sinensis, star anise, mountain goldenrod, basil, bay laurel, white clover, camphor parsley, cinnamon, cypress, chrysanthemum, Ceylon cinnamon, Salvia miltiorrhiza, lilac, coriander and dill, eucalyptus, fennel, frankincense, geranium, juniper, lavender, citrus, lemongrass, magnolia, nutmeg, citrus, and citrus Niu Zhi Dutch parsley, orchid parsley, mint, pine, Rosa genus, rosemary, sandalwood, white pearl tree wait

working principle of mugwort essential oil extractor,hydrosol extraction machine

The equipment adopts direct steam heating to recover solvents and volatile oils. The recovery process is cooled by a condenser to recover solvents and volatile oils, with high recovery efficiency,
Through our company's dedicated oil-water separator, made of transparent borosilicate glass, the aromatic oil layering effect is clearly visible, making oil extraction convenient and simple.

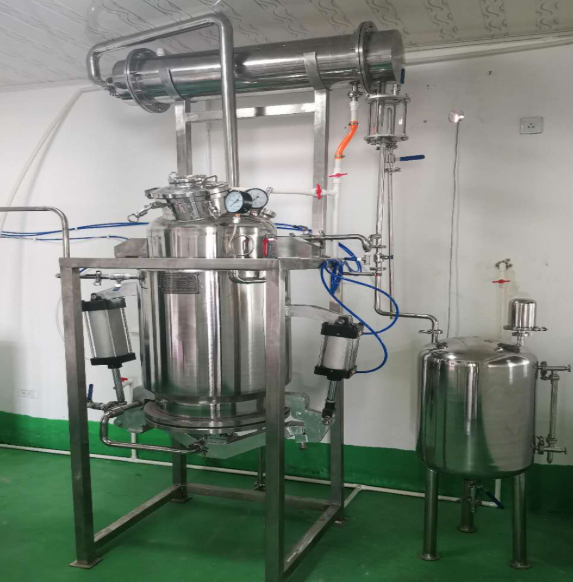

Main configuration of mugwort essential oil hydrosol extraction equipment
The extraction tank is a conical shape with four ear suspended supports. The upper head is equipped with a quick opening feeding port, the secondary steam outlet is equipped with a demister device, and the bottom is a diameter pneumatic slag discharge door (optional). It is equipped with two cylinders and a safety interlock device. It is equipped with a screen shaped filtering device, and the screen mesh is supported by a sun disc and a punching plate to prevent deformation.
The material of the extraction tank is stainless steel SUS304, which is suitable for specialized materials that have not been refined,
The full volume of the extraction tank is 1-10m3, the tank is under normal pressure, and the working pressure of the cylinder is 0.7MPa. The aging resistant pearl wool or high temperature resistant polyurethane foam is used for insulation, and the thickness of the insulation layer δ=50mm. Multi program tube condenser, cooler, high-efficiency oil-water separator equipment. The inner wall of the container is mirror polished, and the outer surface is mirror or matte treated, in compliance with GMP and QS certification requirements
