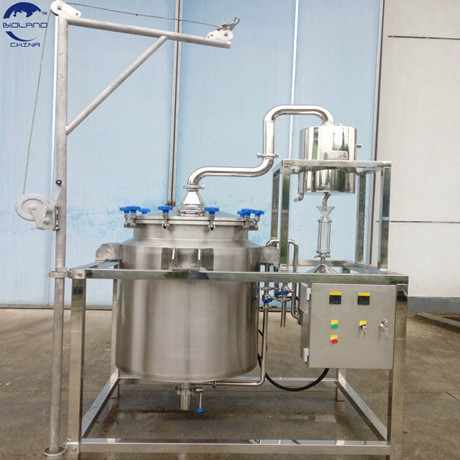

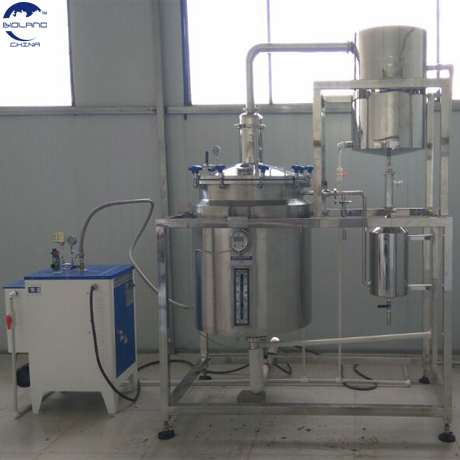

100L Lavender Essential Oil Extraction Machine

Chinese Traditional Plants Lavender Essential Oil Extraction Machine for Herb

100L 200L Steam Distillation Osmanthus Lavender Essential Oil Making Extraction Machine

Send Email

Product Detail

Product Description

The Lavender Essential Oil Extraction Machine is a specialized equipment designed for the efficient extraction of essential oils from plants such as flowers, leaves, roots, seeds, and peels. It typically utilizes steam distillation or hydro-distillation to break down plant cell walls and release volatile oils into a condenser, where they are separated and collected. This system is widely used in the aromatherapy, cosmetics, pharmaceutical, and food industries due to its ability to preserve the purity, fragrance, and active compounds of essential oils.

The extraction of lavender essential oil mainly relies on steam distillation (due to its heat sensitive components being easily oxidized, supercritical CO ₂ is efficient but costly, and is often used in high-end small batches). 100L capacity Lavender Essential Oil Extraction Machine belongs to small and medium-sized production units, suitable for laboratory validation, small aromatherapy plants or cooperative initial processing, balancing efficiency and flexibility

Key Features

1.High Efficiency: Optimized structure for maximum oil yield and minimal energy consumption.

2.Multiple Extraction Modes: Supports steam distillation, hydro-distillation, and combined extraction.

3.Integrated Design: Combines distillation, condensation, oil-water separation, and collection in one unit.

4.Customizable Capacity: Available from lab-scale (5–50L) to industrial-scale (500–5000L+) models.

5.Easy Operation: PLC or digital control system with temperature and pressure monitoring.

6.Essential Oil + Hydrosol: Simultaneous extraction and separation of essential oil and floral water.

7.High Efficiency and Energy Saving：Indirect heating of thermal oil saves more than 40% energy compared to traditional direct heating, and shortens the extraction cycle to 2-3 hours (traditional heating takes 6 hours).The closed-loop steam recovery system reduces thermal energy loss.

8.Quality Assurance ：Low temperature distillation (≤ 100 ℃) preserves the heat sensitive components of lavender (such as linalool), and the purity of essential oil reaches 98%.Visualization process (glass components) ensures that the extraction process is controllable.

10.Easy to operate：Modular design supports quick disassembly and cleaning, complying with GMP hygiene standards.Automated control reduces manual intervention and allows for one click activation of the distillation program.

11.Multi-function adapter：Compatible with the extraction of other aromatic plants such as roses and rosemary, and can be used for multiple purposes by adjusting parameters.

12.Safety and Environmental Protection：The fully enclosed system avoids solvent pollution and wastewater discharge meets environmental standards.

Explosion proof design is suitable for the production of flammable essential oils.

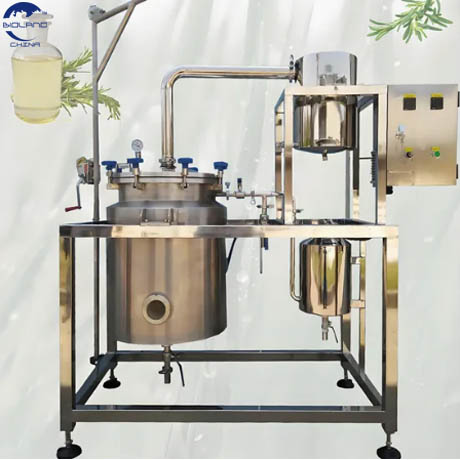

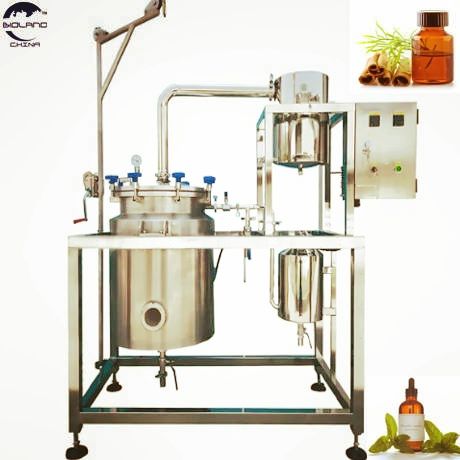

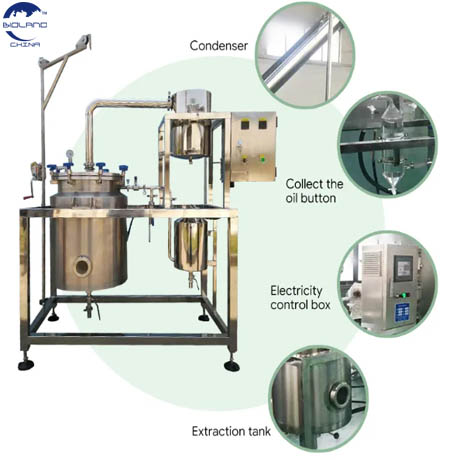

Equipment structure
1.distillation system
Distillation tank: A 100L capacity stainless steel tank (made of SUS304 material) with a built-in jacket type material basket for easy steam penetration and residue cleaning.
Heating module: Thermal oil circulation system or electric heating device, temperature control accuracy ± 2 ℃.
2.condensation system
Condenser: High boron glass or stainless steel coil structure, supporting rapid cooling (water temperature ≤ 25 ℃).
Oil water separator: Transparent glass window design, real-time monitoring of separation status.
3.Control and Assistance
Automated control: touch screen operation interface, integrated temperature, pressure, and liquid level sensors.
Safety protection: pressure valve (0.3MPa), explosion-proof device and emergency

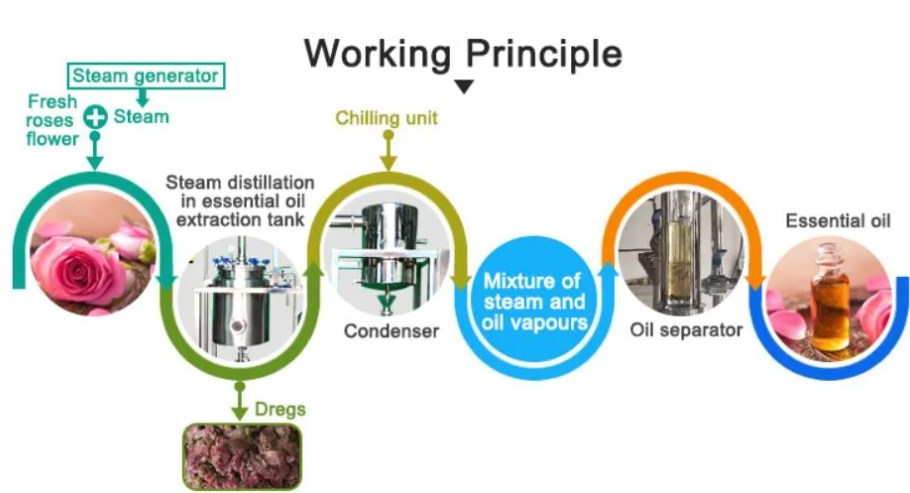

process flow
Raw material pretreatment
After cleaning and crushing the lavender flower clusters, they are placed in the material basket of the distillation tank to ensure even distribution of the material and sufficient contact with steam.
distillation extraction
Heating method: Indirect heating with thermal oil (or electric heating/steam boiler) is used to quickly raise the temperature to 100 ℃ under safe conditions.
Distillation mode: Water vapor penetrates the material through a jacketed distillation structure, causing essential oil components to evaporate with the vapor.
Condensation and Separation
The mixed gas of steam and essential oil enters the condenser (coil or tube type) and is rapidly cooled into an oil-water mixture through cold water circulation.
The mixed liquid flows into the oil-water separator and automatically separates into layers based on the density difference between essential oil and water (light oil floats up, heavy oil sinks down).
Collection and Purification
The separated essential oil enters the collection tank, and the remaining hydrosol (flower water) can be reused; Some devices support further purification through vacuum concentration.
Waste residue treatment
The residue after distillation is discharged through a quick opening discharge port, and the jacket basket structure avoids blockage

Usage scope:

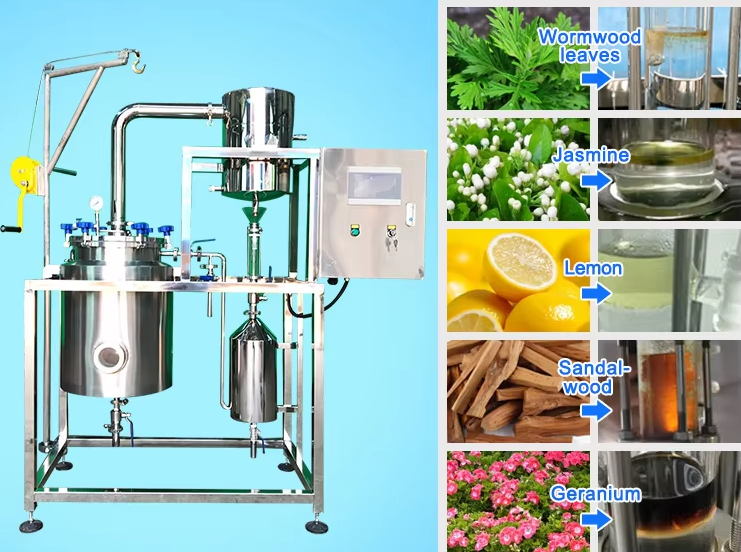

Essential Oil Extraction Machine / Steam Distill Lavender Chamomile Mint Rose Flowers Essential Oil Extraction Machine means it is using the steam distill extraction machine equipment to extract the aroma essential oil from the herbal raw material like the flowers Rose, Osmanthus fragrans, wild chrysanthemum, lavender, wormwood, Chimonanthus praecox, Sophora japonica, mint, Jasmine,chamomile etc.
