High Speed Centrifuge Spray Dryer Atomizer Xh-5 Xh-10

Product Description

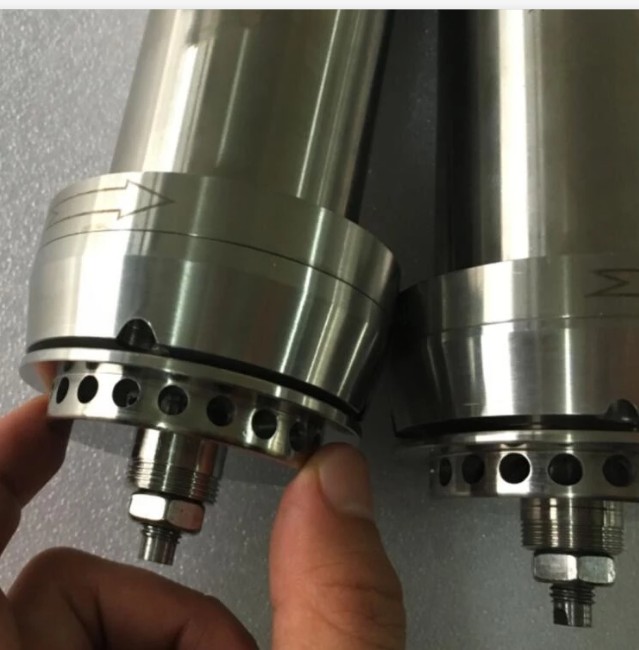

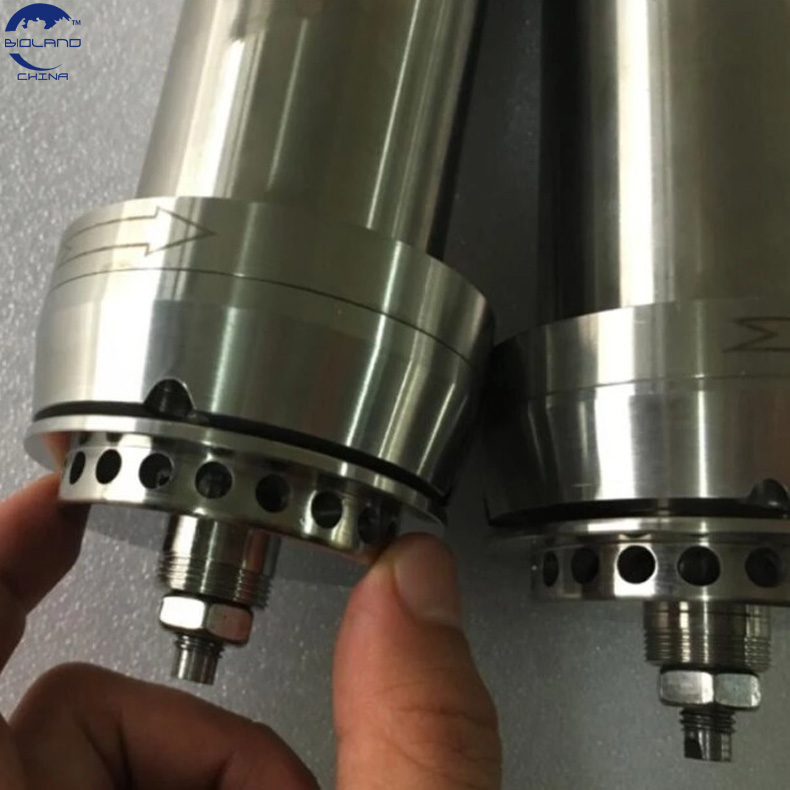

High-speed centrifugal atomizer is high-speed centrifugal spray drying heart, including high-speed motor, spindle, nylon block, large coupling plate, bearings and spray disk, etc., by connecting the motor shaft couplings and soft nylon block nebulizer spindle spindle motor vibration and atomizer spindle and do not pass, the nebulizer for flexible shaft spindle rotating at high speed when the resonance region, nebulizer spindle will rotate as stable as gyro, high-speed motor is provided with a water-cooled jacket and spray lubrication, nebulizer spindle lubricating oil circulation. Which has a higher speed, smooth running, small vibration, long life, simple operation, and can be widely used in high-speed spray dryer, the liquid spray dried into a powder material is applied to the finished product, and other industrial fields.

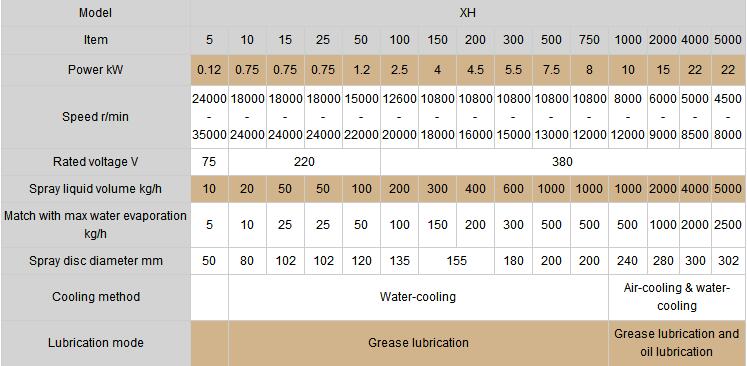

technical parameters

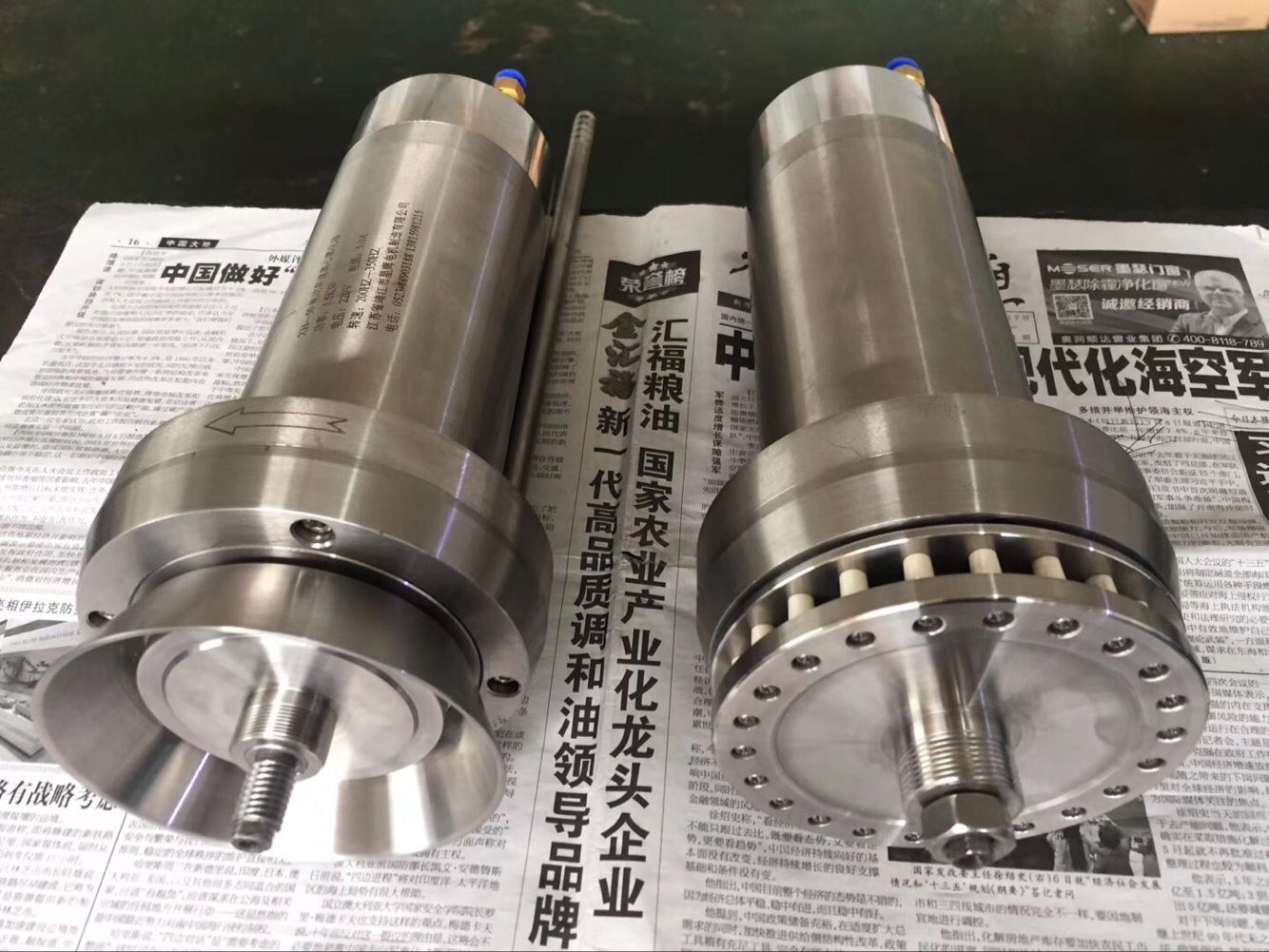

High-speed centrifugal atomizer is a core component of centrifugal spray dryer; Our company specializes in the production of high-speed centrifugal atomizer, elected on the basis of absorbing foreign technology, based on independent research, computing, manufacturing, won the praise of domestic households . After all the gear tooth grinding, precision in 5 above, transmission parts have been balancing test, more accuracy G2.5 level, idling vibration is less than 5un, vibration load value of less than 15um, trouble-free operation time of up to 7000 hours, Large atomizer with oil temperature, oil pressure, oil level, put blocking materials, such as testing, enabling the atomizer more safe and reliable operation, to achieve the atomizer operation monitoring in the operating room; centrifugal atomizer on plate according to the characteristics of different materials can be tailored to different specifications, different materials, different shapes of centrifugal disk;
