CENTRIFUGAL MIXING SPRAY NOZZLE FOR SPRAY DRYER MACHINE

Product Description

A nozzle tip assembly comprises a nozzle housing and a break-up insert. The nozzle assembly is adapted for receiving multiple pre-cursor fluids from multiple lumen. The pre-cursor fluids are kept substantially separate and forced around the break-up insert into a channel formed between the insert and the nozzle housing. Fluid is forced into fluted channels on a distal end of the break-up insert into a swirl chamber where mixing occurs prior to being expelled through an exit orifice in the nozzle housing.

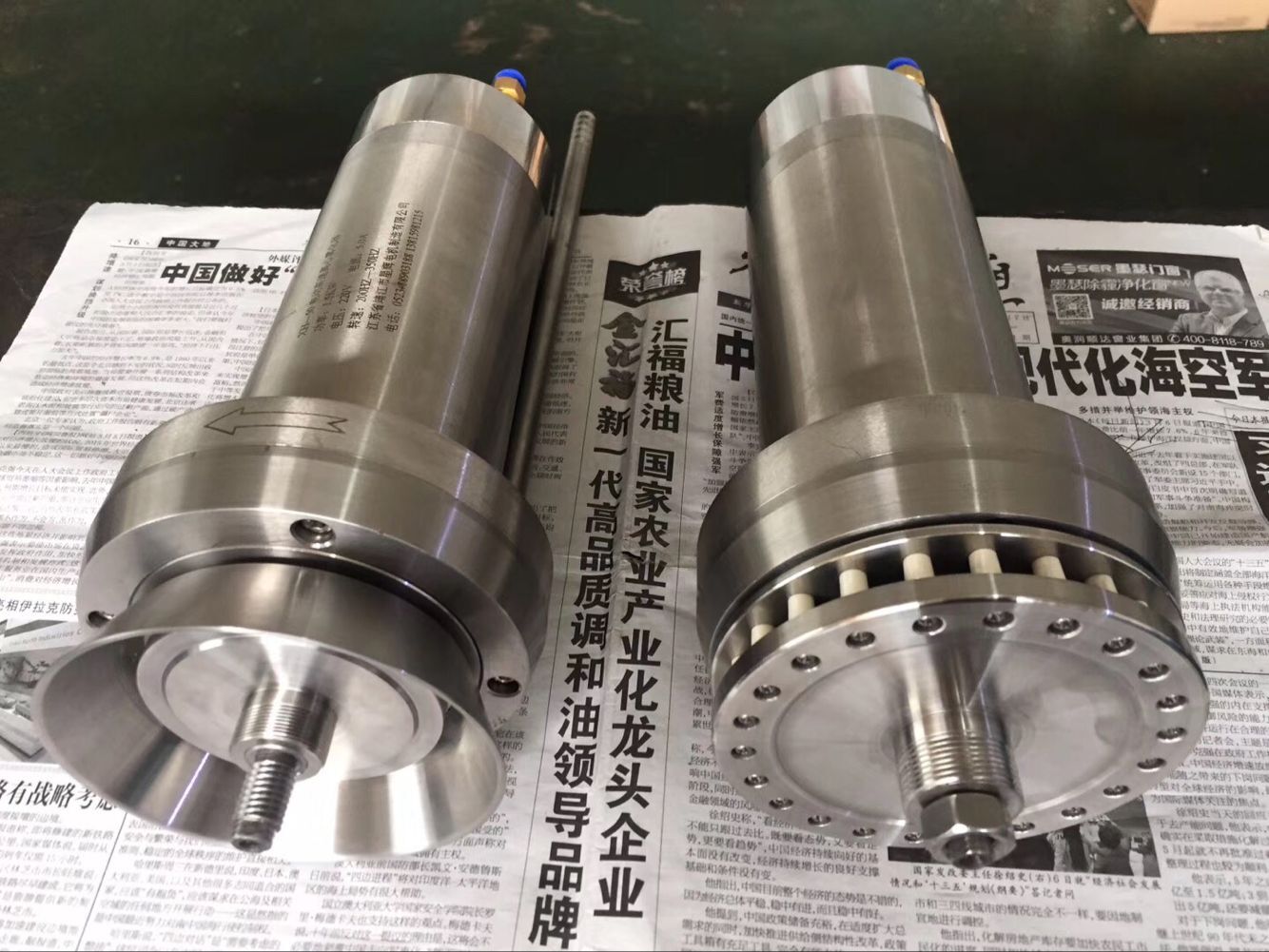

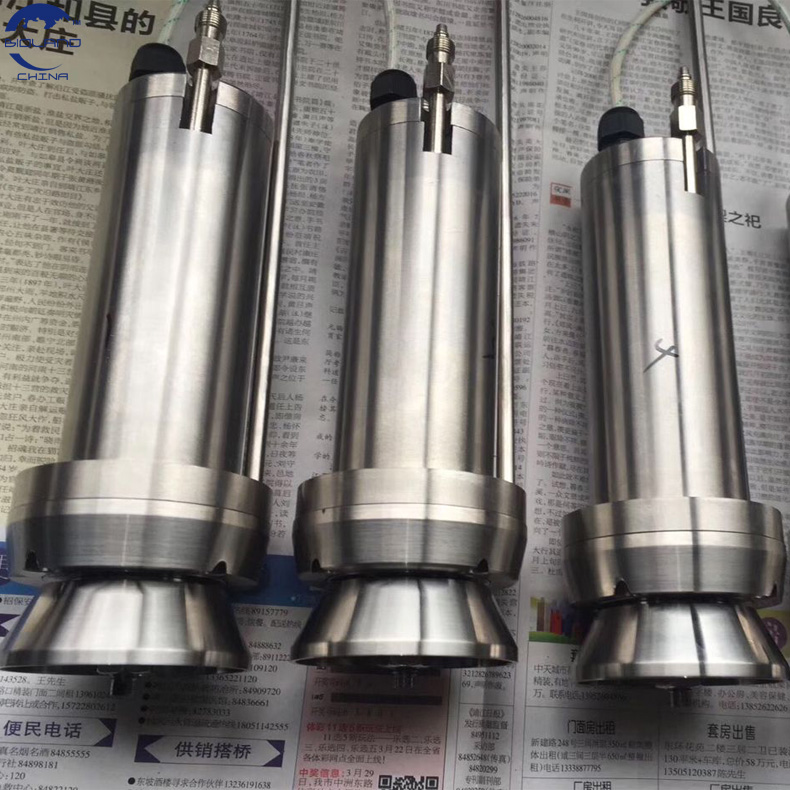

High-speed centrifugal atomizer is high-speed centrifugal spray drying heart, including high-speed motor, spindle, nylon block, large coupling plate, bearings and spray disk, etc., by connecting the motor shaft couplings and soft nylon block nebulizer spindle spindle motor vibration and atomizer spindle and do not pass, the nebulizer for flexible shaft spindle rotating at high speed when the resonance region, nebulizer spindle will rotate as stable as gyro, high-speed motor is provided with a water-cooled jacket and spray lubrication, nebulizer spindle lubricating oil circulation. Which has a higher speed, smooth running, small vibration, long life, simple operation, and can be widely used in high-speed spray dryer, the liquid spray dried into a powder material is applied to the finished product, and other industrial fields.

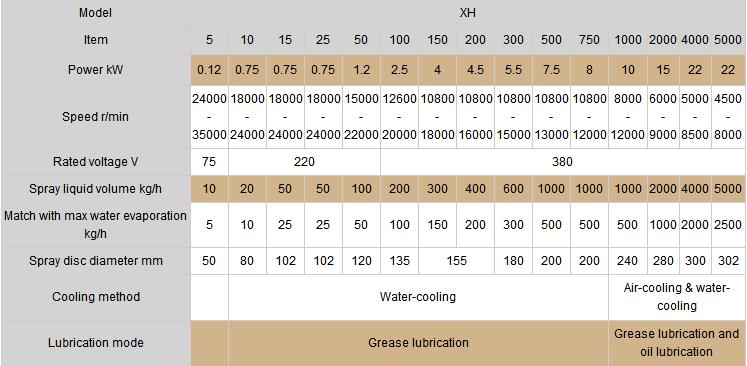

Centrifugal Atomizer Technical Parameter

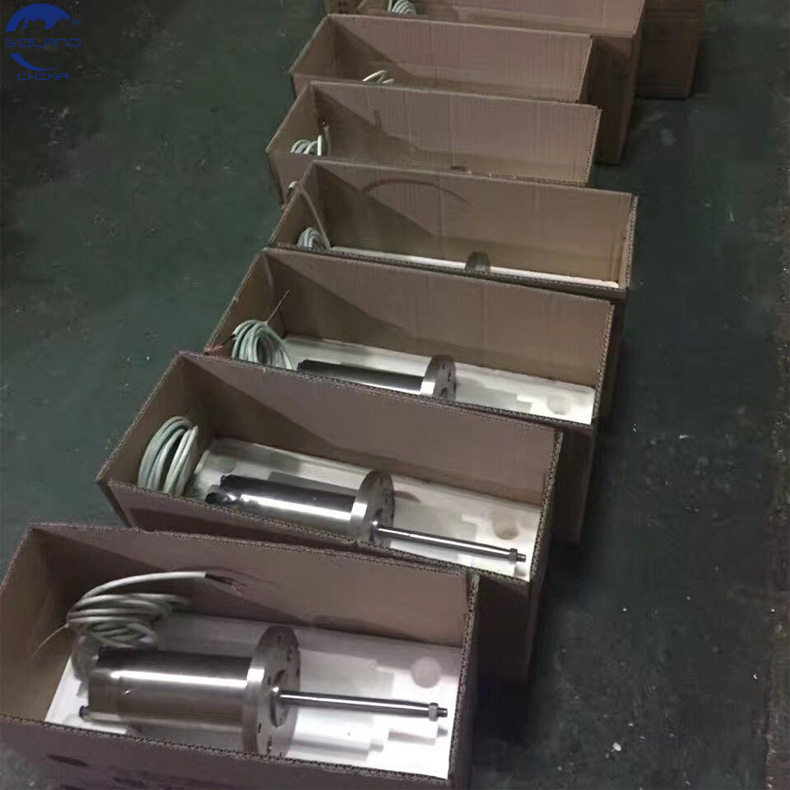

Packing & Delivery
