Electric type centrifugal Rotary Atomizer

Rotary Atomizer Description

High-speed centrifugal atomizer is a core component of centrifugal spray dryer; Our company specializes in the production of high-speed centrifugal atomizer, elected on the basis of absorbing foreign technology, based on independent research, computing, manufacturing, won the praise of domestic households. We could provide different specifications, different materials, different shapes of cntrifugal disk;

Rotary Atomizer Working Principle

After the filtering and heating, the air enters into the air distributor on the top of the drier. The hot air enters into the drying room in the spiral form and uniformly.

By passing through the high-speed centrifugal spray on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products.

The final products will be discharged continuously from the bottom of the drying tower and from the whirl separator. The waste gas will be discharged from blower.

The liquid material becomes very fine drops under the centrifugal force in the equipment, enlarging enormously the surface area of the material. It forms instantly the dried products once these drips contact with hot air. This process has advantages such as dry at high speed, high efficiency, easy operation, the output products keep the original quality, good fluidity, good solubility, high purity and environment friendly.

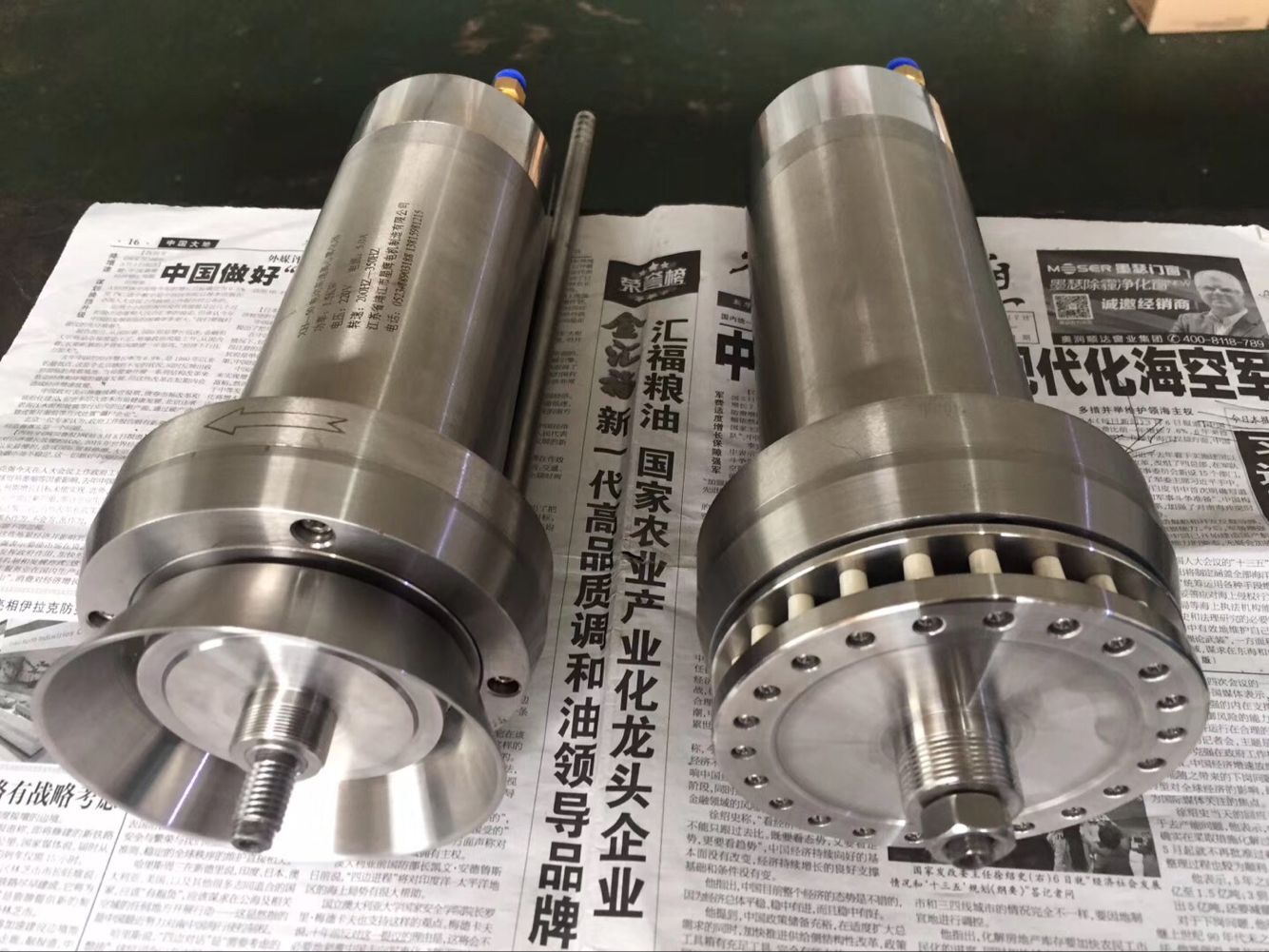

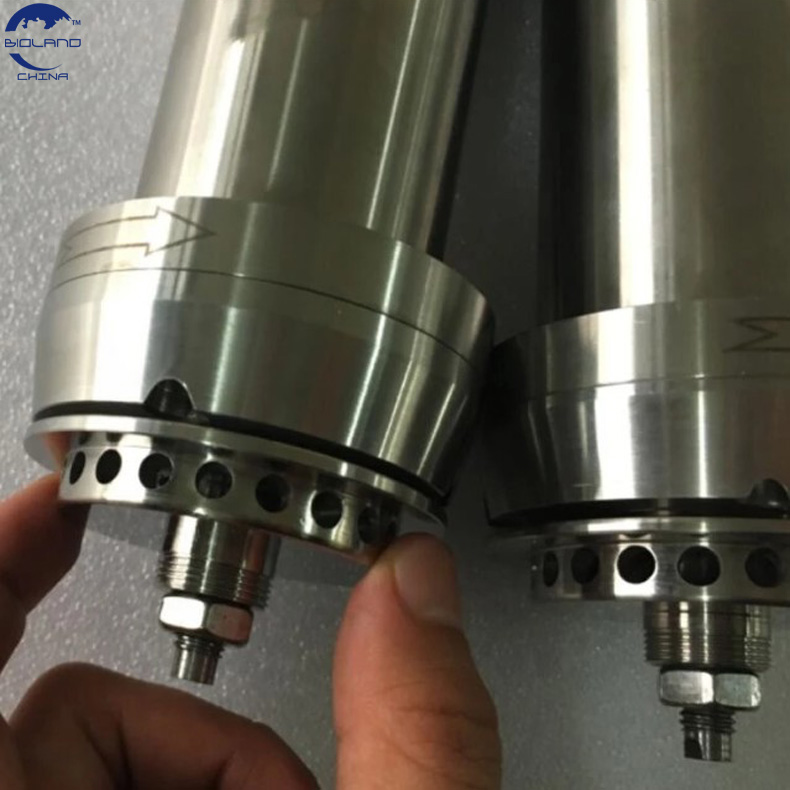

Electric type centrifugal atomizer
Electric high speed centrifugal atomizer is my company's own design, manufacture of mechanical and electrical products, power 250W-30KW, speed in 8000-40000 / min stepless speed regulation
1,Stepless speed control, according to the characteristics of the raw material, and choose the best speed
2,High speed motor directly driving spray disk, small vibration, uniform spray, low noise.
3,Power with the load on its own regulation, energy saving, low temperature rise, stable performance.
4,Compact in structure, small in size, light in weight, easy to operate, clean and maintain
5,Compound electric spray nozzle adopts water cooling, air cooling at the same time, and according to the need to choose the grease lubrication and oil lubrication, more
Suitable for high temperature environment, at the same time with the water, gas, over-current, over temperature alarm and other functions, more stable performance
