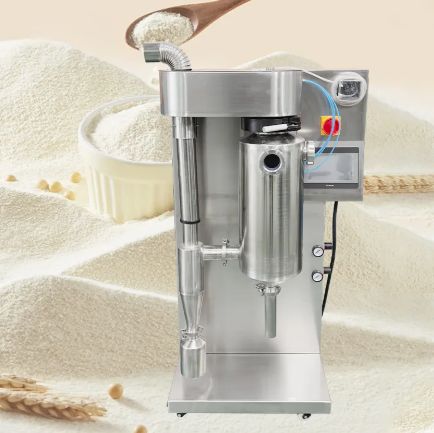

40-60c Low Temperature Vacuum Spray Dryer Machine for Heat Sensitive Material

Product Description

1.spray dryer food industry of Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic
pump speed / air volume/ needle frequency.
2. Fully automatic control: One-button startup, after setting the spray process parameters, the temperature reaches the
predetermined temperature, the peristaltic pump starts automatically, the operation animation is displayed on the touch screen,
and the operation process is clearly displayed;
3. Nozzle cleaner (through needle): When the nozzle is blocked, it automatically removes the blockage, and the frequency of the
needle can be adjusted by itself.
4. Shutdown protection function: When shutting down, the heater is above 60ºC and the fan cannot be turned off to ensure that the
equipment will not burn out due to misoperation (forcibly shutting off the fan).
5. Temperature control: using real-time PID constant temperature control technology, accurate temperature control in the whole
temperature zone, heating temperature control accuracy ±1ºC.
6. Finished product effect: The particle size of the finished product has a steeper normal distribution, uniform particles and good
fluidity.
7. Air compressor: built-in imported oil-free air compressor, low noise, less than 60db.

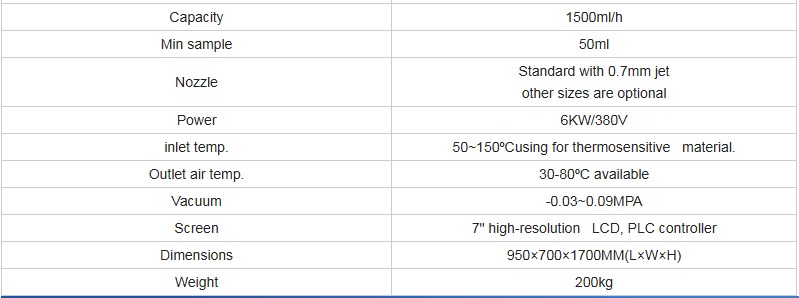

Product Paramenters

FEATURES
1. Spray dry at low temperature (50ºC) using for thermosensitive material.
2. 7" high-resolution LCD, human-oriented interface, Chinese and English menu, Optimize operation procedure, efficiency, flexibility, easy-going and easy learning.
3. Particle size with normal distribution.
4. Two fluid atomizing structure, made of SUS 316 Stainless steel. Easy operating.
5. To assure accurate temperature control and easy parameter adjusting.
6. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution, capacity: 300~1500ml/h.

Application

It has a wide spectrum of applicability to all solutions such as emulsions and suspensions. It is suitable for drying
heat-sensitive substances such as biological products, yeast, algae, etc.
