5L per hour Dry Wind Low Temperature Spray Drying Machine
5L Vacuum Spray Dryer for Heat-Sensitive Material
5L Laboratory Mini Vacuum Spray Dryer with Low Temperature herbal extract powder
Product Detail
Product Description
Dry Wind Spray Dryer is suitable for processing preparation of bacteriophage microcapsules, Protein feed, Creatinase, Yeast, Drosophila pupae, Lactitol, Mannitol, Graphene modified solution, Various traditional Chinese medicines, microcapsules, ACD, PF, TQB3720, collagen powder, etc.

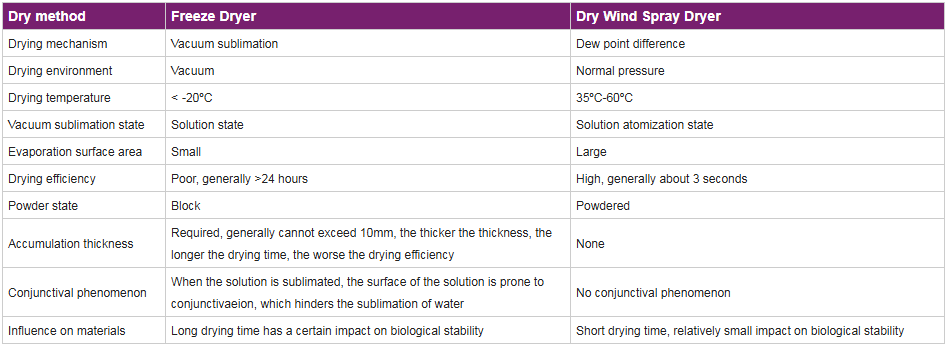

COMPARATION
Safety parameters
When the equipment is running, the noise level at the distance from the equipment operator (less than 1 meter) is below 75dB
There are obvious warning signs at dangerous parts
Comply with the requirements of equipment safety design specifications
- Entire spray drying experimental process can be completed in 50 ° C, greatly reduces the temperature of drying to solve the problems for spray drying of heat-sensitive materials.
- Color touch-screen operation: PID temperature control heating temperature, heating accuracy reach ± 1 °C., peristaltic pump feed rate can be adjusted at any time.
- Particle diameter of powder in normal distribution, good liquidity with low noise, in line with laboratories noise standards;
- Structure of two-fluid atomizer spray, made of high quality stainless steel materials, precision manufacturing, compact design without ancillary equipment, easy to use.
- Feed rate can be adjusted by feeding peristaltic pump, rated capacity 5000mL/h
- Spray head located in the middle of the drying chamber, can be dry in concurrent or counter-current way, can lengthen or shorten drying time according to the material characteristics, suitable for heat-sensitive materials.
- With the function of the fluidized bed;
- Can be equipped with 1-micron precision filter, effectively improve the efficiency
In particular, it achieves rapid material drying at low temperature and provides very convenient and safe drying method for thermo-sensitive materials, such as biological product, high carbohydrate traditional Chinese medicine natural product extract, thermolabile polymer material, heat gasification material and so on.
