In laboratory and industrial production, the efficient operation of reaction vessels and rotary evaporators relies on the precise matching of ultra-low temperature refrigeration cycles. Proper selection not only ensures experimental stability, but also improves efficiency and safety. This article will extract the core points and provide users with concise and practical selection guidance.
1、 Key points of reactor matching: dynamic thermal equilibrium and system adaptation
1. Accurate evaluation of heat load: The thermal effect of the reaction process is complex, and it is necessary to comprehensively calculate all influencing factors such as material mass, specific heat capacity, heating and cooling rate, reaction release/absorption rate, stirring heat, equipment and pipeline heat leakage, environmental heat exchange, etc., and determine the required refrigeration capacity based on the heat exchange area and heat exchange efficiency. It is strictly prohibited to estimate solely based on the volume of the reaction vessel. The actual process curve should be calculated and a safety margin of 15% to 30% should be reserved to ensure stable and controllable temperature.
2. Adaptation of refrigeration architecture: Select a refrigeration system based on the reaction temperature range (such as single-stage compression refrigeration or cascade compression refrigeration), focusing on the actual refrigeration capacity under the target operating conditions, rather than the no-load limit indicator.

3. Optimize the temperature control system: match the jacket or coil structure to ensure that the flow rate and head of the circulation pump meet the heat transfer requirements and avoid local temperature differences. The material should be compatible with the reaction medium, and explosion-proof configuration should be selected for flammable and explosive scenarios.

2、 Key points for matching rotary evaporator: condensation efficiency and temperature control accuracy
1. Temperature difference driven condensation: The temperature of the refrigeration cycle should be at least 15-25 ℃ lower than the boiling point of the solvent to ensure sufficient temperature difference to improve condensation efficiency and prevent solvent escape from contaminating the vacuum pump.
2. Matching cooling capacity and evaporation capacity: The cooling demand is determined based on the capacity of the evaporator bottle and the properties of the solvent. Large capacity rotary evaporation requires higher cooling capacity, while ensuring that the circulating flow evenly covers the condenser to avoid the failure of temperature difference between the upper and lower parts.
3. Vacuum linkage control: The low-temperature and vacuum systems work together to stabilize and avoid pressure fluctuations affecting the condensation effect.
3、 General selection principles and pit avoidance guidelines
1. Avoid the four major misconceptions:
Only focus on the maximum temperature and ignore the actual cooling capacity under working conditions;
Estimate cooling capacity based on equipment volume;
Blindly pursuing low-temperature areas, neglecting energy consumption and costs;
Ignore the requirements for flow rate and head of the circulating pump.
2. Safety and maintenance: Choose equipment with safety functions such as over temperature protection and liquid level alarm; Regularly replace the refrigerant (1-2 years/time), check the pipeline sealing and electrical safety.
3. Professional support: Provide manufacturers with detailed process parameters (such as material characteristics, temperature curves), obtain customized solutions, and avoid "big horses pulling small cars" or "small horses pulling big cars".
4、 Long term value: equal emphasis on efficiency and reliability
A precisely matched refrigeration system can significantly improve experimental reproducibility and reduce failure rates. Pay attention to equipment installation, debugging, and regular maintenance to ensure long-term stable operation. You can choose manufacturers with technical strength to obtain reliable after-sales support and reduce lifecycle costs.

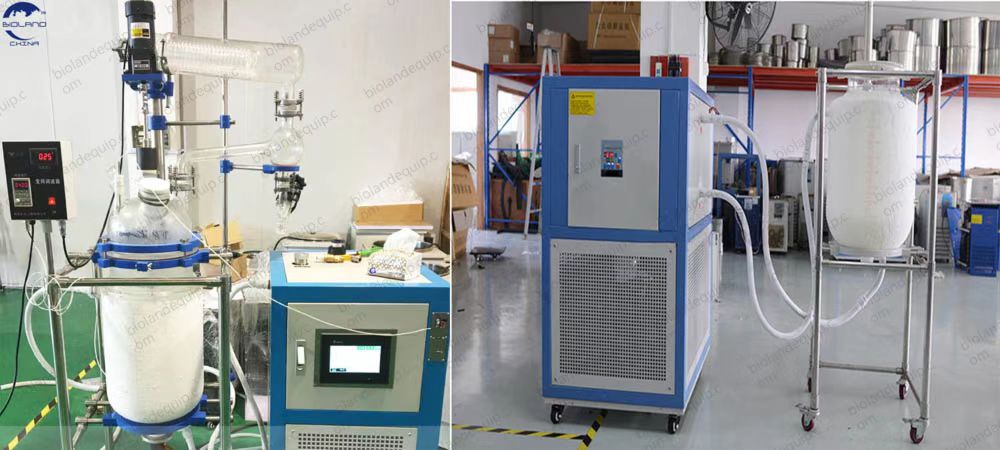

Low temperature circulation refrigeration equipment is a low-temperature liquid circulation equipment that uses a compressor for refrigeration. It can provide constant current and constant pressure circulating cooling liquid to meet the needs of rotary evaporators, glass reaction kettles, etc. for reducing instrument operating temperature.
Low temperature circulating refrigeration equipment or temperature control system has the function of providing low-temperature liquid and low-temperature water bath; It can be combined with rotary evaporator, vacuum drying oven, circulating water multi-purpose vacuum pump, magnetic stirrer and other instruments for multifunctional low-temperature chemical reaction operations and drug storage. For instruments that require constant flow and pressure water cooling when working in water scarcity, poor water quality, or high temperatures, low-temperature circulating refrigeration equipment is necessary to ensure the normal operation of the instrument.
After using the low-temperature circulation refrigeration equipment, the equipment that needs to be cooled should be turned off first, and then the circulation pump switch, foot switch, refrigeration machine switch, power switch should be turned off in sequence. Finally, pull down the reliable switch and unplug the power plug. If not in use for a long time, please drain the coolant from the low-temperature circulation refrigeration equipment and rinse it with clean water.
To ensure optimal cooling capacity of the low-temperature circulating refrigeration equipment, in addition to ensuring clean air around the low-temperature coolant circulating pump, it is also necessary to regularly inspect and clean any dust on the condenser surface: confirm that the power plug of the equipment has been unplugged; Remove the two screws under the air intake ventilation hood of the device, then gently pull off the hood and move it away; Use a soft brush or similar tool to inspect and clean the dust buildup on the surface of the mesh cover and condenser. Be careful not to touch the condenser fins with your hands to avoid scratching them; After cleaning, install the ventilation hood and tighten the screws.

Summary: Selection should be based on actual processes, balancing cooling capacity, temperature control accuracy, safety, and cost. Xi'an Bioland Instrument Co., Ltd. has been dedicated to the field of laboratory equipment for many years. We can provide reliable temperature control solutions for laboratory and industrial users, helping them overcome temperature control bottlenecks and achieve efficient scientific research and production. Welcome to consult! info@bioland-china.com
