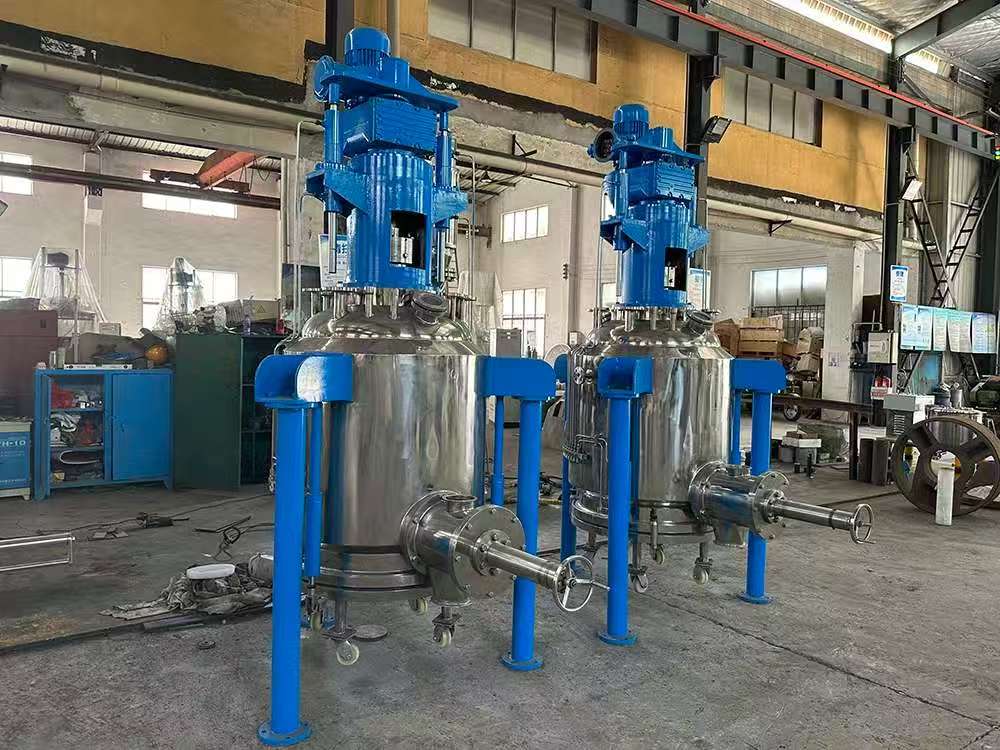

50L Agitated Vacuum Nutsche Filter Dryer

Product Description

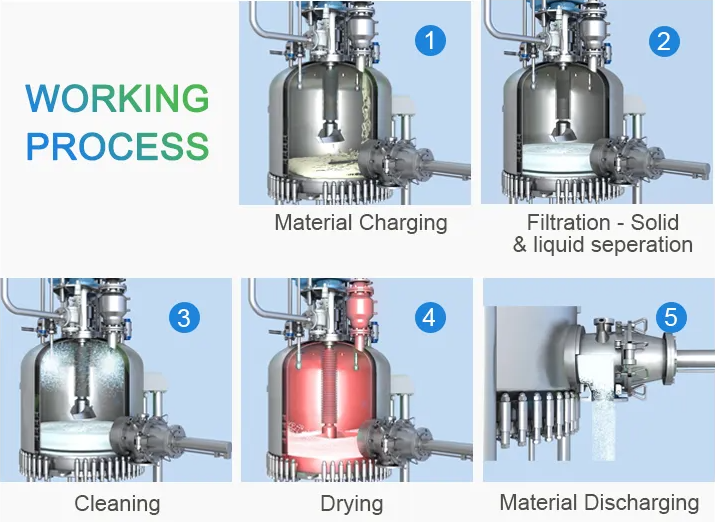

The Agitated Nutsche Filter Dryer can be made from SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials. It can replace the filtering and drying equipments at the same time (such as: vacuum filter, pressure filter, Double-cone Drying machine and drying box...etc.). It completes the whole process of filtering, washing, drying, solid discharging in the same equipment. It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It is the most ideal equipment for filtering and drying. What's more, it can realize the continuous operation without air, and even more suitable for producing sterile and poisonous products.

The nutsche filter dryer is mainly composed of transmission device, filter unit, mixing system, lifting device, slag discharge device, filter bed and other components

Main features:
A. Economical energy: The electrical engineering power is small (big speed ratio of Gear Box: I = 46.3)
B. CIP and SIP; sterile by steam (122ºC)
C. Double-line 0-rings for seal between bottom plate and vessel, no dead angle, "GMP" designs are suitable for sterilizing and cleaning, attaining an ideal sealing effect.
D. Reduce the labor strength of operators, and avoid the pollution of the product, meeting "GMP" request
