Lab Terpenes Hemp Ethanol Purification Extraction Evaporator Equipment

As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.

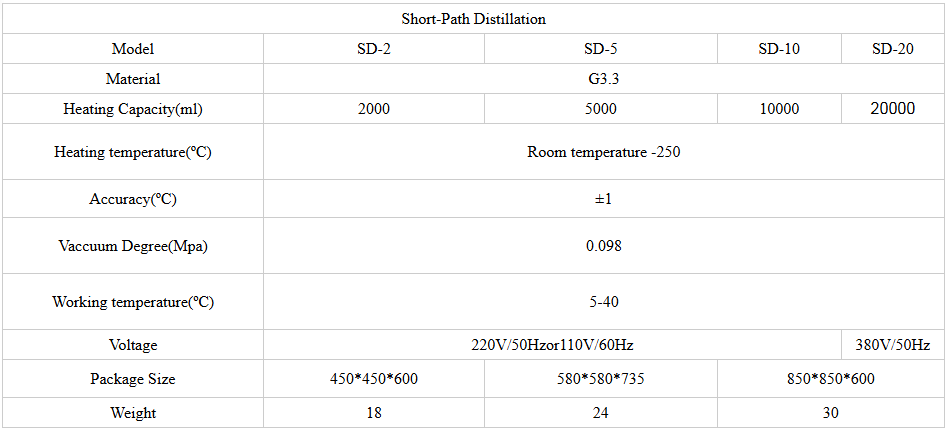

Product Parameters

1. High evaporation efficiency and reduced retention time, with minimal time delay.
2. Short path distillation is made from high borosilicate glass 3.3 and PTFE, which have excellent corrosion resistance.
3. Main body of Short path distillation is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly.
4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface, avoid stick and scaling.
5. German technology brand frequency conversion deceleration motor, with self-cooling fan, long time continuous working.
6. Magnetic force transmission make film forming system separate from motor, the top sealing of distillation barrel have no dwang through. The whole System performs a completed sealing. The minimum vacuum pressure is up to 0.001mbar.
7. Highest temperature of the system can reach 230ºC/300ºC, accurate temperature control can be realized.
8. Max. theory vacuum degree can reach 0.05mbar or0.001mbar (Should equipped with Secondary Diffusion Vacuum Pump).
9. Scraper Model and self-cleaning roller Model film forming system are available.
Application
