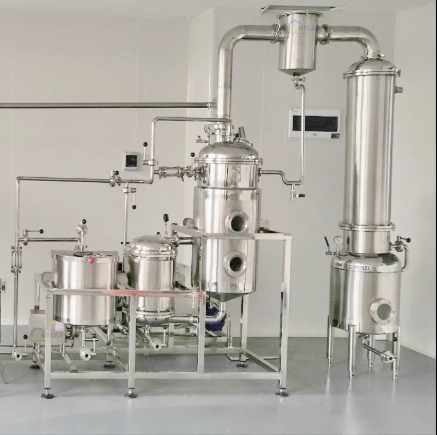

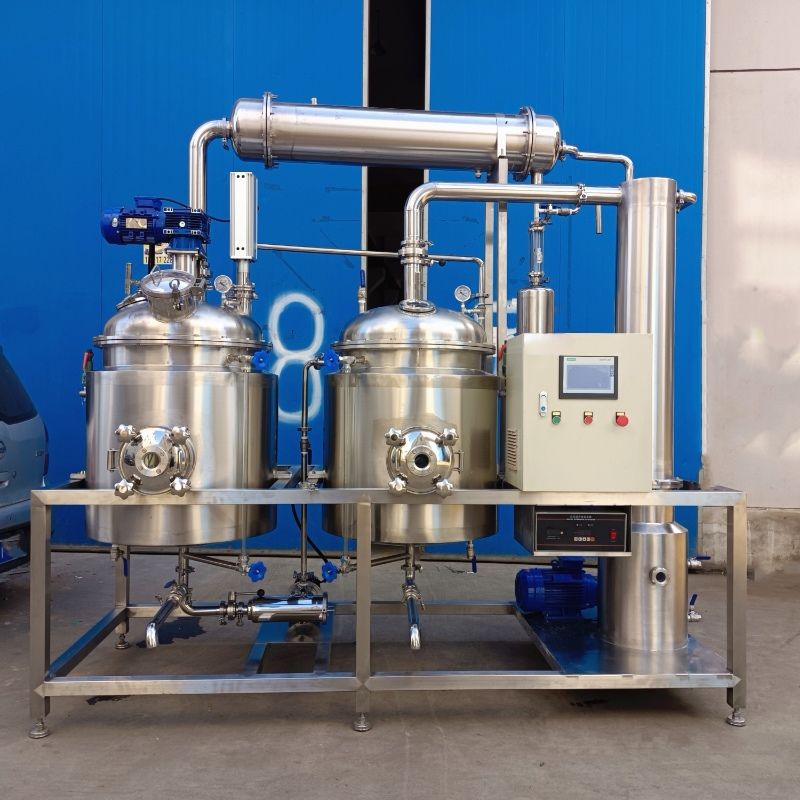

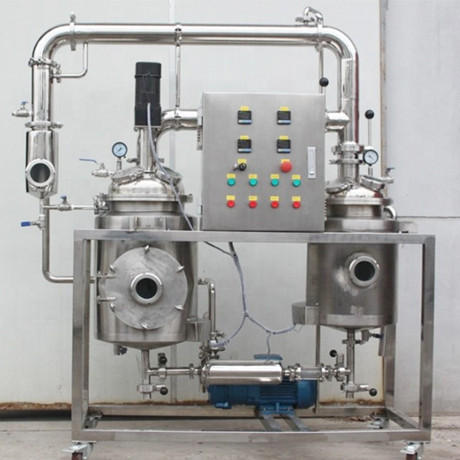

Automatic 100L Ultrasonic Herb Extraction & Concentration Machine

Product Description

Ultrasonic Herb Extraction & Concentration Machine refers to the product formed by taking plants as raw materials and obtaining or concentrating one or more components in plants through physicochemical extraction and separation process according to the needs of the use of the final product, without changing the structure of its active components; According to needs, it can also be supplemented with excipients to make a powder or particle with good fluidity and humidity resistance, and there are also a small amount of liquid or oil form products. At present, the commonly used extraction methods are solvent extraction, ultrasonic extraction, microwave extraction and enzyme extraction, and supercritical fluid extraction and microwave-assisted extraction are widely used as new extraction technologies.

Ultrasonic Herb Extraction & Concentration Machine advantages:

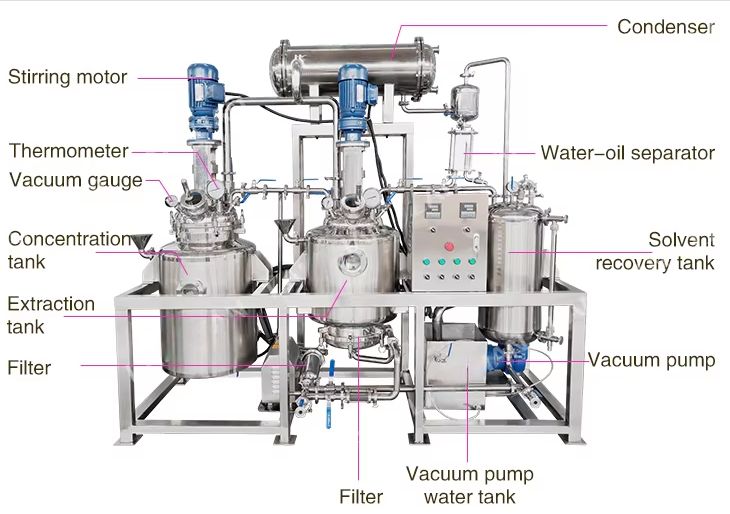

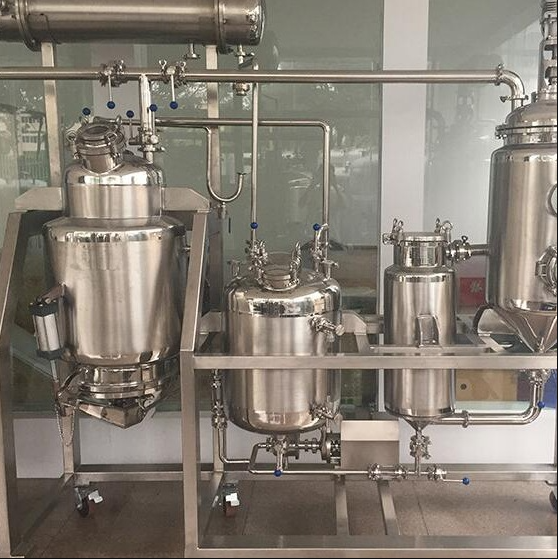

1. This Ultrasonic Herb Extraction & Concentration Machine herbal plant extract machine has excellent manufacture,completecollocation,simple operation.It is consist of ultrasonic system,extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricty.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user's demand and control the parameter during the processing to enhance the production efficiency and quality.

Application industry

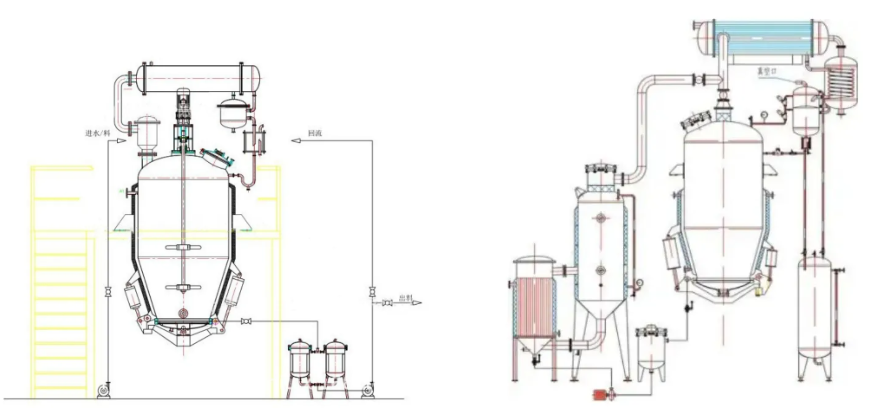

Traditional Chinese medicine hot backset current low temperature draw low temperature concentrate unit comprehensive backset current, ooze and filter drawing, adverse current and hot backset current extraction and concentrate four kinds of principles. abstraction, concentrate two processes go on at the same time, one finish traditional medicine draw, concentrate the new craft of traditional Chinese medicine, take to change the draw pot keep high temperature with atmosphere fry the craft of boiling, utilize vacuum to shoulder proceed low temperature draw and low temperature concentrate, make working temperature to draw pot control in 60-80°C, concentrate temperature control in 50-70°C, guarantee crude drugs effective composition the distillation loss. Meanwhile draw and concentrate produced two steam enter backset current condenser become hot condensation liquid, falling back to and drawing it the pots, add to the crude drugs as the new solvent, the new solvent is passed the crude drugs layer from top to bottom, having played a oozing and filtering dynamically role, the soluble material which dissolves the crude drugs reaches the draw pot bottom, enter the concentrating device to concentrate again. According to practical experience and study for many years, hot condensation liquid of backset current invite within 2.5-3 hours drawing former solvent of pot all change once, can keep a higher density to the draw pot crude drugs in unit time.
