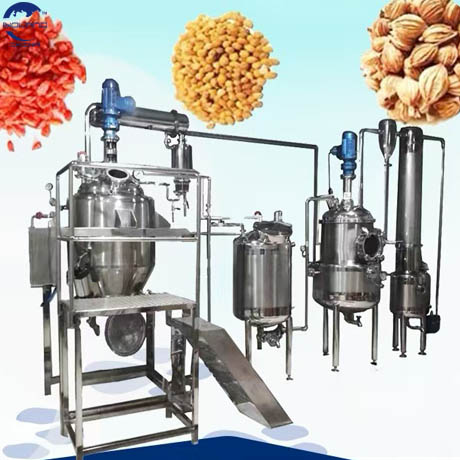

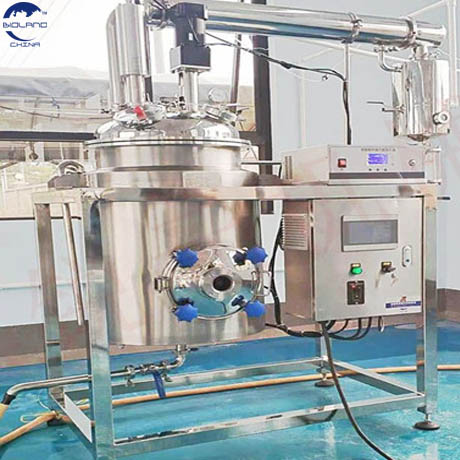

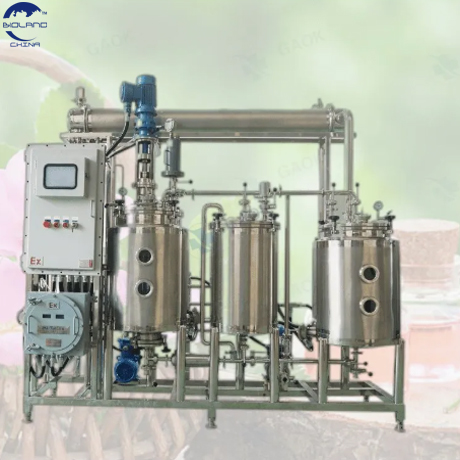

ultrasound microwave herbal Solvent vacuum concentration system

Product Overview

Ultrasonic extraction is a technology that uses the cavitation effect, mechanical effect and thermal effect of ultrasonic wave to extract the effective components of substances (herbs) by increasing the moving speed of medium molecules and increasing the penetration of medium.

Key Features of Ultrasonic Solvent Extraction and Concentrate Machine

1. Ultrasonic Solvent Extraction and Concentrate Machine Combined with extracting and concentrating, so as to make it easy to operate. It's polished in both internal and external side, which is in accordance with GMP requirements.

2.Ultrasonic Solvent Extraction and Concentrate Machine, It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.

3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.

4. Ultrasonic Solvent Extraction and Concentrate Machine,It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.

5. Ultrasonic Solvent Extraction and Concentrate Machine,The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.

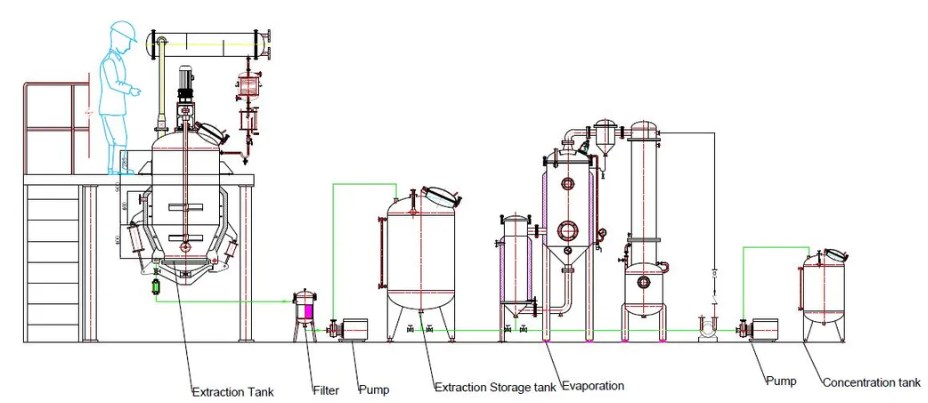

Process Flow for reference

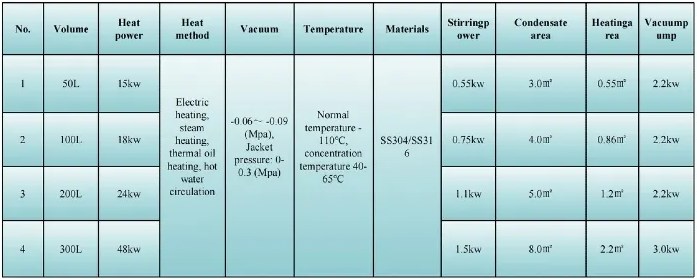

Technical description

Usage Scope

Usage of multi-function extractor Multi-function upside-down taper extractor is the equipment which is widely used in me dic ine, biology, food, chemical leaching extraction. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling solvent in dross, which is applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on many kinds of craft. Having the advantages of high efficiency, easy to operate.
Features of multi-function extractor Our company research and development of new multi-function extractor slag linkage control system consists of four cylinder, double cylinder to open the door, double cylinder contraction, and designs the safety interlock, slag door sealing adopts pneumatic seal design, easily open the door, no leakage, safe and reliable operation.
