100L Ultrasonic herbal Extraction and Concentration machine

Product Description of Ultrasonic herbal Extraction and Concentration machine

Ultrasonic herbal Extraction and Concentration machine optimizes the product structure based on the original dynamic heat extraction unit to integrate the energy-concentration ultrasonic generator and solvent recovery equipment. In this equipment, the production process of ultrasonic extraction, filtration, solvent recovery, and essential oil condensation is completed in one step, which greatly saves raw materials and working time, and the working efficiency is increased by 60% to 80% compared with the general multifunctional extraction equipment.

To watch more videos about this machine, please check our youtube channel:  https://youtu.be/QneNAZLeddk

Key Features of Ultrasonic herbal Extraction and Concentration machine
Ultrasonic assisted extraction Module :The plant cells are ruptured by ultrasonic waves to accelerate the dissolution of active ingredients.it utilizes water extraction, solvent extraction with Ultrasonic assisted function extract essential oils, active ingrdents from the chinese herbals ,botanical ,health products,fruit seed and skin ,fruit seeds.,etc .
Concentration Unit: The concentration unit is designed to concentrate the extracted essential oils to increase their potency and purity.
Vacuum Distillation System: The vacuum distillation system ensures gentle and efficient distillation of essential oils at low temperatures to preserve their delicate aromatic compounds.
Automated Controls: The production line is equipped with automated controls and monitoring systems for precise process control and efficient operation.
High Yield and Efficiency: The production line is optimized for high yield and efficiency, reducing processing time and maximizing output.
Customizable Design: The production line can be customized to meet the specific extraction and concentration requirements of different essential oils and botanical materials.

Benefits of Ultrasonic herbal Extraction and Concentration machine
1. Fully closed cycle extraction and concentration can save 0.3-0.5 times of energy.
2. According to different drugs, reduce the solvent by 0.5-1 times, and increase the dosage by 30% - 60%. The paste yield was increased by more than 10%.
3. Hot reflux, extraction under normal pressure, concentration at low temperature, shorten the production time by more than 1 / 3.
4. It is suitable for water extraction or alcohol extraction. It can recover ethanol. It can be used for alcohol precipitation, percolation, warm soak, cold soak and other functions.
5. Cancel the intermediate storage and save 50% of the investment.
6. If the computer display control is added, the concentration temperature can be freely set at 55 ºC - 80 ºC.
7. Our equipment has compact structure, convenient operation and 50% saving of floor area.Experience the precision and innovation of our essential oil extraction and concentration production line for all your botanical extraction needs.

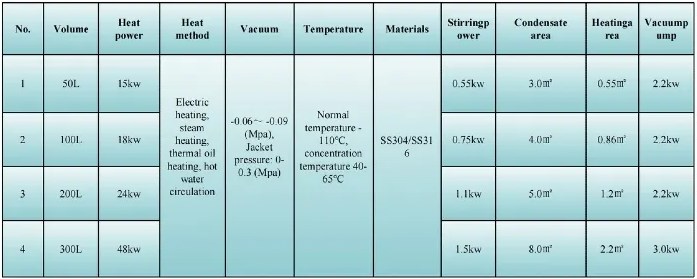

Technical description

Remark :above model just for reference ,we can do according to client's requirement customize
