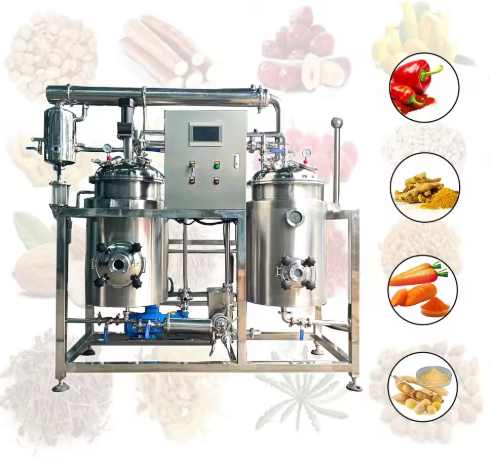

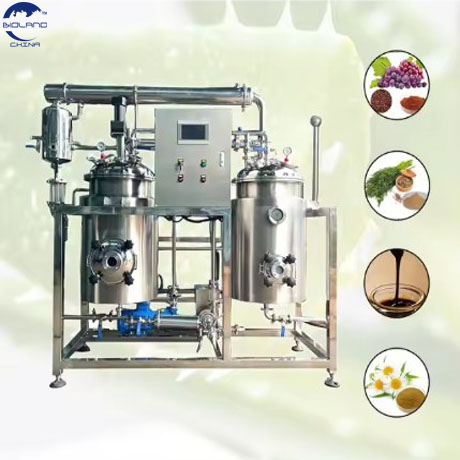

ultrasonic botanical extraction machine

Product Details

Ultrasonic plant extraction or ultrasonic botanical extraction machine technology destroys plant cell walls through high-frequency vibration, promotes solvent penetration, and significantly improves the extraction rate and speed of target components such as flavonoids, polyphenols, oils, etc. Compared to traditional methods, it has advantages such as high extraction efficiency, low temperature, short time, energy conservation and environmental protection.
This ultrasonic botanical extraction machine technology has been widely used in the extraction, research, and production of various plant components such as cannabinoids, walnut oil, stevia, and cottonseed flavonoids

Parameter/device type
1) The laboratory grade small-scale ultrasonic botanical extraction machine has a capacity range of 20L-100 L, ultrasonic frequency of 20-40 kHz, adjustable power of 100W-3 kW, material requirements of SUS-304 or 316 food grade stainless steel, fully enclosed corrosion-resistant design, equipped with extraction tank, concentration tank, ultrasonic processor, condenser, cooler, pump, condensation recovery system, intelligent PLC temperature control and vacuum system, etc. It is used for scientific research and small-scale trial production.
2) Industrial continuous ultrasonic botanical extraction equipment of 100 L and above, ultrasonic frequency of 20-40 kHz, adjustable power of 100W-3 kW, material requirements SUS-304 or 316 food grade stainless steel, fully enclosed corrosion-resistant design, equipped with extraction tank, concentration tank, ultrasonic processor, condenser, cooler, pump, condensation recovery system, etc
Intelligent PLC temperature control and vacuum system, applied in scientific research, large-scale traditional Chinese medicine extraction, essential oil production, etc., efficient composite extraction process development

Suggestions for core working parameters (taking flavonoid extraction as an example)
Ethanol concentration: 60% is optimal
Extraction temperature: 25-80 ° C (adjusted for thermal sensitivity)
Solid liquid ratio: 1:10 to 1:18 (mL/g)
Ultrasound duration: 25-35 minutes
Power setting: 300-3000 W, adjustable by volume

Ultrasonic plant extraction equipment  or ultrasonic botanical extraction machine has become an important tool for modern natural product extraction due to its high efficiency, energy saving, and wide applicability. When choosing, it is necessary to consider the purpose (scientific research or industry), raw material characteristics, and budget comprehensively, and prioritize key indicators such as frequency adjustability, material safety, and intelligent control systems。
