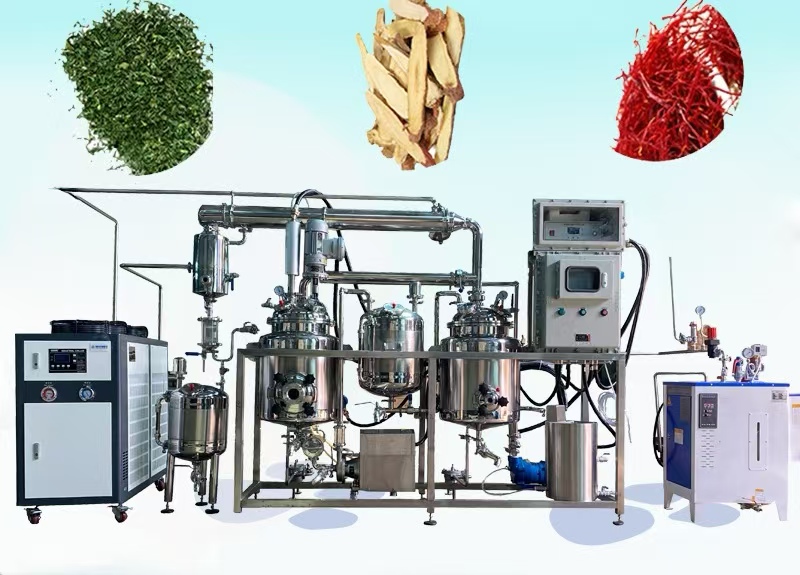

Tea polyphenols extraction machine

The tea polyphenol ultrasonic extraction machine is an innovative traditional Chinese medicine extraction equipment developed by the company. The equipment is made of high-quality 304 stainless steel material, which is resistant to high temperature, acid and alkali, and equipped with heating; Temperature control; Scheduled (optional) mechanical mixing. Pneumatic slag removal, with ultrasonic penetration and wall breaking function, increases the dissolution efficiency of the drug solution.

The ultrasonic extraction machine for tea polysaccharides and tea polyphenols is suitable for various processes in industries such as traditional Chinese medicine, health products, biopharmaceuticals, cosmetics, and food, including ultra-low temperature, normal pressure and room temperature ultrasonic extraction, ultrasonic extraction, dynamic hot reflux extraction, organic solvent recovery for extraction, and vacuum depressurization low-temperature concentration. This device is capable of dynamic continuous ultrasonic low-temperature extraction and concentration, and is very suitable for use in research and development departments of universities, research institutes, enterprises, institutions, laboratories, and pharmaceutical factories for multi variety and small batch production. It can also effectively reduce the loss of thermosensitive components

Product Features:
1  . High extraction efficiency: The physical properties of ultrasound can promote the breaking or deformation of plant cell tissues, making the extraction of effective ingredients in traditional Chinese medicine more complete, and the extraction rate is significantly increased by 50-500% compared to traditional processes;
2. Short extraction time: Ultrasonic enhanced traditional Chinese medicine extraction usually takes 24-40 minutes to achieve the desired extraction rate. The extraction time is greatly reduced by more than 2/3 compared to traditional methods, and the amount of raw materials processed is large;
3. Low extraction temperature: The temperature for ultrasonic extraction of Chinese medicinal materials is between 40-60 ℃,
4. Wide adaptability: Ultrasonic extraction of Chinese medicinal materials is not limited by component polarity or molecular weight, and is suitable for the extraction of the vast majority of types of Chinese medicinal materials and various components;
5. The extracted medicinal solution has fewer impurities and the effective ingredients are easy to separate and purify;
6. The extraction process has low operating costs and significant comprehensive economic benefits;
7. Easy to operate, convenient equipment maintenance and upkeep.

Equipment structure configuration

Multiple pharmaceutical processes are integrated, including ultrasonic countercurrent circulation extraction, ultrasonic countercurrent circulation extraction, and vacuum depressurization concentration of the extraction solution.

The equipment runs fully automatically, with PLC frequency converter automatic control and touch screen dynamic display of the entire machine workflow. The experimental data can be printed and saved on an external PC.

This equipment is suitable for various processes in industries such as traditional Chinese medicine, health products, biopharmaceuticals, cosmetics, and food, including ultra-low temperature, normal pressure and room temperature ultrasonic extraction, ultrasonic extraction, dynamic hot reflux extraction, organic solvent recovery for extraction, vacuum depressurization and low-temperature concentration, etc.

This Tea polyphenols extraction machine is suitable for use in research and development departments of universities, research institutes, enterprise and institution laboratories, as well as in small-scale production of multiple varieties in pharmaceutical factories.

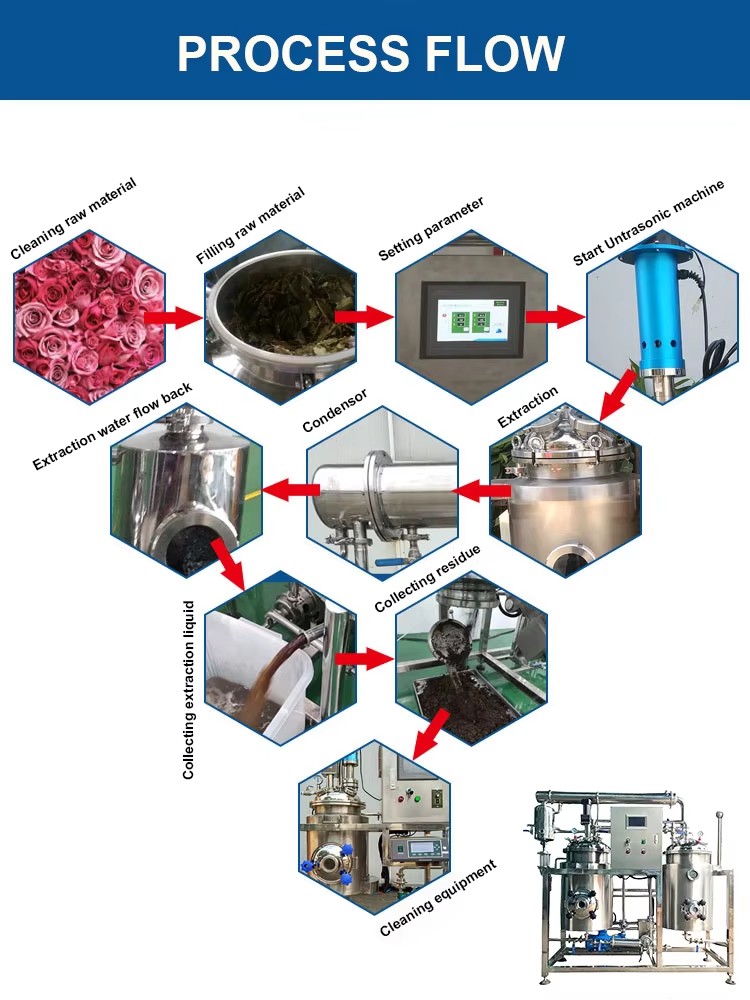

processing steps:
Raw material processing: After cleaning and drying, the tea leaves are crushed to 20-40 mesh, with a material to liquid ratio of 1:30-1:50 (tea: water).
Ultrasonic extraction:
Parameter settings: temperature 50-60 ℃, ultrasonic power 150-3000W, processing time 20-40min;
Equipment requirements: Industrial grade ultrasonic extraction tank, matched with PLC control system, to achieve precise control of temperature, power, and time.
Solid liquid separation: The extract is filtered through a plate and frame filter press, and the filtrate is concentrated under reduced pressure in a concentration tank to obtain a concentrated tea polyphenol solution.
Dry finished product: concentrate is dried by spray or vacuum freeze drying to produce tea polyphenol powder with purity of more than 95%

This machine is used for dynamic extraction of ultrasonic low-temperature . The material undergoes low-temperature repeated reverse circulation flow, repeatedly passing through an ultrasonic generator with high-altitude effect. This device has a higher extraction rate than regular ultrasonic extraction.
1) The equipment has a sophisticated structure and fully utilizes the characteristics of ultrasonic energy gathering generators. Ultrasonic waves directly act on materials, enhancing the mechanical effect of traditional Chinese medicine extraction through ultrasonic waves, cavitation, local high vibration, high impact, and high sound pressure shear, greatly reducing extraction time by more than 4/5 compared to traditional methods, and processing a large amount of raw materials for medicinal herbs.
(2) The ultrasonic extraction equipment and the matching vacuum decompression and concentration equipment can operate independently or in conjunction during the use of the unit.
(3) This equipment optimizes the product structure based on the original dynamic heat reflux extraction unit by integrating a focused ultrasonic generator and a solvent recovery device into this equipment, enabling the production processes of ultrasonic dynamic ultra-low temperature extraction, low-temperature extraction, filtration, solvent recovery, essential oil condensation, etc. to be completed in one step, greatly saving raw materials and working time, and improving work efficiency by 60% to 80% compared to general multifunctional extraction equipment
(4) High conversion rate of raw materials: This equipment utilizes the physical and cavitation effects of ultrasound to promote the breaking or deformation of plant cell tissues. The vibration, acceleration impact, and sound pressure shear equivalent stress between solute particles are strengthened, resulting in the formation of high-temperature and high-pressure local points in the material, which promotes the precipitation of active ingredients in traditional Chinese medicine and increases the extraction rate by up to 45% compared to traditional processes.
(5) Effectively reduce the loss of thermosensitive components. At the same time, the JYT series ultrasonic extraction and membrane concentration unit adopts a titanium alloy focused ultrasonic generator and pneumatic stirring (or mechanical stirring), which allows large volumes of Chinese medicinal materials to fully contact the ultrasonic probe and accelerate the uniform precipitation of active ingredients in the raw materials.
(6) Considering the convenience of extracting drug residues, the extraction part is equipped with a large aperture manhole or hand hole, and is equipped with an internal and external dual filtration system to prevent small drug residues from flowing into the concentration unit.
(7) The equipment has a compact structure and a small footprint, with an actual footprint of around 5-6 square meters.
(8) The extraction of traditional Chinese medicinal materials is not limited by the polarity and molecular weight of the ingredients, and is suitable for the extraction of the vast majority of traditional Chinese medicinal materials and various components; This device is a fully enclosed internal circulation structure, equipped with an oil-water separator, condenser, and cooler, which can be reused multiple times for valuable solvents.

Application areas of ultrasonic assisted extraction of tea polyphenols
1、 Food and beverage industry
Antioxidants: Tea polyphenols are natural and potent antioxidants that can be added to fruit juices, dairy products, and baked goods to extend shelf life and enhance flavor stability.
Functional foods: Develop health drinks and tea powder granules containing tea polyphenols, with a focus on "lipid-lowering, liver protection, and anti fatigue" effects, such as Kangpu tea and functional tea drinks.
Food additives: used as natural pigments (theaflavins, thearubigins) and flavor enhancers in products such as candies, jellies, and seasonings.
2、 Medical and health field
Health products: Prepare tea polyphenol capsules and tablets for assisting in lowering blood lipids, improving microcirculation, and preventing cardiovascular diseases.
Drug raw materials: used as anti-inflammatory and antibacterial ingredients for topical ointments on the skin and oral care products (such as toothpaste and mouthwash).
Traditional Chinese medicine extraction: It can be used in combination with traditional Chinese medicine to improve the bioavailability of compound preparations, such as preparing cardiovascular traditional Chinese patent medicines and simple preparations with salvia miltiorrhiza and astragalus.
3、 Cosmetics industry
Anti aging products: The antioxidant properties of tea polyphenols can eliminate free radicals, and can be used in anti aging products such as essence liquid, face cream, facial mask, etc. to reduce wrinkles and spots.
Sunscreen products: compounded with UV absorbers to enhance the photostability of sunscreen while reducing skin photodamage.
Acne removing products: use tea polyphenols as anti-bacterial and anti-inflammatory agents for acne removing gel and toner to relieve acne and skin inflammation.
