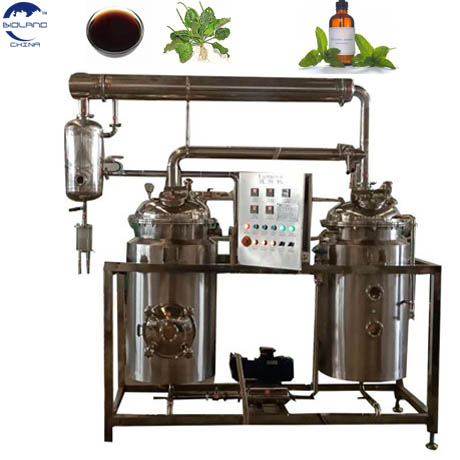

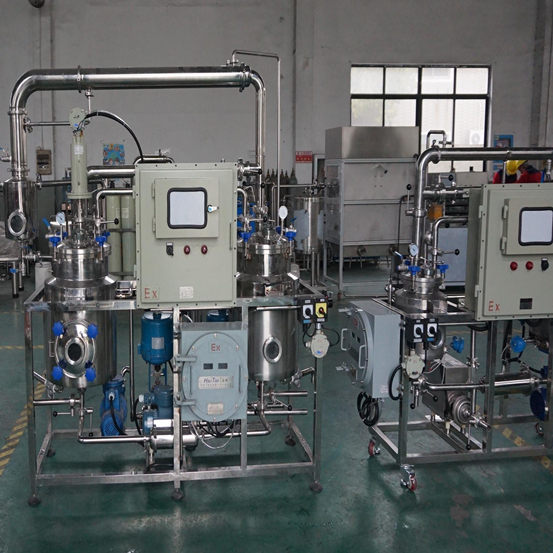

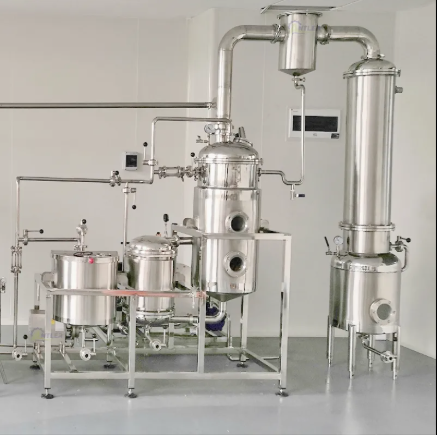

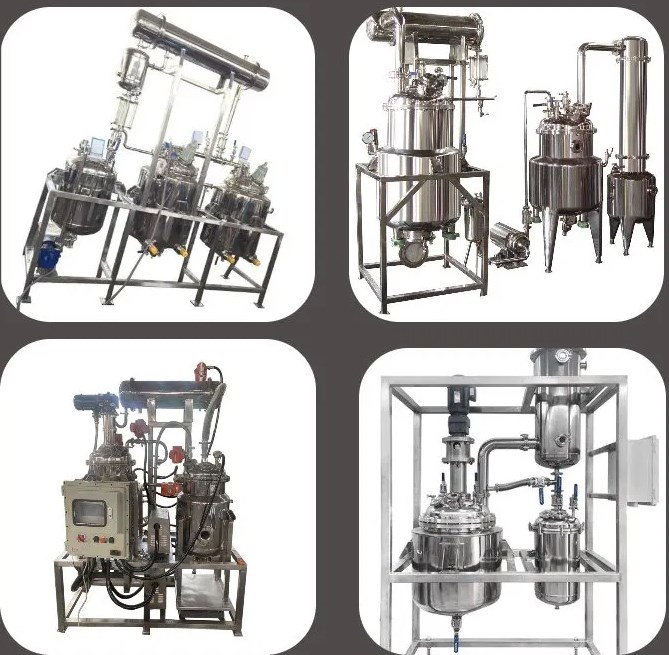

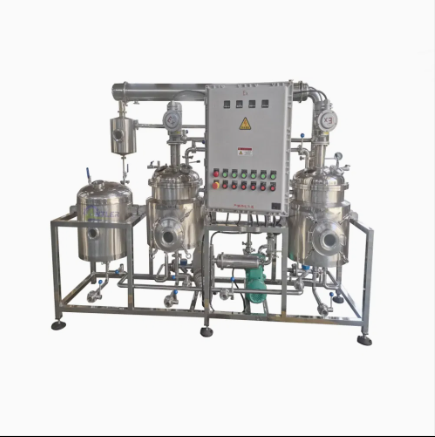

ultrasonic tincture soxhlet extraction system machine with solvent recovery

Product Description

Multifunctional ultrasonic oil soxhlet extract machine is applicable to the extraction and concentration of for all kinds different raw material ,like herbal leaf,root,wood,seed ,fruit ,flower,seafood,animal bone,organ,natural product etc.

Machine composite
Multifunctional thermal reflux extractor and concentrator machine including extractor tank, single effect concentrator,condenser, oil/water separator,sub-cooler,water(solvent)collection tank, automatic drain system.pipeline, control panel and platform..etc

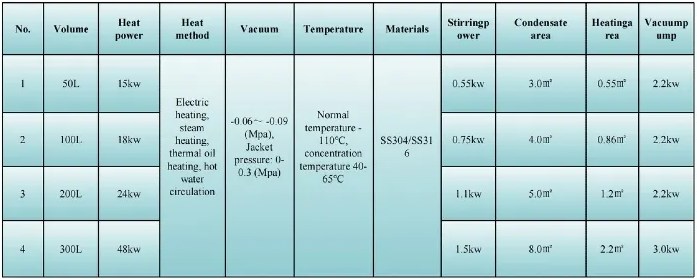

Technical description

Key Features

1..This ultrasonic oil soxhlet extract machine collect ultrasonic extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.

2.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.

3.This ultrasonic oil soxhlet extract machine can configure with PLC control system according to user's demand and control the parameter during the processing to enhance the production efficiency and quality.

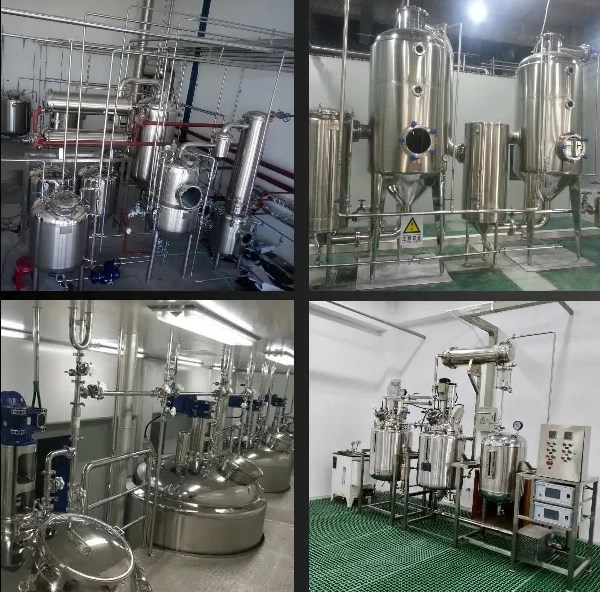

Project Case
