Chinese herbals Extraction Equipment of the extraction tank is a commonly used leaching and extraction equipment in pharmaceutical and chemical industries, particularly suitable for the leaching and extraction of components from plant products. Its structure includes a tank body, with a helical or paddle agitator installed axially inside the tank, connected to a rotating shaft disc outside the tank. The characteristic feature is a set of inclined continuous counter-current leaching and extraction single tanks, where the discharge ports and feed ports of each tank are interconnected to form a communicating vessel. Each single tank has a feed port at the upper part of the lower end, a residual liquid discharge port at the lower part, a liquid inlet or vent port at the upper part of the higher end, and a discharge port at the lower part.

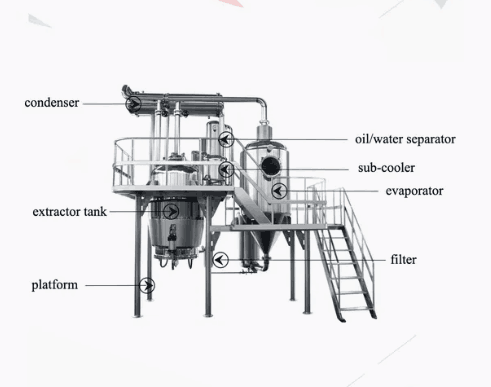

Equipment Composition of Chinese herbals Extraction Equipment
This equipment mainly consists of tank body, spray pipe, pneumatic slag discharge door and other components. The solvent is evenly sprayed onto the medicinal herbs through the spray pipe on the upper part of the tank. By soaking, the active ingredients of the medicinal herbs are dissolved into the solvent.

Main Features of Chinese herbals Extraction Equipment
1. The slag gate adopts a common dual cylinder opening and closing type or a three cylinder rotating type. The rotating safety door adopts single cylinder opening and closing, dual cylinder rotating pushing locking, and inclined wedge self-locking, completely solving the leakage or decoupling accidents caused by unstable compressed air source pressure, with a high safety factor.
2. Equipped with a medicinal material compression device to prevent floating and contamination of medicinal materials
