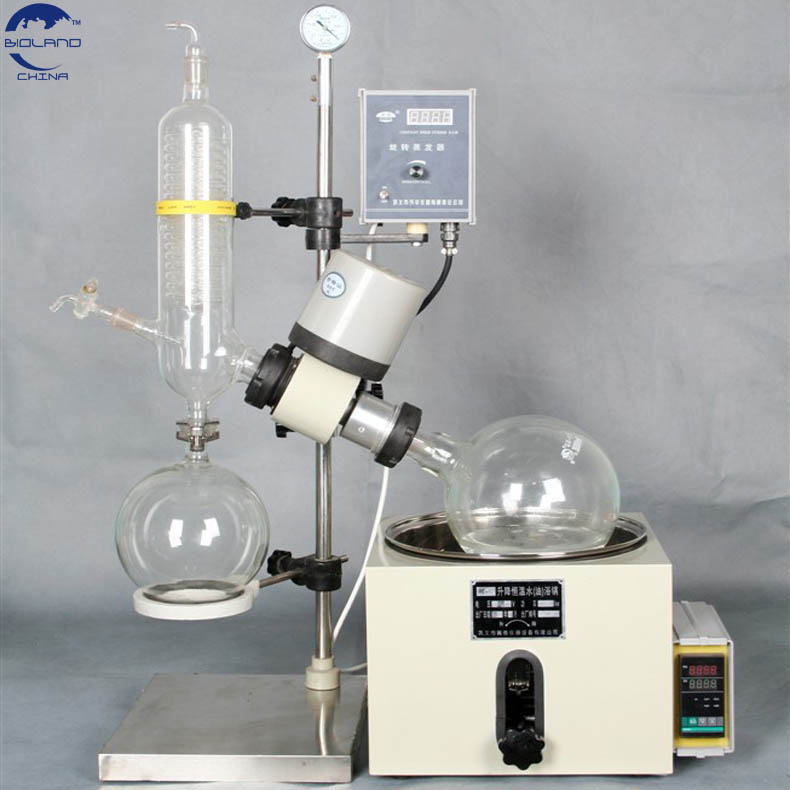

Dual-Purpose Rotary Evaporator Vacuum Distillation equipment

Product Description

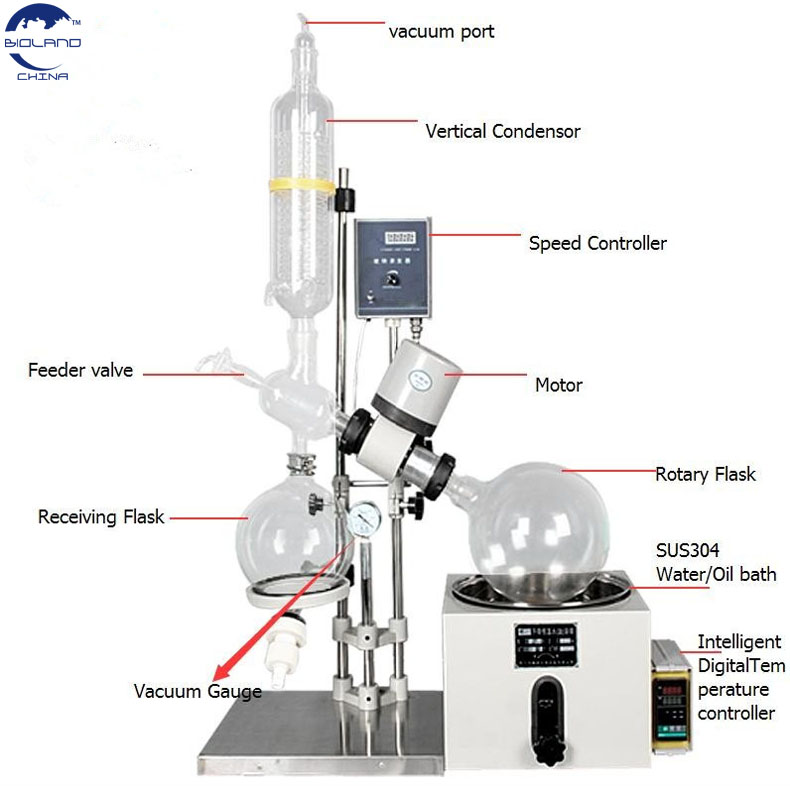

The rotary evaporator is made according to the principle of constant temperature heating and film evaporation under vacuum and negative pressure. The rotary evaporator uses stepless speed regulation to make the glass rotating bottle rotate at a constant speed, and the materials form a large area uniform film on the bottle wall.
Then, the rotating bottle is evenly heated by the intelligent constant temperature water bath, evaporated at a high speed under vacuum, and the solvent vapor is cooled by the high-efficiency glass condenser and recycled in the collection bottle.

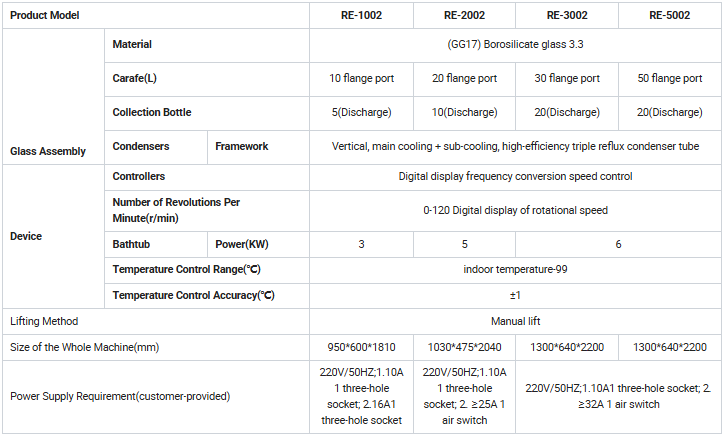

Product Parameters

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and  reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10- 120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism.
2 Evaporator along the horizontal direction can lean in 0-45 ºC arbitrarily.
3 Vertical condensation system of high rate of evaporation.
4 Vacuum sealing way.
5 Automatic control temperature digital display.

Application:
Mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.
