50L rotary vacuum evaporator

Product Details

Rotary vacuum evaporator (often abbreviated as rotovap) is a commonly used equipment in laboratories for removing solvents from samples. The core principle is to lower the boiling point of the solvent under reduced pressure and accelerate the evaporation process by rotating the sample bottle to form a large-area film. This design is particularly suitable for handling heat sensitive or volatile substances, and can effectively protect the components of the sample.

Rotary vacuum evaporator is a laboratory and industrial equipment that efficiently separates solvents at low temperatures by reducing pressure and increasing the evaporation area through rotation.

Rotary vacuum evaporator is an efficient and mild solvent removal tool widely used in scientific research and industrial fields. Its core advantages lie in low-temperature operation to protect samples and efficient evaporation, making it an ideal choice for laboratories and production lines

rotary vacuum evaporator is a specially designed instrument for the evaporation of solvent to form a thin film under vacuum condition. The evaporation rate is regulated by the heating bath temperature, the size of flask, the pressure of distillation and the speed of rotation

Core parameter information
Working principle: Using vacuum to reduce boiling point, rotating the bottle to form a thin film, heating and evaporating, commonly used for condensation recovery, solvent removal, concentration, drying, and recovery

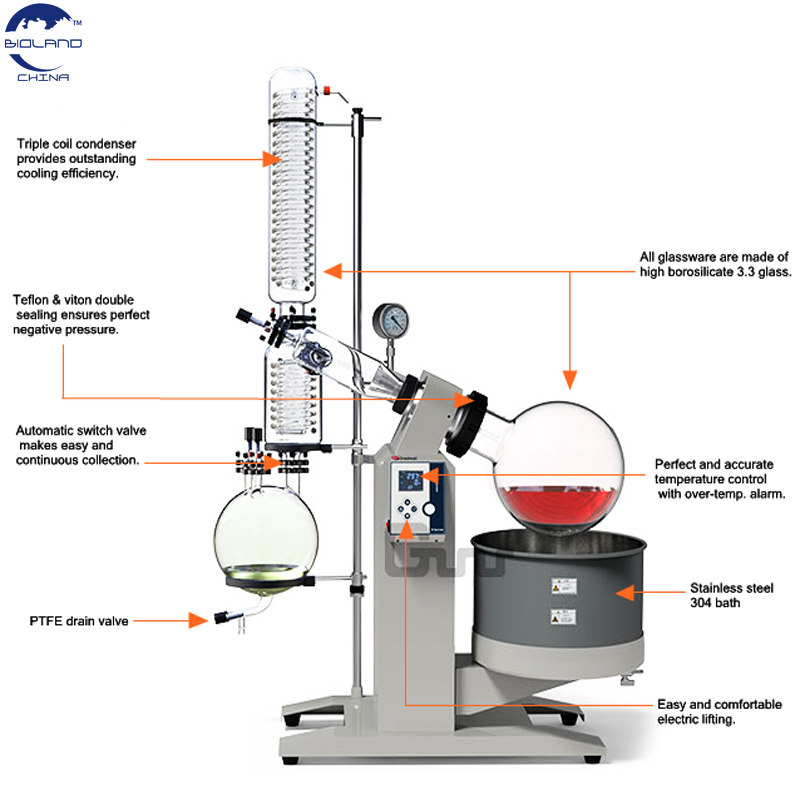

Main components: rotating bottle, vacuum system, heating bath, condenser, collection bottle
Common capacities: laboratory grade (1L-50L), industrial grade (larger capacity 100L), suitable for small-scale, medium scale, and large-scale production
Industry applications: chemical, pharmaceutical, food, environmental, biopharmaceutical and other drug synthesis, food processing, sample analysis

Characteristics

1, Double sealing with Teflon (PTFE) and fluorous rubber to ensure high vacuum degree.

2,Import advanced frequency conversion control system and temperature control system from foreign countries, it’s precise and reliable.

3,Vacuum transfer valve can collect continuously without affecting system vacuum and solvent distillation.

4,Water bath electric lifting and manual lifting is mating to use easily.

5,PTFE discharge valve is corrosion resistant and non-pollution.

6,Heating kettle outside protective jacket prevent scalding.

rotary vacuum evaporator with large capacity and caliber has large evaporation area. It is set in the water bath to reduce pressure, spinning when heated to make the solution evaporate efficiently. It can be used in the small and pidot-scale test and production of fields like biology, pharmacy, chemical industry and foodstuff. The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump.

application

Rotary vacuum evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be used for distillation, evaporation, concentration, extraction, separation and solvent recovery etc. Widely used in chemistry, pharmacy, lab and biology.
