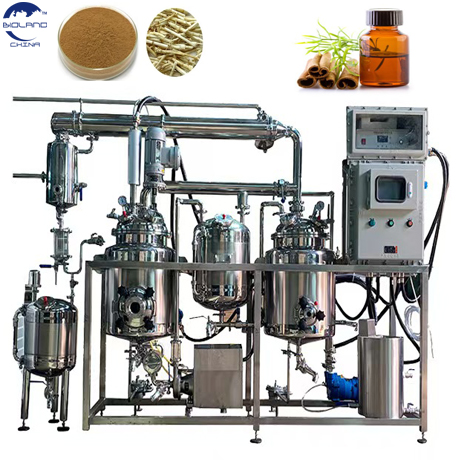

200L Herbs Low Temperature vacuum extraction machine for Vanilla Solvent Extraction

Product Description

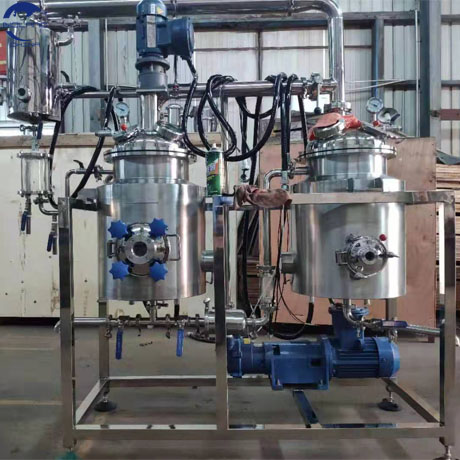

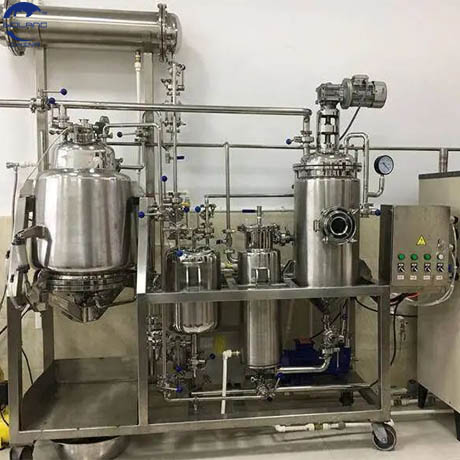

1.Herbs Low Temperature extraction machine is equipped with extraction tank, demister, horizontal condenser, concentration tank, vertical cooler, oil-water separator, liquid collection tank, vacuum pump, control cabinet and other supporting components.
2.Herbs Low Temperature extraction machine can realize the reflux extraction process, reduce the extraction and concentration time, and save the solvent.
3.Herbs Low Temperature extraction machine with unique oil-water separator design which integrates the vacuum conversion function into one, so that the oil-water separation effect is better.
4.Herbs Low Temperature extraction machine Herb Tea Ethanol Extraction Machine made of glass for easy observation.

To watch more videos about this machine, please check our youtube channel:  https://youtu.be/QneNAZLeddk

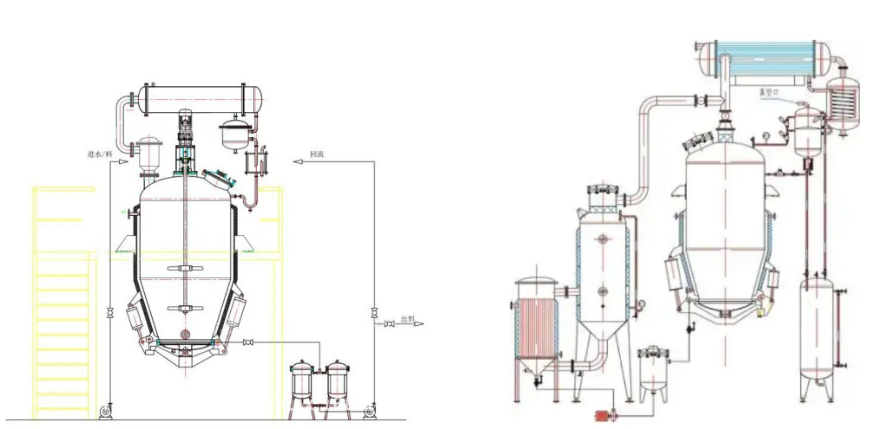

Multifunctional Herbs Low Temperature extraction machine composition: Multifunctional miniature extractor and concentrator machine mainly including the following unit: extractor tank,condenser ,oil/water separator ,multifunctional tank ,single effect evaporator,transfer pump,vacuum pump ,pipeline ,support frame and control panel.

1. vacuum concentrator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials. vacuum concentrator is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.  2. vacuum concentrator is suitable for the liquid evaporation&concentration in the industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.  3. At present, in order to improve the concentrated products' quality, concentrator widely adopts vacuum concentration process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.

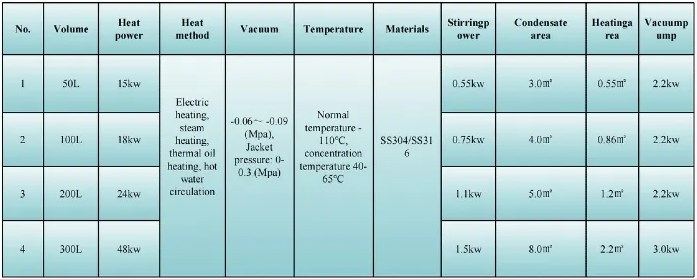

Technical data

Product Application:

Herbs Low Temperature extraction machine is used to doing concentrate for extract liquid, herb, plant, animal, foodstuff and chemical material. Especially suitable for small or medium sized bio factory, experiment factory, hospital, scientific department to develop new plant extract product, the new extract technology and concentrate,. Users can choose steam heating or electrical heating.
