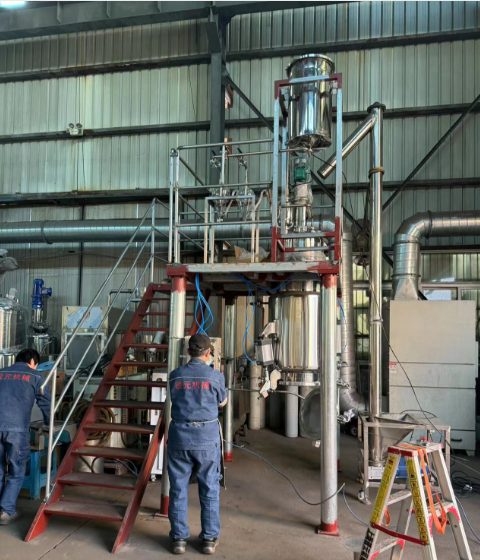

500L herbal extraction plant

Product Introduction

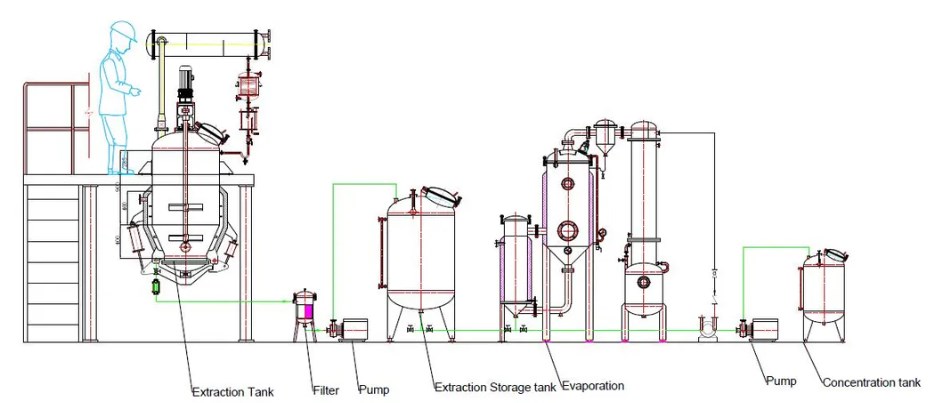

The Herbal Extraction Plant is a closed pharmaceutical grade equipment that integrates extraction, concentration, and solvent recovery. The mainstream models have a capacity ranging from 10L to 1000L and support various processes such as water extraction/alcohol extraction/ultrasonic/hot reflux. It complies with international certification standards such as GMP, CE, and ISO.

Herbal extraction concentration equipment orherbal extraction plant  is a key equipment for the production of traditional Chinese medicine, plant extracts, health products, and cosmetic raw materials. It is used to selectively enrich effective ingredients (such as saponins, flavonoids, essential oils, etc.) from natural plants. With the increasing demand for green manufacturing and energy conservation, modern equipment generally emphasizes closed circulation, low-temperature operation, automation control, and modular design to reduce solvent loss, protect thermosensitive components, and meet the new GMP standards.

advantages

hot reflux extraction concentration unit: steam/thermal oil heating method, large solvent circulation, energy saving of over 50%, and a 10-15% increase in paste yield
ultrasonic assisted extraction equipment: ultrasonic cavitation heat generation+auxiliary temperature control heating method, extraction rate increased by 50-500%, time shortened, suitable for thermosensitive components
Soxhlet dynamic extraction concentration unit: steam/thermal oil heating method, integrating classic Soxhlet+dynamic reflux, and increasing conversion rate by more than 1 times

Parameter reference (50L configuration)
Extraction tank capacity: ≥ 50L, jacket heating area ≥ 1m ², working pressure at atmospheric pressure
Concentration temperature: adjustable from 40-80 ℃, vacuum degree -0.05 to -0.09 MPa
Material standard: SUS304 or 316L stainless steel, polished inner wall Ra ≤ 0.3 μ m, no dead corners
Intelligent control: PLC central control, real-time temperature/vacuum display, parameter preset and recording
Additional features: CIP online cleaning system, electric slag gate, oil-water separator, solvent recovery

Application scenarios and industry coverage
Pharmaceutical field: traditional Chinese medicine formula granules (Huangqi, Licorice, etc.), plant medicine intermediates (Boluohuijian, Ginkgo flavonoids)
Food and Health Products: Goji Berry Juice, Blueberry Juice Concentrate, Organic Barley Grass Powder, Fermented Herbal GABA Extract
Cosmetics ingredients: Aloe vera gel, Ginkgo biloba extract (antioxidant, anti-aging)
Special process: extraction of volatile oils (such as sandalwood and juniper), alcohol precipitation (oral solution)
