vacuum extraction equipment

Product Details

Vacuum extraction equipment creates an environment below atmospheric pressure and utilizes pressure differences to achieve processes such as substance extraction, concentration, drying, or purification. The core principle is to use vacuum conditions to lower boiling points, reduce oxidation, or improve reaction efficiency.

Vacuum extraction equipment is a device that uses a vacuum environment for extraction, separation, or processing, and is widely used in laboratories, industrial production, and other fields

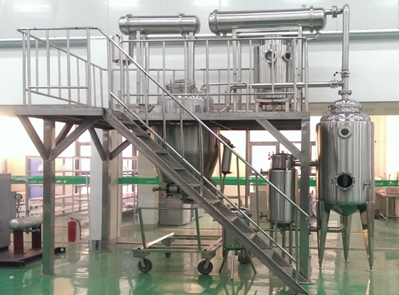

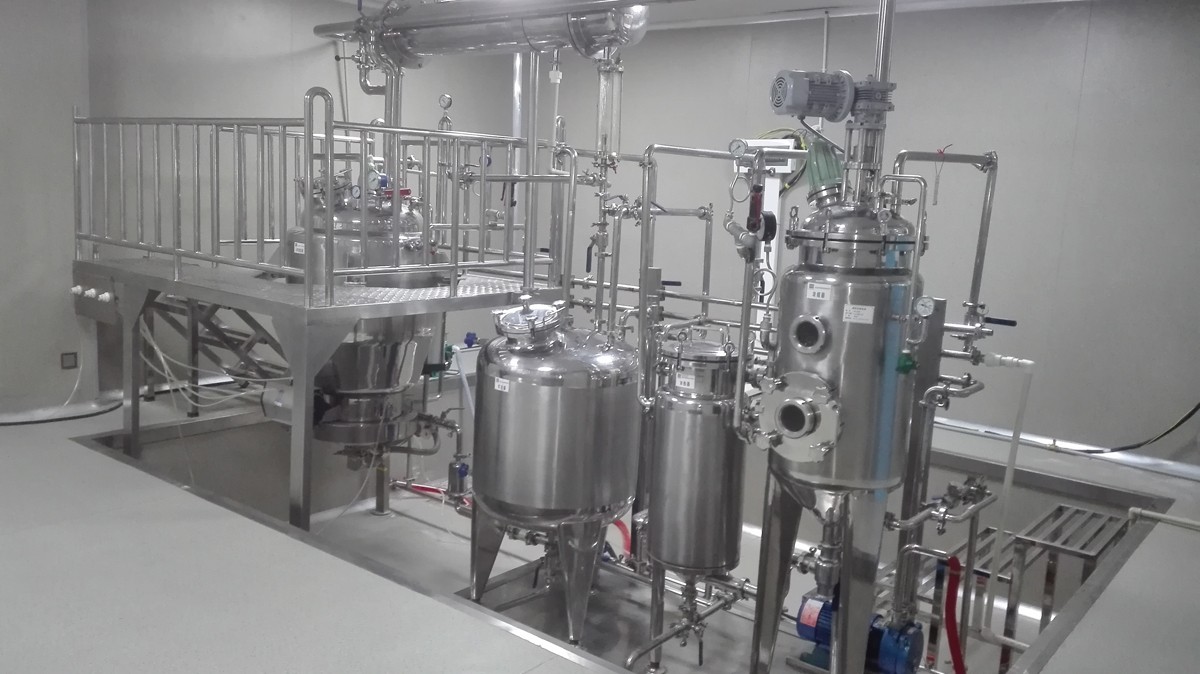

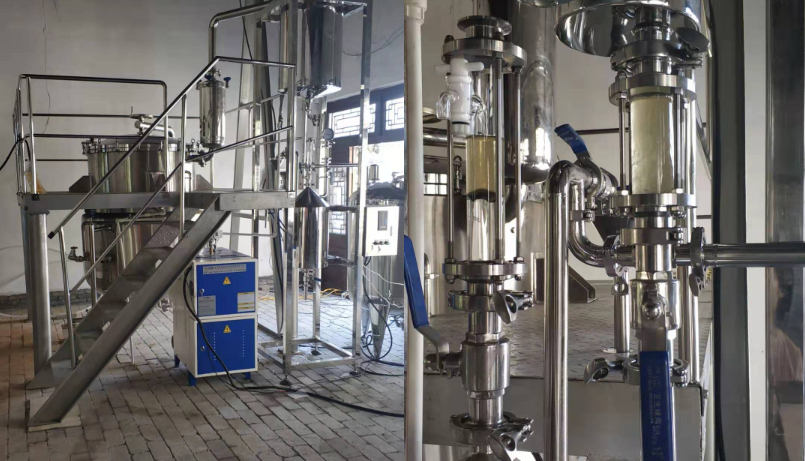

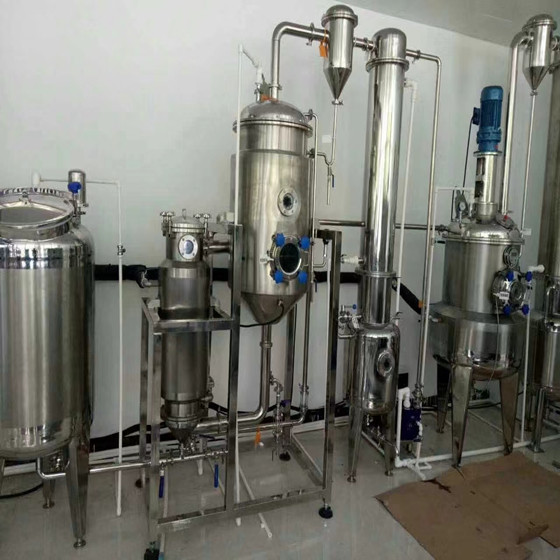

Vacuum extraction distillation equipment reduces system pressure to boil substances at lower temperatures, thereby avoiding damage to thermosensitive components caused by high temperatures and improving separation efficiency. This type of equipment has important applications in petroleum refining, food processing (such as essential oil extraction), chemical synthesis, and other fields

Vacuum extraction distillation equipment is a device used for extraction and distillation under reduced pressure conditions. It is widely used in chemical, food, pharmaceutical and other fields, and can effectively separate high boiling point or thermosensitive substances.

Product Feature

A. Pre-treatment System( pre-heat &distillation system) , remove particles and water content.
B. Catalyst system: Catalyst Reactor, blender;
C. Distillation system: distilling tower, distilling kettle, heater unit, circle pump;
D. Cooling system: refrigerating machine, water pump, water tank, cooler, Condenser;
E. Vacuum System: depends on actual need(normal pressure & negative pressure).
F. storage tanks:herbal liquid Temporary storage tank(optional)
G. Controlling system: all kinds of gauge (vacuum gauge, pressure gauge etc.), temperature controlling system and electrical controlling system.
H. Pre-Filtering System: connect our filter remove more impurities

The vacuum extraction distillation equipment achieves effective separation and extraction of high boiling point and thermosensitive substances through depressurization technology. When selecting, it is necessary to refer to the parameters and certifications (such as ISO, CE) of different equipment based on factors such as processing capacity, material characteristics, and accuracy requirements. For industrial applications, attention can be paid to energy-saving multi effect equipment; The laboratory scenario focuses on portability and automation level.

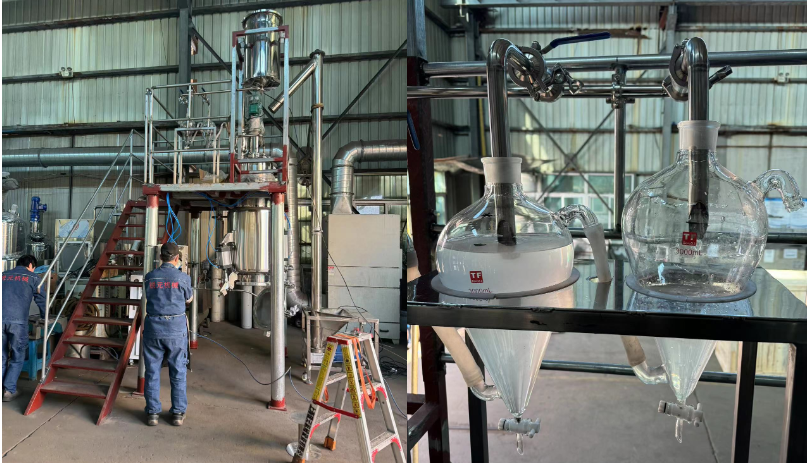

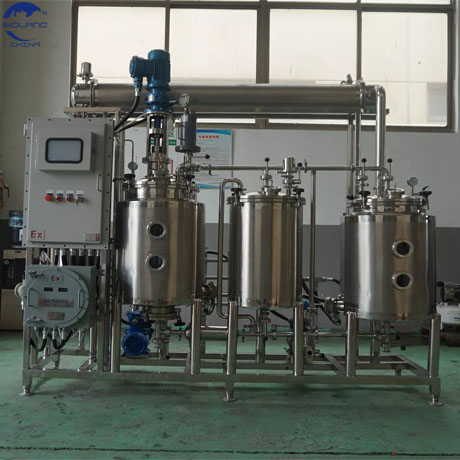

Ethanol vacuum distillation recovery equipment
1)Industrial grade stainless steel material, used for alcohol recovery and ethanol purification, equipped with evaporation tower and condensation recovery system
2)Support customization of different production capacities, suitable for solvent recovery scenarios in the pharmaceutical, food processing, and chemical industries
Product Advantage
1.Low temperature operation: Vacuum environment reduces the boiling point of materials and protects thermosensitive components (such as natural extracts and pharmaceutical raw materials)
2.Efficient and energy-saving: Compared to atmospheric distillation, it reduces energy consumption, has a high solvent recovery rate, and lowers production costs
3.Flexible adaptation: Corresponding specifications are available from laboratory trials to industrial production, supporting customized design
4.Protecting thermosensitive ingredients: Vacuum low-temperature conditions prevent the decomposition of effective ingredients, suitable for extracting thermosensitive substances such as natural products and pharmaceuticals.
5.Environmental protection and low pollution: low solvent consumption, no high-temperature heat source, in line with green production requirements.

6.Low temperature distillation: under vacuum environment to avoid decomposition of active ingredients, suitable for extracting high-purity natural products

Main application areas
Petrochemical industry: used for vacuum distillation of crude oil, separating heavy oil and residue, and improving the yield of light oil.
Food and Beverage: Extract essential oils (such as lavender and eucalyptus leaf essential oils), concentrate fruit juice, etc., to protect thermosensitive ingredients.
Medicine and Chemistry: Extraction and Purification of Thermally Sensitive Drug Intermediates and Organic Synthesis Products

Common laboratory basic equipment, suitable for extraction and concentration experiments in chemistry, universities, and research institutions, supporting vacuum distillation process
