soxhlet extractor industrial Herbal Tea Ethanol solvent Extraction machine

Product Description

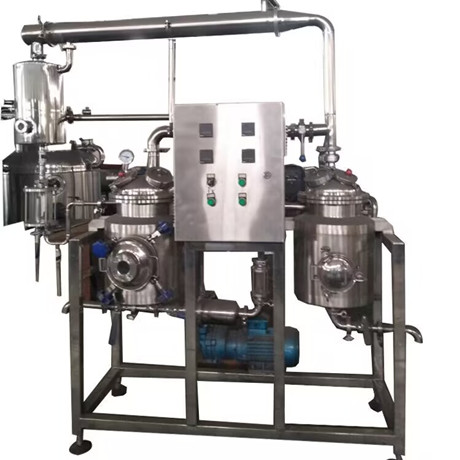

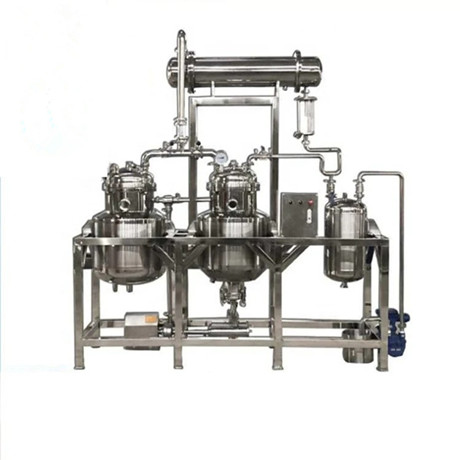

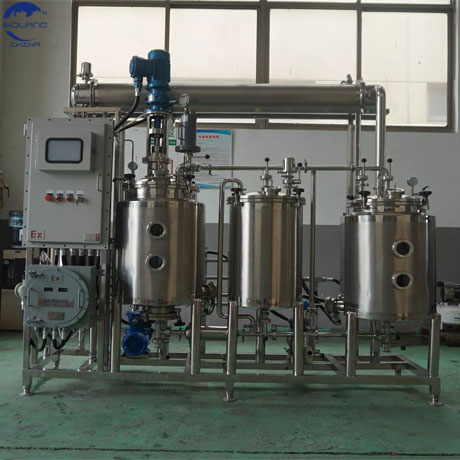

1soxhlet extractor industrial solvent Extraction machine  is equipped with extraction tank, demister, horizontal condenser, concentration tank, vertical cooler, oil-water separator, liquid collection tank, vacuum pump, control cabinet and other supporting components.

2.Aromatic Oil Herbal Solvent Hot Reflux Concentration Extraction can realize the reflux extraction process, reduce the extraction and concentration time, and save the solvent.

3.soxhlet extractor ,industrial solvent Extraction machine with unique oil-water separator design which integrates the vacuum conversion function into one, so that the oil-water separation effect is better.

4.  soxhlet extractor ,industrial solvent Extraction machine made of glass for easy observation.

Key Features
1) Extraction system is equipped with a reflux condenser, reflux cooler, oil-water separator that can recover aromatic oil in materials in an effective manner.

2) Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank which is more secure for organic solvent extraction and concentration.

3) Units are equipped with outer circular evaporating concentrator with a more concentrating efficiency, concentration ratio reaching 1.1 ~ 1.38.

4) Can be applied to water, alcohol and solvent extraction and serve as pilot plant testing equipment for natural herb extraction. Suitable for extraction and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, pharmaceutical factory and food industry.

5) It combines multi-functional extraction, vacuum concentration and organic solvent recovery as a whole and simplify operations with functions of heat reflux circular extraction, concentration, conventional extraction, concentration, water sedimentation (alcohol sedimentation).

6) Unit parts contacting materials are made of stainless steel that works in negative pressure, ordinary pressure and positive pressure conditions.

7) Low temperature concentration ensures product quality. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, saves energy and improves efficiency.

8) Dregs leach through the digestion basket to greatly improve the working environment and efficiency.

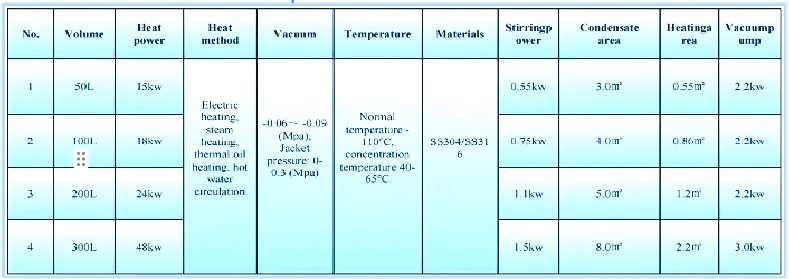

Technical description

Remark :above model just for reference ,we can do according to client's requirement customize,More options of 20L ,30L,50L,100L,200L,500L ,1000L ,2000L ...are available. Always welcome your inquiries.

Application
