Pilot Plant Lab and Production Tail Gas Scrubber

Product Description

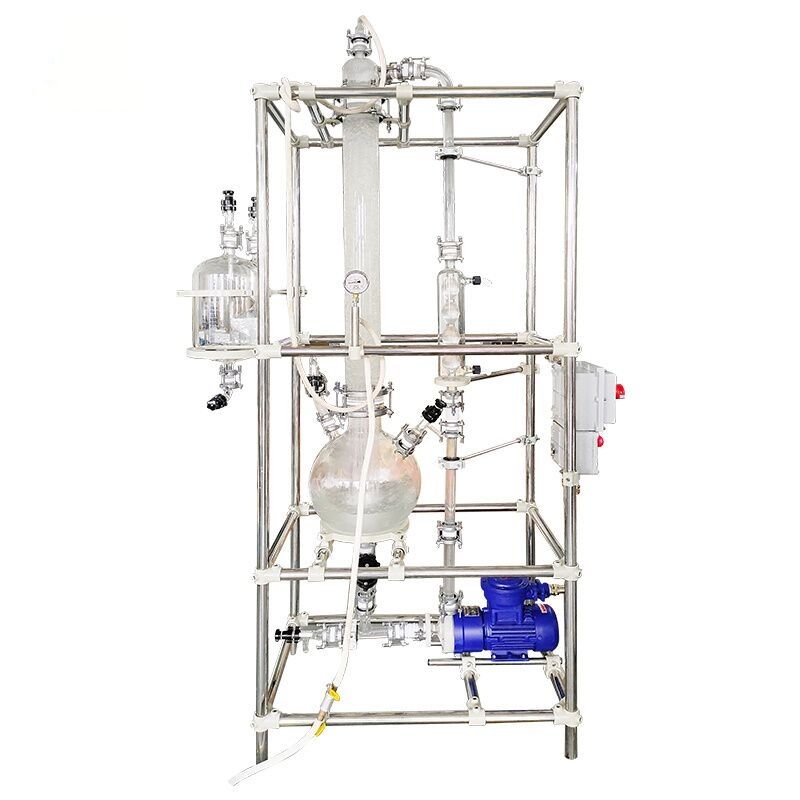

Laboratory scale gas scrubber for use in many air and exhaust cleanup tasks. Gas scrubbing takes place when the exhaust enters the inlet in the round bottom flask and travels upward through the absorption column. The scrubbing fluid is pumped from the round bottom flask upwards into the shower head adapter and then flows counter-current to the exhaust gas through the packed column thereby causing intensive contact between the two. Scrubber can be used by creating either a positive flow through the reaction vessel using a carrier such as nitrogen, or by connection of a vacuum source to the column adapter.

1. Water spray system, good spray effect
2. Prevent back absorption of absorbent
3. Built-in glass filler
4. The use of high vacuum ball grinding mouth has good air tightness

Work Process
After the circulation pump is turned on, the absorption liquid is pumped into the shower from the round-bottomed flask via the condensing line through the circulation pump, sprayed from the tower cap down through the absorption tower and re-entered into the absorption tank, contact with the absorption liquid filled with glass filler, so that the gas and liquid are fully mixed, so as to achieve the purpose of absorption. If the temperature of the exhaust gas is high, the condensing pipe needs to be connected to cool the absorption liquid. This device can be carried out with an active absorption device, such as using nitrogen as a carrier gas, or vacuum to guide through the absorption device.
