50L jacketed Glass Solid phase catalytic synthesis reactor for chemicals industry

Product details

The Solid phase catalytic synthesis reactor for disassembly, cleaning and replacement. The reactor is equipped with replaceable tetrafluoroethylene filter plates, which can be used for stirring, filtration, suction filtration, peptide synthesis, crystallization, pyrolysis and other processes. the glass solid phase reactor, it has a wider application range and can be operated under positive pressure conditions.

 Solid phase catalytic synthesis reactor ,Double layered glass design, with the inner layer containing reaction materials, and can also be evacuated for stirring reactions; The interlayer can be connected to a heat source (frozen liquid, water or hot oil, or electric heating jacket) for circulating heating or cooling reactions; Under constant temperature conditions, the stirring reaction can be carried out in a closed glass reaction vessel under normal or negative pressure conditions according to usage requirements, and the evaporation and reflux of the reaction solution can be controlled.  https://youtu.be/GsYjJSPptf8

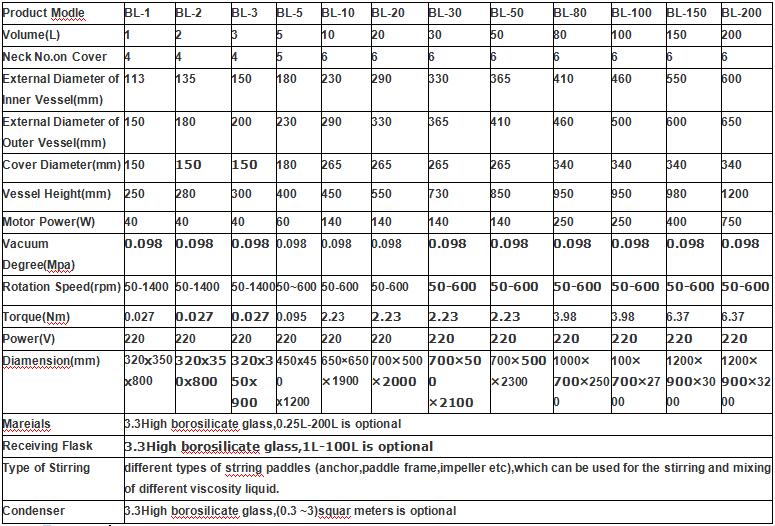

Technical parameters

Feature of Solid phase catalytic synthesis reactor

Using borosilicate glass (GG17 material), it has excellent physical and chemical properties.
Variable frequency speed regulation mixing, smooth and reliable operation, high torque, no sparks.
PTFE component sealing, proprietary technology, can maintain a good vacuum degree (around -0.095MPa) of similar products in the market, and is equipped with a debris collection groove.
The overall new stainless steel frame structure (with three-way and four-way connections made of stainless steel) is compact, sturdy and non slip, equipped with brake angle wheels, and easy to move.
Small or seamless PTFE discharge valve, kettle body and lid can also be customized according to customer requirements.
The heating (cooling) solution of the reaction interlayer can be completely eliminated after the reaction is completed without accumulation of liquid.
Whether for cooling or heating, we can produce matching products according to customer requirements.

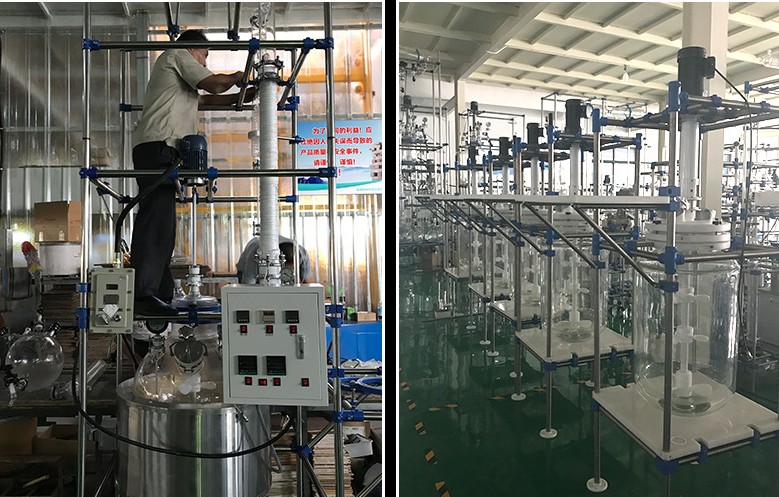

Bioland instrument  -Workshop

Bioland instrument-We're known as one of the most professional herbal extraction machine ,ultrasonic assissted extraction machine,ethanol extraction machine,Chemical crystallization filtration reactor，Chemical distillation purification reactor，low temperature drying equipment, mixing equipment manufacturers in China.
We warmly welcome you to buy cost-effective herbal extraction equipment for sale here from our factory. For more information, contact us now!!!
