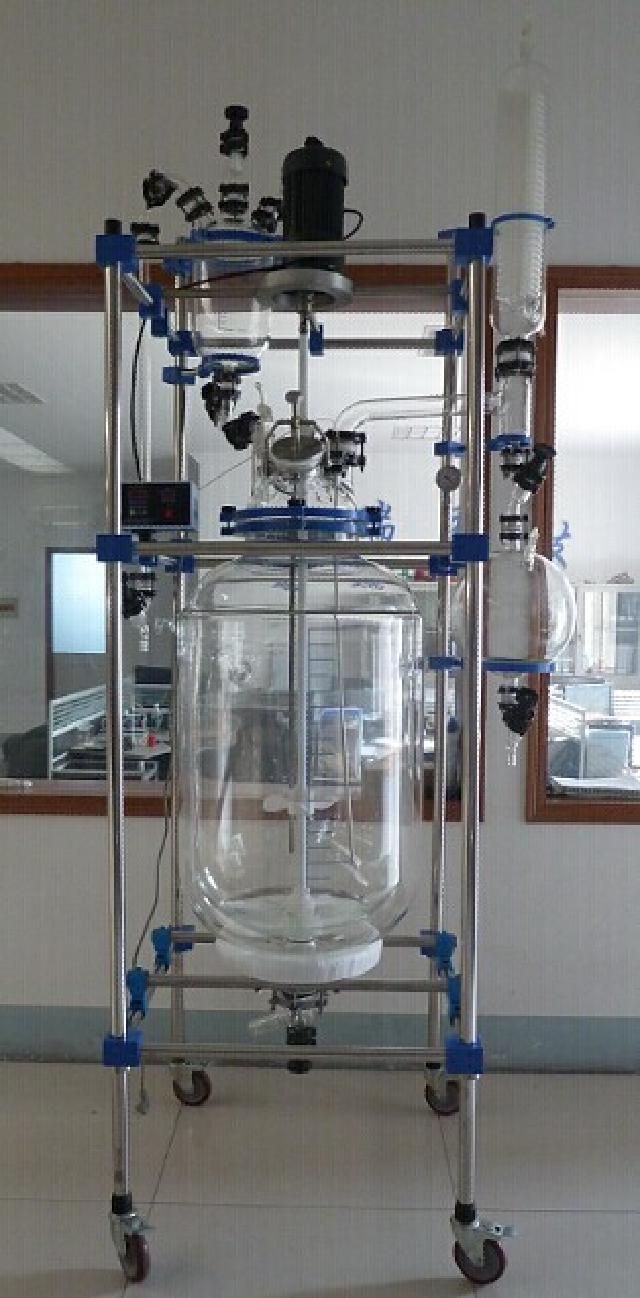

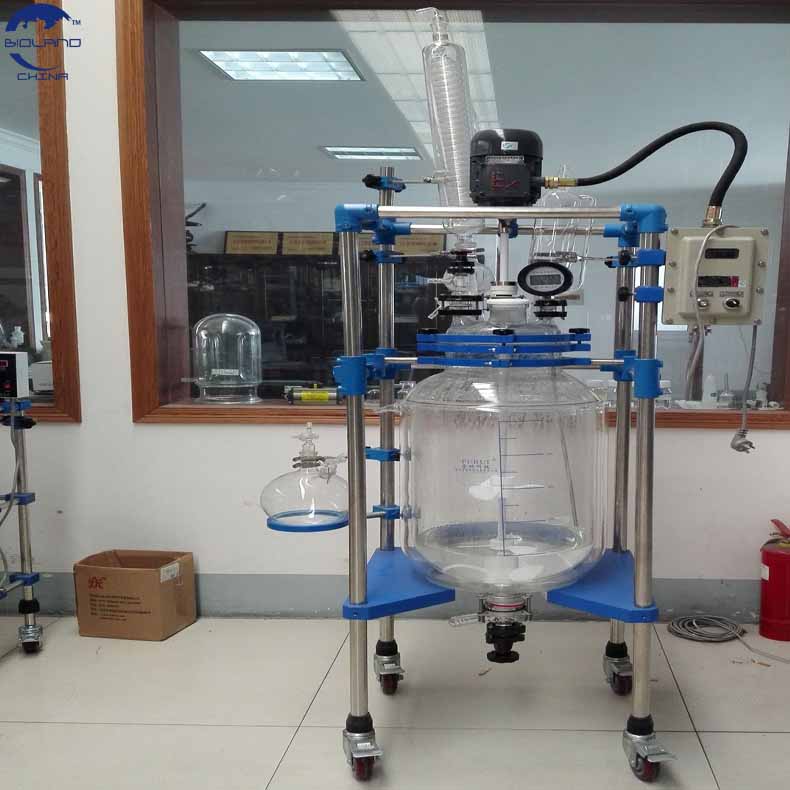

chemical pilot plant glass reactor

Product Introduction
The pilot plant glass reactor is a professional equipment used for chemical experiments and industrial production. It is made of GG17 borosilicate glass (Borosilicate Glass 3.3) material and has excellent physical and chemical properties

This device is an ideal equipment for modern chemical small sample, medium sample experiments, biopharmaceuticals, and new material synthesis. It is widely used in chemical synthesis, pharmaceuticals, fine chemicals, new materials R&D, biotechnology, and pilot-scale production.

Double layer Pilot plant glass reactors are widely used in various fields such as chemical engineering, pharmaceuticals, and food, especially in fine chemical synthesis, catalyst research, and biotechnology experiments, where they perform exceptionally well. It can not only withstand high temperature and high pressure, but also operate under reduced pressure conditions to meet different experimental needs.

working principle of pilot plant glass reactor

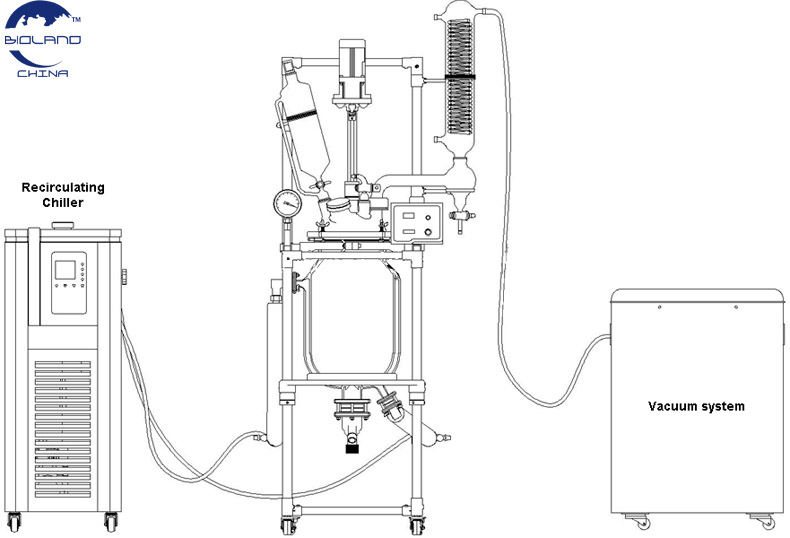

the pilot high borosilicate glass reaction vessel/double-layer glass reaction vessel is to inject a constant temperature (high or low temperature) hot solution or cooling liquid through the interlayer of the double-layer reaction vessel, to heat or cool the materials inside the reaction vessel at a constant temperature, and to provide stirring. This device can perform vacuum stirring reactions, distillation concentration reactions, separation and extraction, and reaction heating experiments. We can introduce tap water into the jacket to remove the reaction heat, and the materials can react in the reaction kettle. The evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the materials can be released from the discharge port at the bottom of the kettle, making the operation convenient. It is an ideal equipment for modern chemical small sample, medium sample experiments, biopharmaceuticals, and new material synthesis.

Main features of the pilot high borosilicate glass reactor
1. Variable frequency speed regulation and AC induction motor. Constant speed, no brushes or sparks, safe and stable, capable of continuous operation.
2. The entire glass instrument is designed and produced using GG17 | GG3.3 high borosilicate glass, which has good chemical and physical properties.
3. The interface of the glass interlayer can be heated by circulating hot oil, and low-temperature reaction can be carried out by passing frozen liquid.
4. It can react at room temperature and quickly dissipate the heat of reaction with tap water.

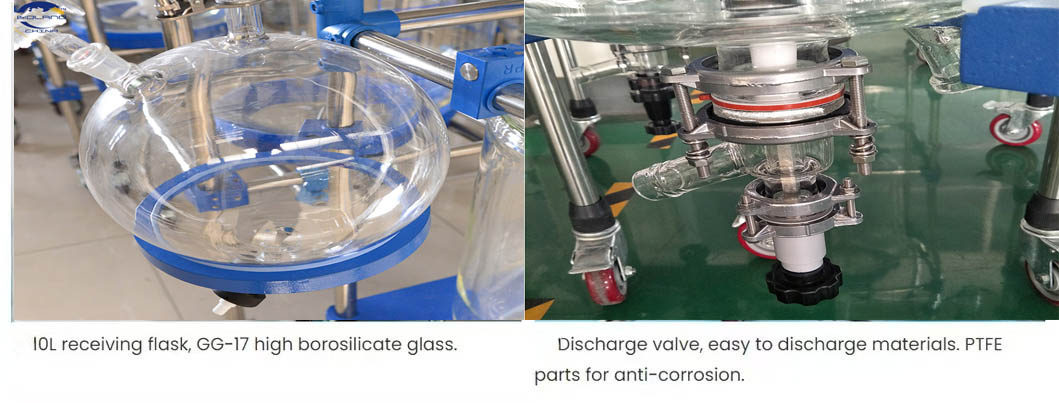

5. The material outlet is equipped with a flange and a PTFE valve, and the container is detachable for easy discharge of solid materials.

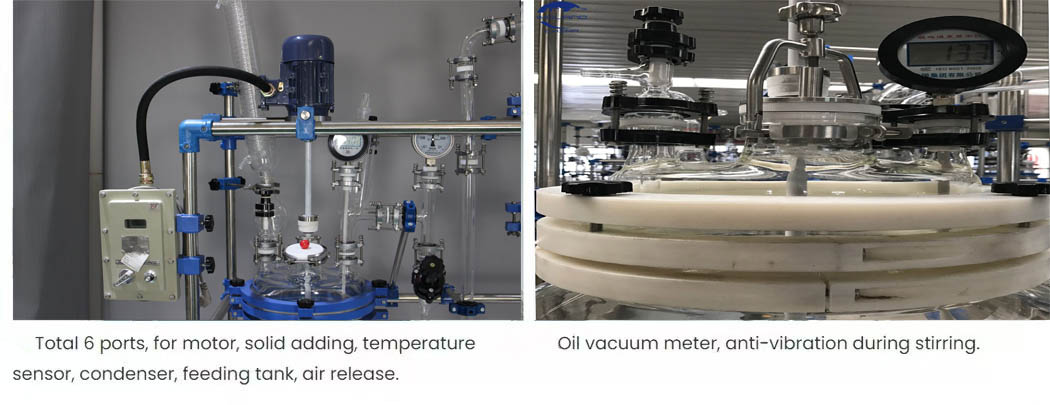

6. Five port reactor cover, with a large port design for easy cleaning, and standard port sockets for optional assembly of reflux and distillation synthesis devices.
7. The complete set of equipment is made of glass and polytetrafluoroethylene in contact with the reactants, with high strength and acid and alkali resistance, ensuring the success of the experiment.

The double-layer pilot plant glass reactor can truly achieve multi-purpose experimentation, meeting the various needs of different experiments. This equipment can perform:
1. Vacuum stirring reaction
2. High temperature and low temperature reactions
3. Constant speed mixing reaction
4. It can be distilled, refluxed, and concentrated
5. Negative pressure operation, liquid separation function
6. Distillation by assembling distillation columns
Assemble the glass reaction kettle production line according to specific requirements.
8. For plant extraction and concentration, there is a good process effect
9. Mixing and separation, equipped with a liquid separation device, with significant effects
10. Conduct reaction production of ultrafine powder to produce hygienic drugs that are visible and clean.
11. It can replace the rotary evaporator for high-purity material concentration, and is equipped with ultrasonic stirring to significantly reduce reaction time.
Whether separated or synthesized, it is convenient to add materials and easy to operate.

Features of jacketed glass reactor

1.A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2.Limit temperature of 250℃ for high temperature experiments, and limit temperature of -60℃ for low temperature experiments.
3.Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6.Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7.The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

The double-layer pilot plant glass reactor is a new type of glass reactor that has been improved over the years based on a single-layer multifunctional glass reactor. It meets the requirements of convenient high and low temperature, as well as rapid temperature rise and drop experimental processes. It is a major instrument for modern laboratory, chemical, pharmaceutical, and core material synthesis.

The standard components of the double-layer glass reaction kettle include: stirring motor, speed controller, condenser, continuous titration funnel, vacuum plug, vacuum suction head, thermometer sleeve, a set of reaction kettle frame, and 2-meter thermal conductive silicone tube. One kettle body, one hat, one set of discharge material, and one set of mixing and fixing seals.

Application field
Fine Chemicals: Chemical Synthesis, Catalyst Research, New Material Preparation
Biopharmaceuticals: synthesis of drug intermediates, biological fermentation, cell culture
Food industry: preparation of food additives, plant extraction and concentration
Research institutions: university laboratories, research institutes, teaching and experimentation
Cosmetics: Synthesis of Cosmetics Raw Materials and Development of Formulations
New energy: Co precipitation reaction of lithium battery precursor
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, bio-pharmaceutical and synthesis of new materials.
