Ointment Vacuum Homogenizer Emulsifier
2025-12-23
OINTMENT VACUM HOMOGENIZER EMULSIFIER Mixer is an efficient equipment integrating mixing, homogenization, emulsification, heating/cooling and vacuum deaeration. It is widely used in the cosmetics, pharmaceutical and food industries to produce creams, ointments, face cream and other high viscosity products, which can significantly improve product quality and stability.
This type of Ointment Vacuum Homogenizer Emulsifier achieves fine emulsification by heating and mixing oil and water phase raw materials in a pretreatment pot, and then using a vacuum pump to suck them into the main emulsification pot. Under high-speed stirring, homogenizer shearing, and scraping blade action, fine emulsification is achieved. At the same time, a vacuum environment can effectively remove bubbles, extend shelf life, and ensure that the product is delicate and uniform.
This Ointment Vacuum Homogenizer Emulsifier device is suitable for various industries:
Cosmetics: face cream, lotion, lipstick, shampoo;
Pharmaceuticals: ointments, syrups, injection matrices;
Food: mayonnaise, seasonings, butter;
Chemical industry: adhesives, dye additives, etc.
functions and structural characteristics of Ointment Vacuum Homogenizer Emulsifier
Multi functional integration: It has functions such as heating, cooling, stirring, homogenization, and vacuum degassing, and can complete the entire process in the same container.

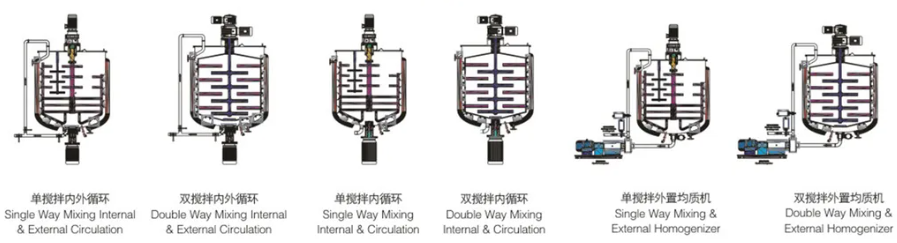

Dual mixing system:
Central anchor type mixing+planetary motion scraping blade (made of polytetrafluoroethylene material) to prevent material from sticking to the wall and improve heat transfer efficiency;
Install a high shear homogenizer at the bottom or top, with a speed of over 3500 rpm, to achieve micron level emulsification (as fine as 0.2-0.5 μ m).
Vacuum system: reduces oxidation and bubbles, enhances product stability and appearance texture
100L 300L 500L High Shear Vacuum Homogenizer Emulsifier Mixer of Cosmetic Cream Ointment
