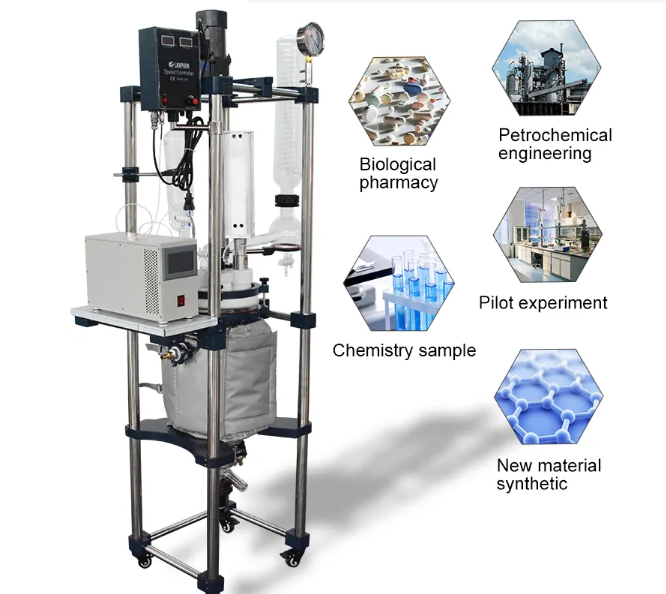

Chemical Equipment Ultrasonic Crystallization Reactor for Hermp Oil Extraction

Product Description

ultrasonic Crystallization filter jacketed glass reactor is vacuum filtered, and can also be used for concentration, distillation,
extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.

Products feature

 1.   The controller box is imported and easy to operate, digital display speed and temperature
 2.   Option filter plate, pore size from 0.1 to 200μm
 3.   All glass is GG17 borosilicate glass
 4.   Filter board can easy removeable
 5.   PTFE paddle or glass paddle for clients' option
 6.   PTFE bottom value with no dead angle design
 7.   PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
 8.   PTFE and special rubber compound seal, can withstand different solvents and maintain high vacuum degrees.
 9.   Stainless steel bracket system, easy to disassemble
 10.  Customized service according to customers' needs

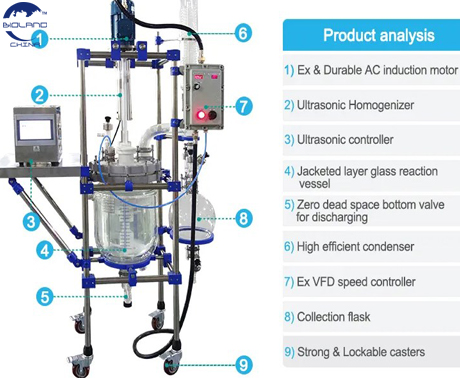

Product Parameters

1. Glass reactor with the ultrasonic device (ultrasonic power 2500W)---- can emulsify the sample with stirring to make the sample mix more fully
2. Filtration at the bottom of the glass reactor---- After the emulsification in the first step is completed, it can be filtered to keep the impurities on the filter plate, and the required liquid can be placed in the collection bottle on the right to better separate the materials.
3. The temperature control on the left is mainly to provide a cooling or heating source to the glass reactor body, which can be set according to the customer's temperature process.
4. The bottom of the glass reactor is designed with an electric lifting device---the customer has finished the experiment, which is convenient for the customer to disassemble the cleaning filter plate.
5. The rightmost cold trap + collection bottle - the purpose of this design is mainly to recover organic reagents and protect the vacuum pump.
Application

Ultrasonic Crystallization Reactor is an ideal equipment for lab-scale and pilot tests, biopharmaceutical, new drug research and development and new material synthesis. It is primarily used in small chemical industry, petroleum, metallurgy, coal, electronics, building materials, light industry and other fields, or the medium and small scale production.
