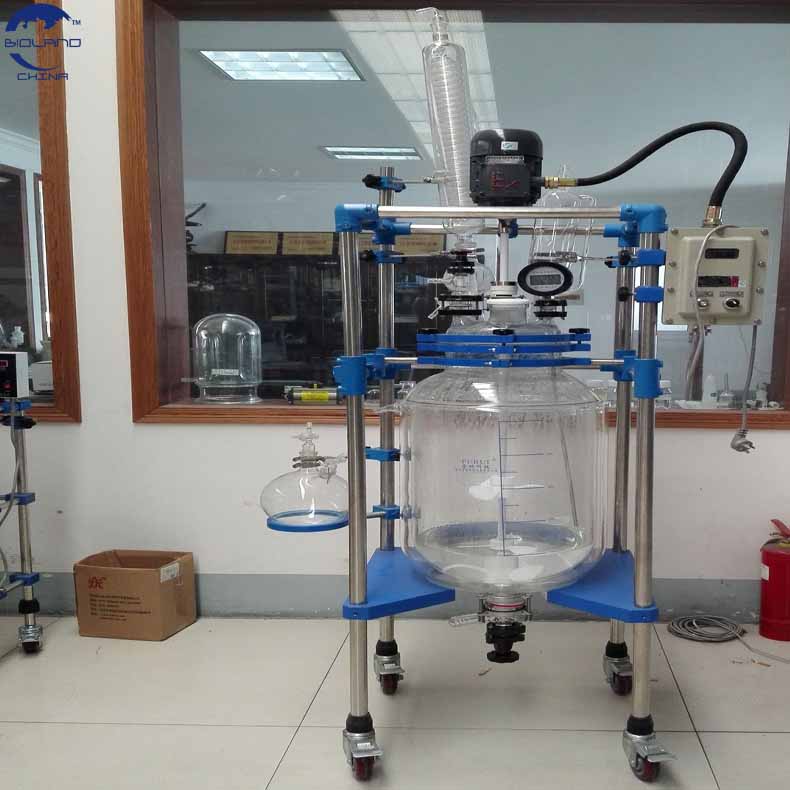

100L Double Layer Jacketed Glass Reactor for chemistry Use

Product Description

Jacketed Glass vacuum reactor is with double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inner layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperature experiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests.

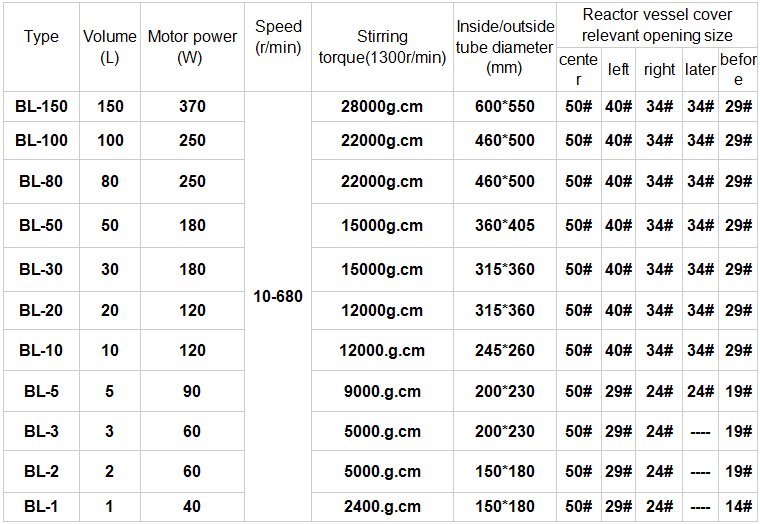

Product Parameters

Products feature

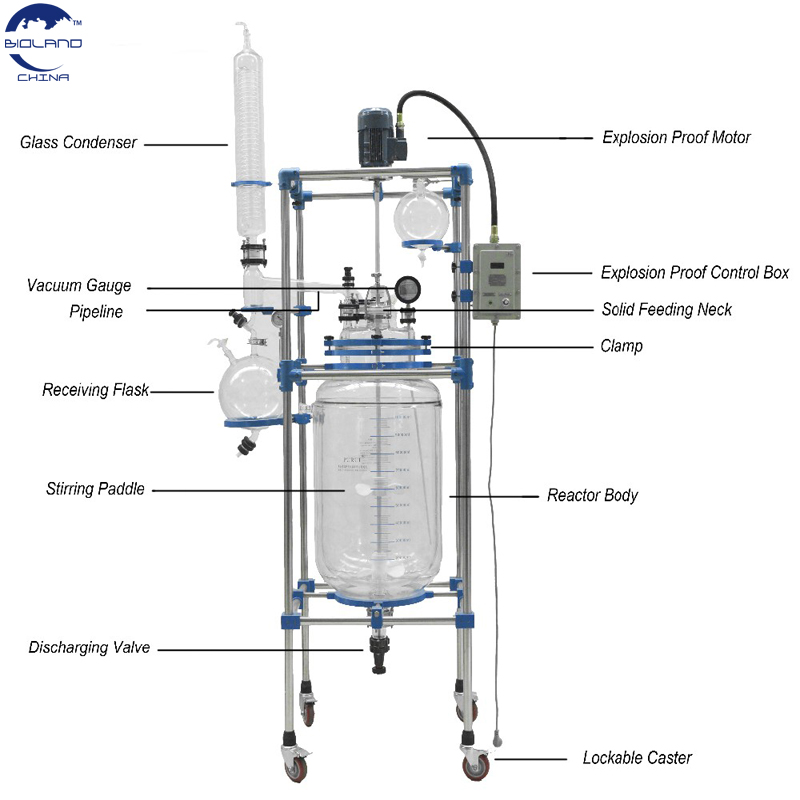

1. The whole stainless steel supporting frame, 4-6 necks on the reactor lid, such as distillation & reflux , liquid feeding , temp sensor , stirring & mixing , etc .
2. Glass reactor is made of G3.3 high borosilicate glass , with good chemical and physical properties .
3. Alloy steel mechanical seal,magnetic fluid seal, PTFE connector , to maintain a high precision seal in the working condition.
4. With PT100 sensor probe, high precision temperature measurement , small errors and high efficiency .
5.AC reducer motor, strong torsion , no noise , etc.
6.PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing.
7.PTFE discharge valve, movable interface , discharging and flushing completely and quickly.
8.Can be according to customer requirements, such sand core filter , PH meter , Ex motor , Ex control box and Ex temp.

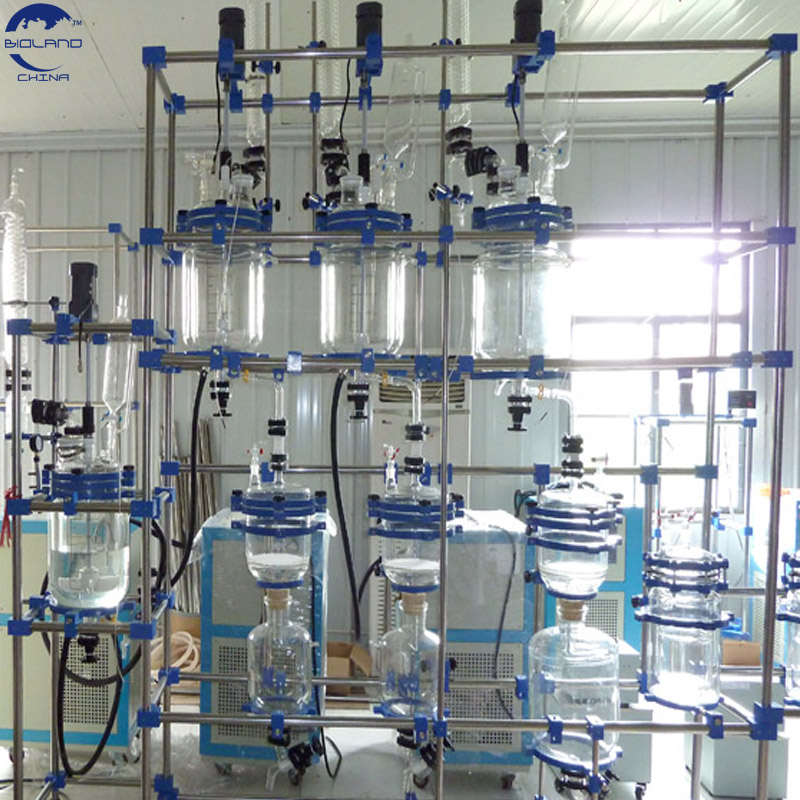

We professional manufacture different kinds of glass reactor systems.

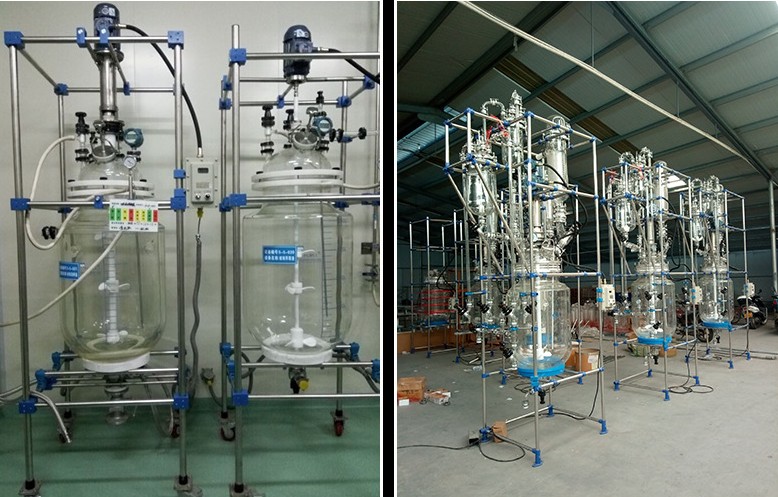

We have strong design, manufacture and site installation ability.
As a manufacturer not trading company, we can supply you with high quality , best price and fast delivery service.

Appliciation
