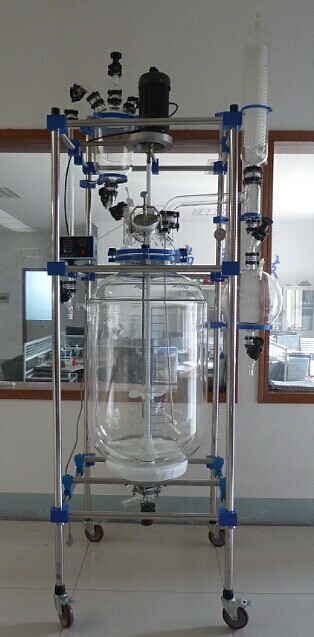

100l double layer pyrex glass chemical reactor

Product Description

double layer pyrex glass chemical Crystallization reactor combines function of reaction, and solvent recovery in one piece of equipment which is the best choice for ethanol extraction, solvent recovery, crystallization,.

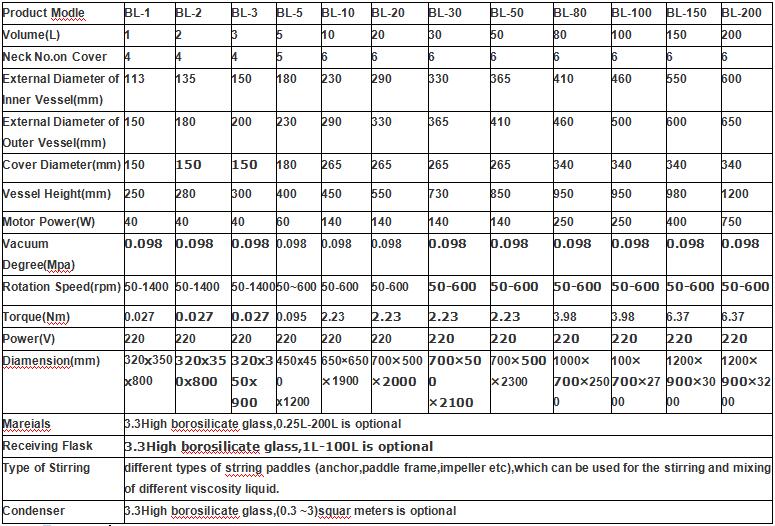

Technical Parameters

Products feature

1.The glass assembly uses G3.3 borosilicate glass for corrosion and heat resistance.
2.PTFE/ceramic bearing/alloy steel dynamic ring + ceramic static ring mechanical seal design, better guarantee the sealing performance of mixing dynamics.
3.Frequency conversion speed control, gear motor, constant adjustable speed, low noise, strong torque, safe and stable.

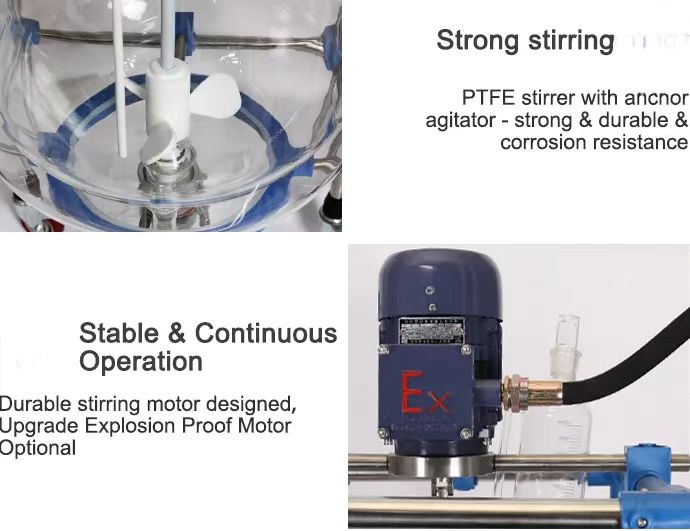

4.PTFE paddles for stirring and mixing of low to high viscosity liquids(stirring paddle type selectable).
5.PTFE Drain Valve, corrosion and heat resistant, no dead space, no sample buildup and quick drain or rinse.

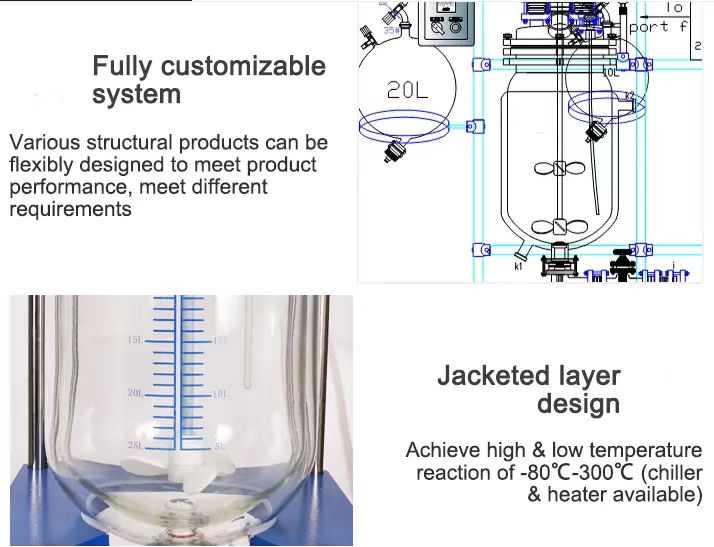

6.It can be expanded and customized according to specific needs of other functional devices.

Appliciation

double layer pyrex glass chemical reactor ,It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.
