Efficient features: Adopting large modulus spiral gear transmission to improve transmission efficiency; Extend the pressing time and improve the oil yield

Technical features
Distillation method: supports steam distillation, separated water distillation, subcritical low-temperature extraction, suitable for different plant raw materials
Material standard: The whole machine is made of 304/316L stainless steel, which meets the pharmaceutical industry standards and is corrosion-resistant and easy to clean
Intelligent control: touch screen temperature control+pressure monitoring+automatic fault diagnosis, even beginners can easily operate
Separation system: Laboratory grade glass multi pipeline oil-water separation, with an outlet pipeline diameter of ≤ 20mm, making essential oil collection more efficient
Energy saving design: Three layer tank structure (inner tank+heating layer+insulation layer), reducing heat loss and lowering operating costs

Additional services: Provide overseas engineer services, video technical support, and support for customized processing of raw materials

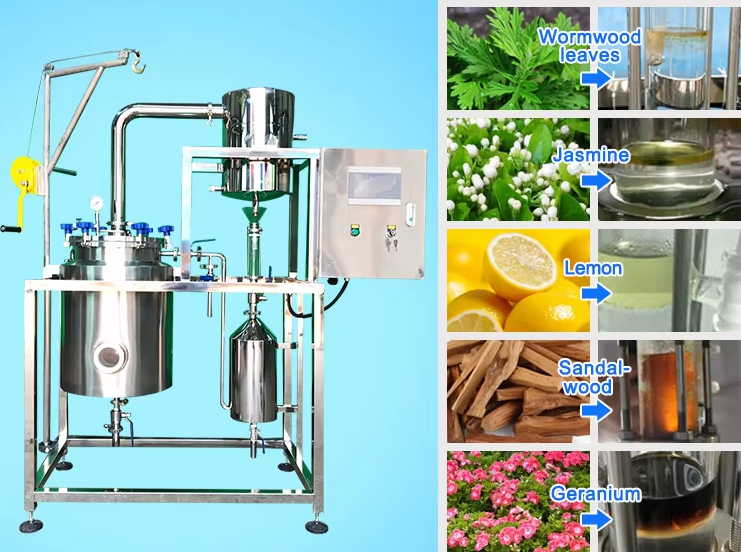

Equipment features: 1. This equipment uses steam water bath to extract materials through high-temperature immersion extraction.
2. The essential oil extraction equipment is a super small steam water bath thermal oil distillation and extraction device developed by our company based on the classic process of essential oil extraction, combined with an automated control system. Reasonable structural design and performance. Easy and convenient operation.
3. The equipment uses steam for indirect heating, which can quickly reach a high temperature state while ensuring cleanliness, safety, and high pressure.
4. If the process allows, quickly collect volatile oils and fats into the oil-water separator.
5. The oil-water separation adopts a laboratory high borosilicate glass multi pipeline design. The steam inlet pipeline has a diameter of about 60mm and adopts a multi tube combination form for extraction, condensation and cooling. The oil outlet pipeline has a diameter of less than 20mm, which facilitates the separation and collection of essential oils.
6. The equipment is equipped with a stirring system to further contact the medium inside the material, thereby improving the oil yield. The open cover structure on the device is very convenient for placing flowers, plants, and cleaning the equipment.

Core advantages:
1.Support steam distillation, temperature can be precisely controlled at 90-100 ℃ (the optimal distillation temperature for lavender essential oil)
2.Equipped with a glass multi pipeline oil-water separation system, the collection efficiency of essential oils is high
3.304/316L stainless steel material, in compliance with food grade standards, ensuring the purity of essential oils
4.Easy to operate, small footprint, suitable for home or laboratory use

Perfume extraction equipment is specialized machinery used to isolate aromatic compounds from raw materials like flowers, herbs, woods, and resins. Here's a comprehensive guide:

Main Types of Extraction Equipment

1. Steam Distillation Units

• Application: Most common for extracting essential oils from plant materials
• Capacity: Ranges from laboratory scale (1L) to industrial (1000L+)
• Key Components: Boiler, distillation chamber, condenser, separator
• Temperature: Typically 100-120°C

2. Solvent Extraction Systems

• Application: Extracting fragrances from delicate flowers (rose, jasmine)
• Solvents Used: Hexane, ethanol, supercritical CO₂
• Output: Produces concrete and absolute
• Equipment: Extraction tanks, filtration systems, solvent recovery units

3. Supercritical CO₂ Extraction Machines

• Application: High-quality, solvent-free extraction
• Advantages: No residual solvents, preserves heat-sensitive compounds
• Pressure: 3000-5000 PSI
• Temperature: 31-60°C

4. Cold Press Equipment

• Application: Citrus peel oils (lemon, orange, bergamot)
• Method: Mechanical pressing without heat
• Types: Expressers, centrifuges
