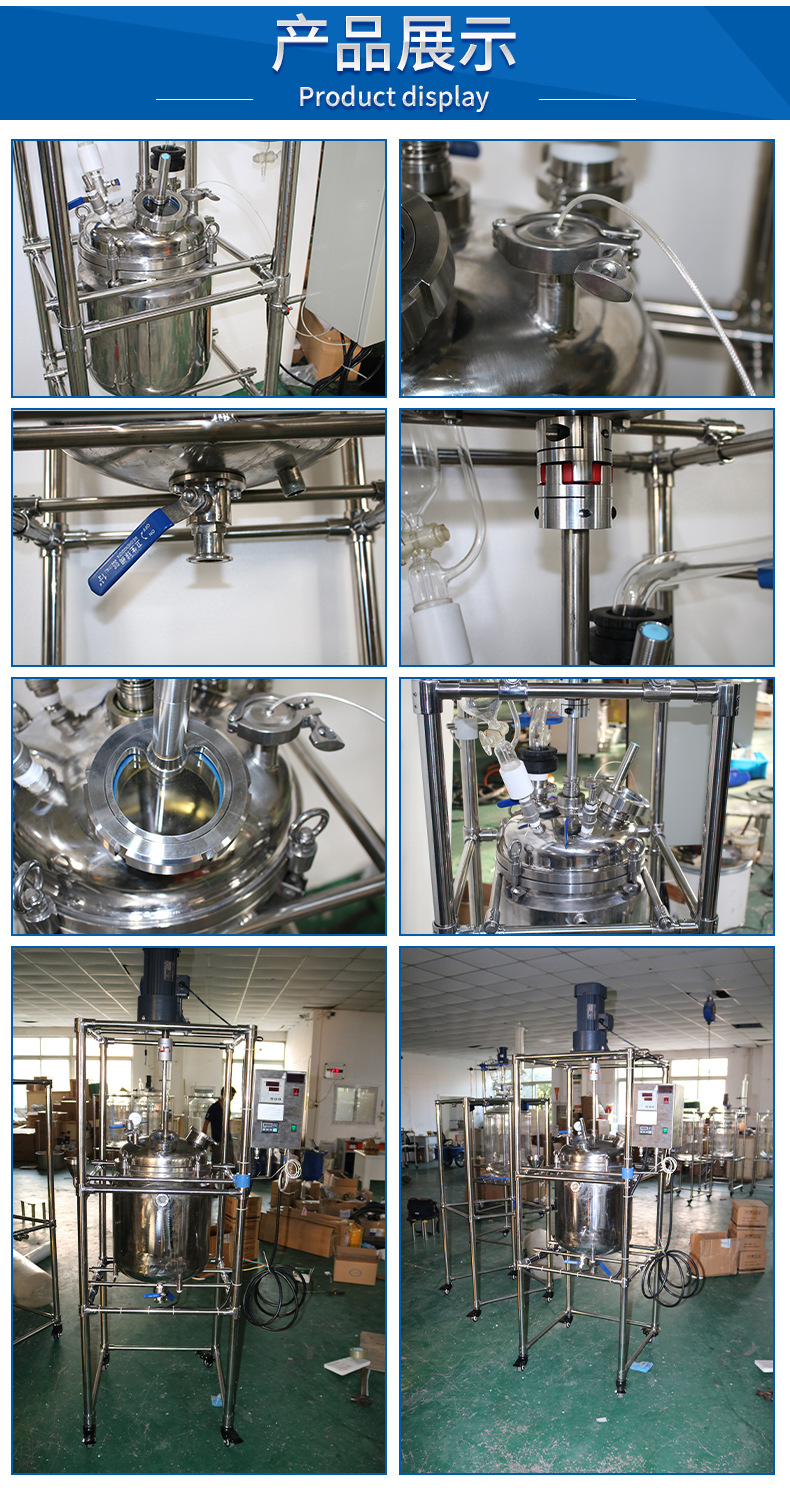

1.stainless steel chemical reactor volume: 5L-200L, working volume:~80-90%
2. Working temperature: - 20 ℃~300 ℃.
3. Working pressure: - 0.1 (Vacuum pressure)~1.6Mpa.
4. Equipment material: SS316,  SS304 stainless steel
5. Mixing power: 0.75KW-160KW;
6. Mixing speed of stainless steel chemical reactor: Low speed mixing: 0~300 rpm, reducer to slow down;
High speed dispersion: 0-1000-1500-2800pm, frequency converter speed regulation;
7. Mixing structure: inclined propeller type, anchor type, anchor frame type, spiral belt type, turbine type, dispersed disc type, combined type, etc;
8. Sealing structure: mechanical seal, packing seal, etc
9. Heating and cooling structure: outer jacket, outer half pipe, inner coil
The specific stainless steel chemical reactor equipment configuration and technical parameters are designed according to the product performance.

20L Anti-Explosion Hydrogenation Chemical batch Reaction Kettle for Chemical Synthesis
