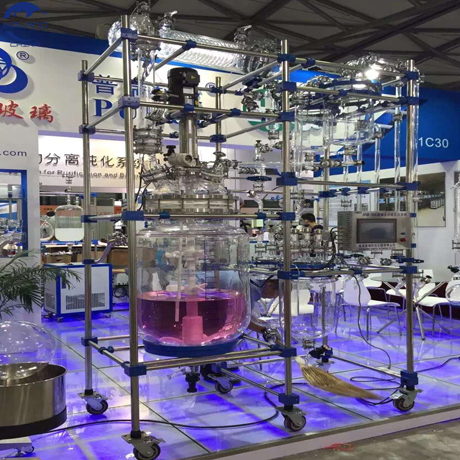

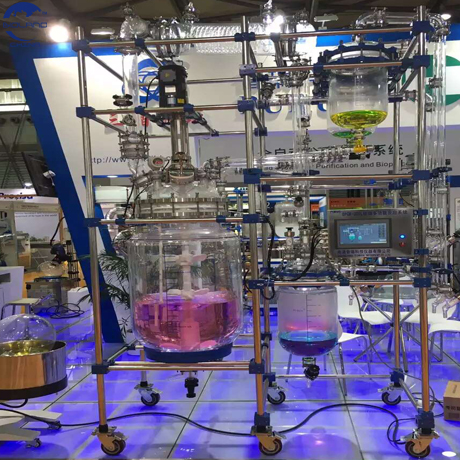

Glass Crystallization filter Reactor of pharmaceutical industry

Product Description

Integrated reaction and filtration of Glass Crystallization filter Reactor of pharmaceutical industry
Complete chemical reactions (such as synthesis and catalysis) and subsequent solid-liquid separation (such as filtration after crystallization) in a single container, reducing material transfer steps, avoiding cross contamination and product loss.
Glass Crystallization filter Reactor of pharmaceutical industry Support vacuum filtration, suitable for multi-step continuous processes such as concentration, distillation, extraction, crystallization, etc., especially suitable for the synthesis of high-purity pharmaceutical intermediates.

Key Materials and Design
1)Glass Crystallization filter Reactor Inert material: All contact areas are made of GG17 high borosilicate glass (temperature resistant -80 ℃~250 ℃) and PTFE coated stirring blades/filter plates to ensure chemical inertness, compatibility with strong acids, strong solvents, and biologically active substances.
2)Modular filter plate: optional filter hole size of 0.1~200 μ m, supports quick disassembly and cleaning, meets cGMP cleaning validation requirements.
3)Precise temperature control: The double-layer jacket design (Jacketed Glass) is combined with an external heating/cooling circulation system to achieve uniform temperature control of the reaction system (± 0.1 ℃)

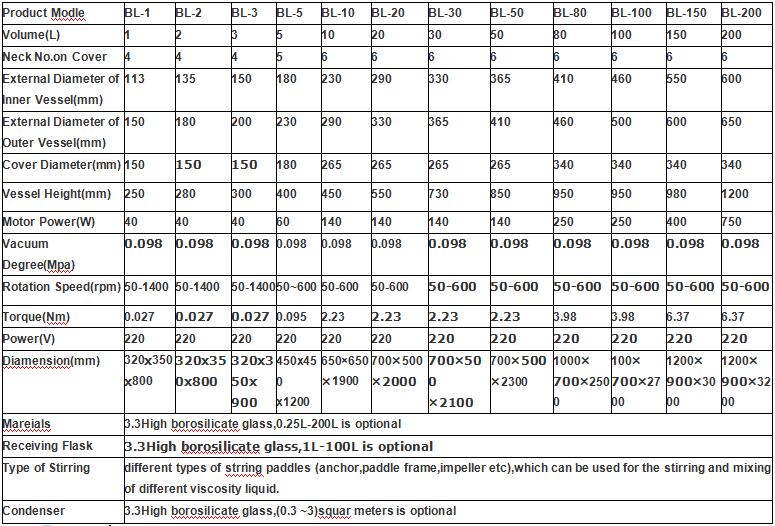

Specification

Application

jacketed glass crystallization filter reactor is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.

It's widely used in pharmaceutical and chemical industries, especially in drug synthesis, fine chemical industry, petrochemical process, new material synthesis, concentration, crystallization and other experiments.
