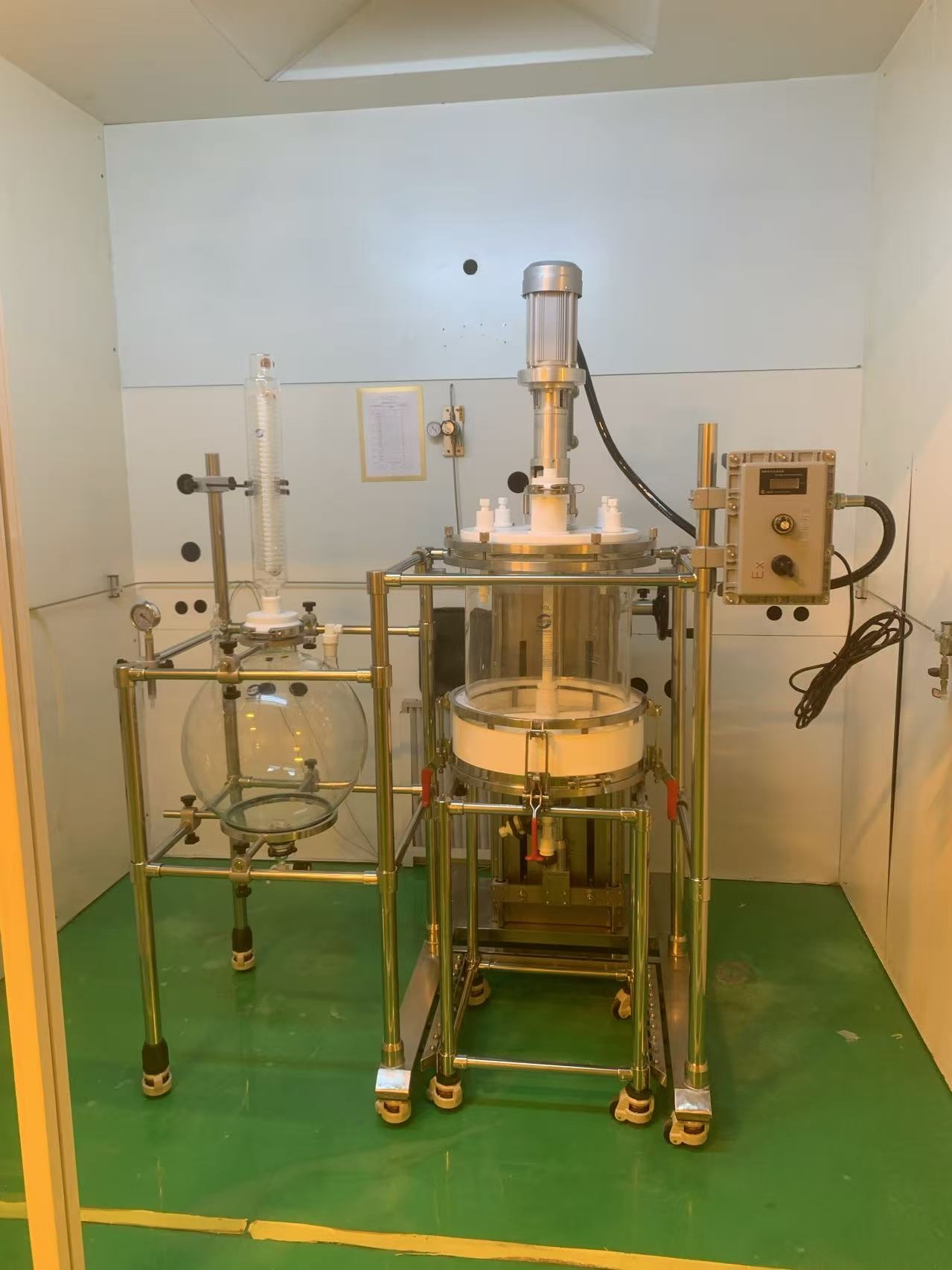

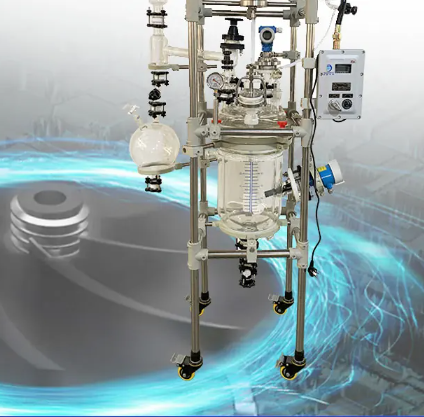

laboratory glassware jacketed glass crystallization filter reactor

Product Description

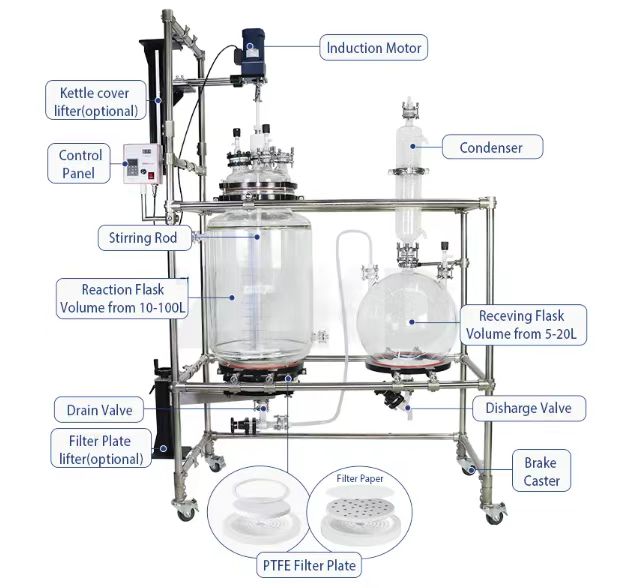

Crystallization filter reactor combines function of reaction, filtration and solvent recovery in one piece of equipment which is the best choice for ethanol extraction, solvent recovery, crystallization, isolation, and liquid & solid separations.

lab crystallization filter reactor for cbd isolate is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.

Feature

1. The whole stainless steel supporting frame, 4-6 necks on the reactor lid, such as distillation & reflux , liquid feeding , temp sensor , stirring & mixing , etc .
2. Glass reactor is made of G3.3 high borosilicate glass , with good chemical and physical properties .
3. Alloy steel mechanical seal,magnetic fluid seal, PTFE connector , to maintain a high precision seal in the working condition.
4. With PT100 sensor probe, high precision temperature measurement , small errors and high efficiency .
5.AC reducer motor, strong torsion , no noise , etc.
6.PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing.
7.PTFE discharge valve, movable interface , discharging and flushing completely and quickly.
8.Can be according to customer requirements, such sand core filter , PH meter , Ex motor , Ex control box and Ex temp.

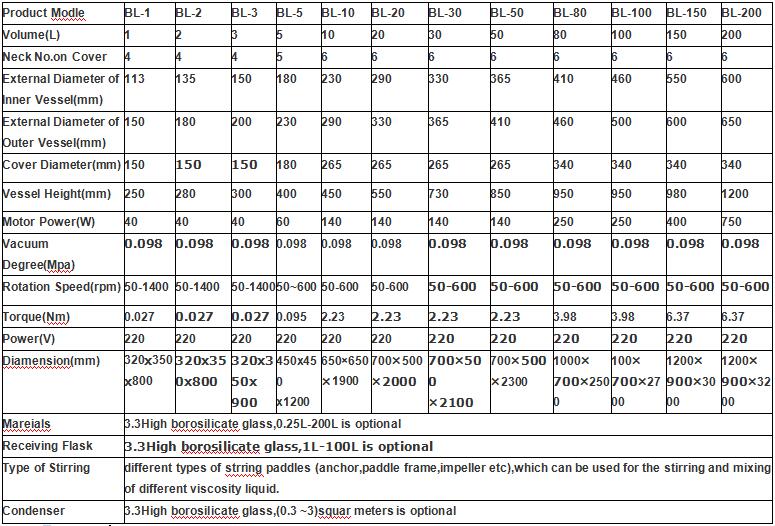

Technical Parameters

WHY CHOOSE US

Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of crystallization reactor machine.

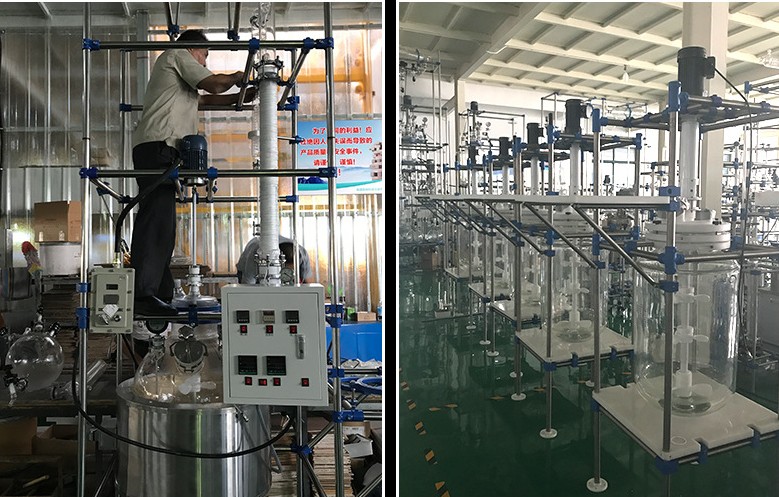

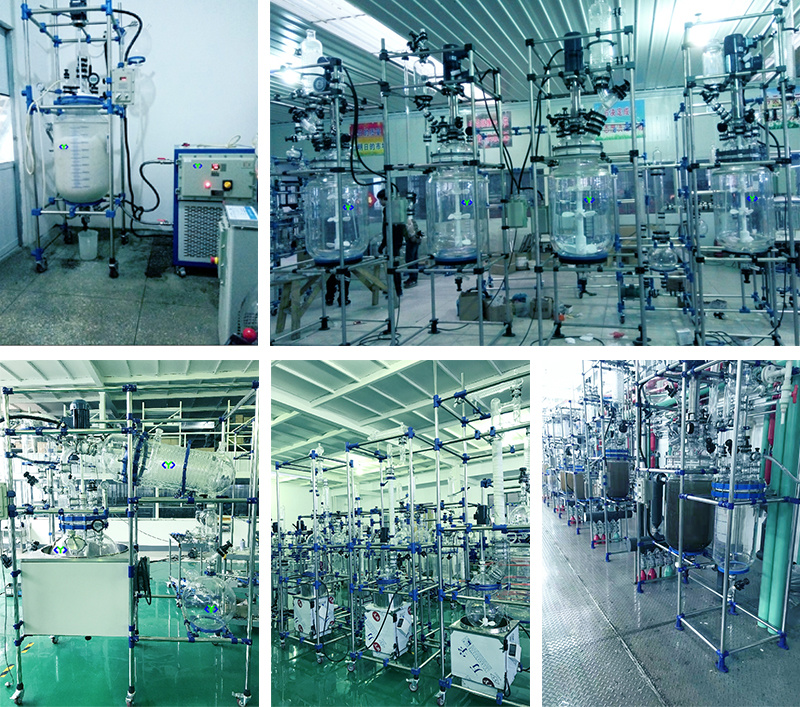

Project Case
