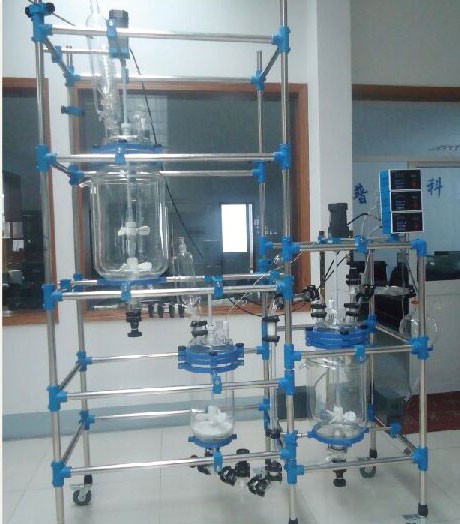

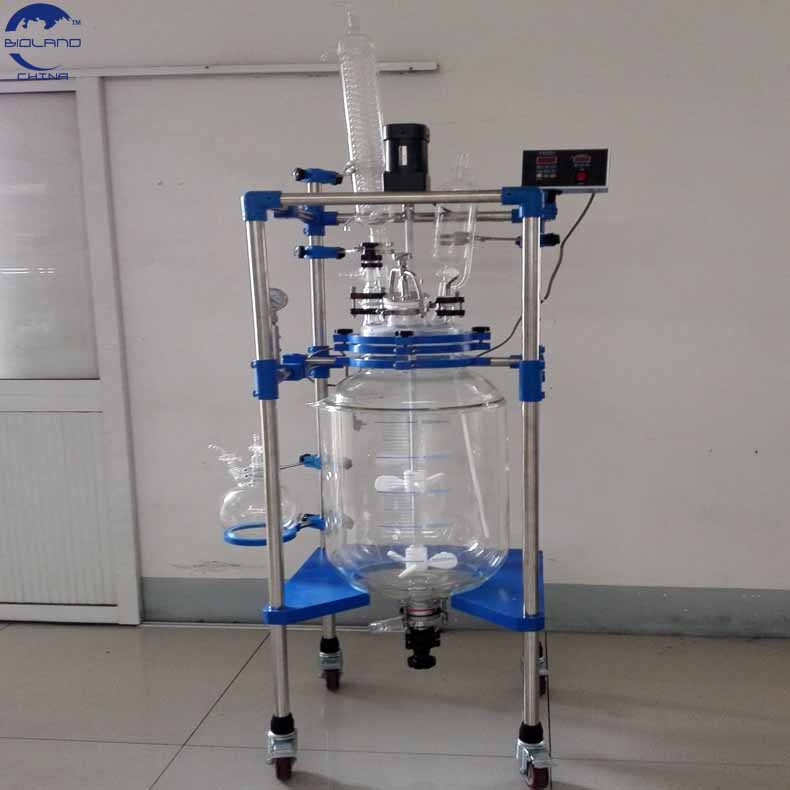

50L Factory Price chemical Jacketed Glass Crystallization Reactor

Product Description

The 50L laboratory chemical glass crystallization reactor for oil isolates is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.

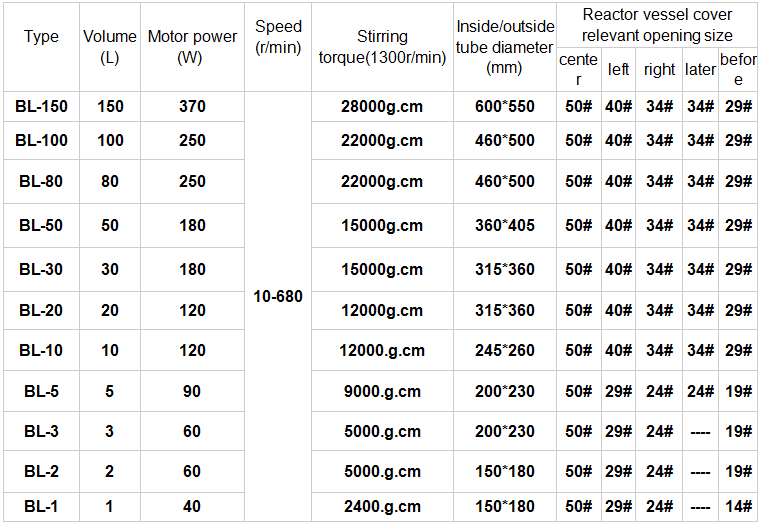

Product Parameters

1. The controller box is imported and easy to operate, digital display speed and temperature
2. Option filter plate, pore size from 0.1 to 200μm
3. All glass is GG17 borosilicate glass
4. Filter board can easy removeable
5. PTFE paddle or glass paddle for clients' option
6. PTFE bottom value with no dead angle design
7. PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
8. PTFE and special rubber compound seal, can withstand different solvents and maintain high vacuum degree.
9. Stainless steel bracket system, easy to disassemble
10. Customized service according to customers' needs

Application

The crystallization filter reactor is s a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It suitable for the chemical reaction and physical process under the synthesis, catalysis or other solid liquid of the laboratory / factory, so that one or more steps can be carried out in the same kettle (such as filtration after the completion of the reaction), thus reducing the drift of material measurement and reducing the transfer times of the reaction substrate. It is used in such fields as pharmaceuticals, peptide synthesis, tobacco research and so on.

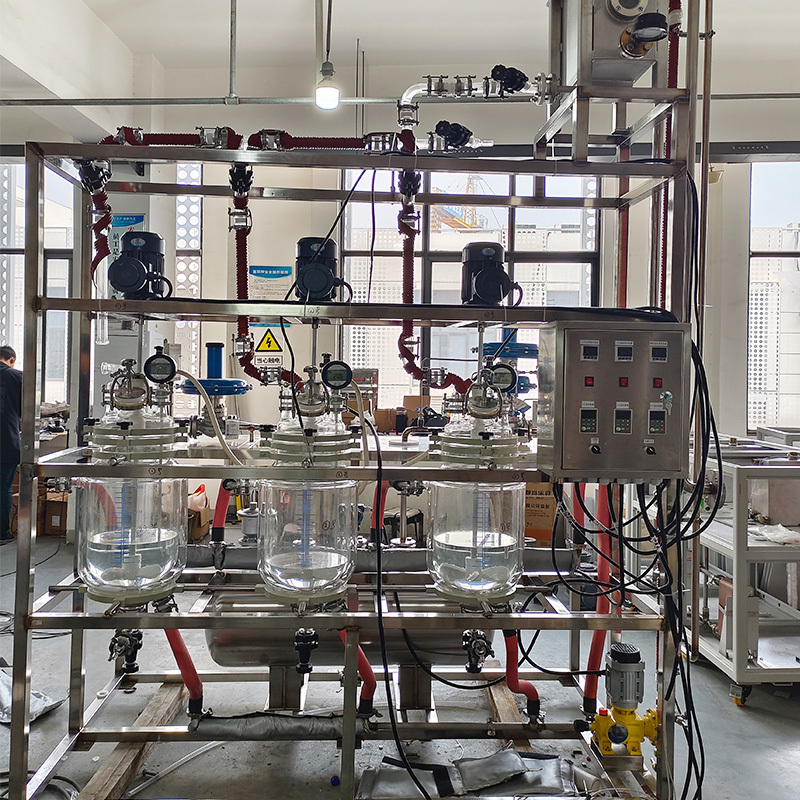

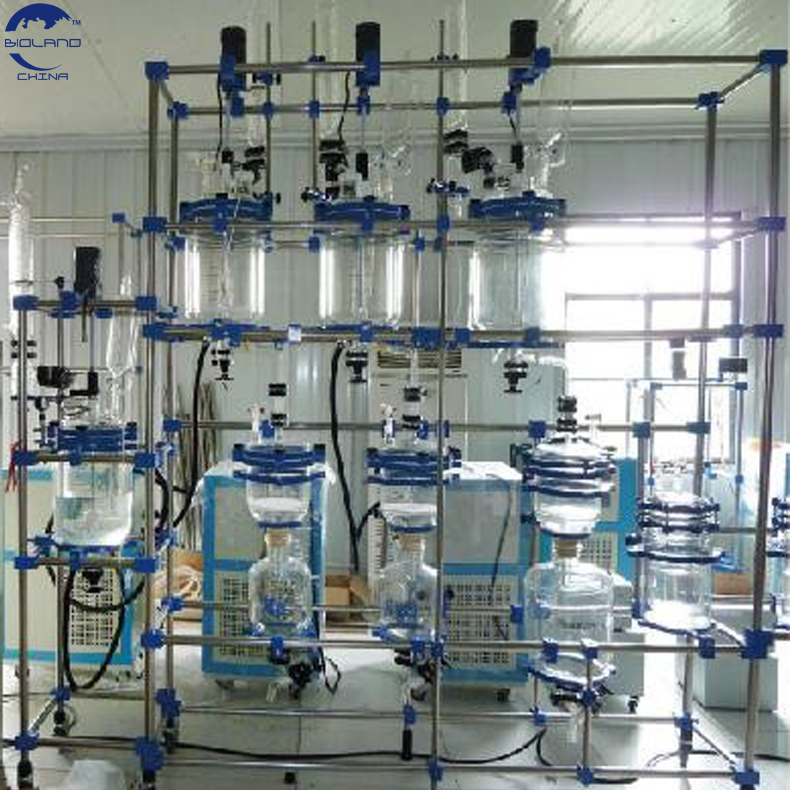

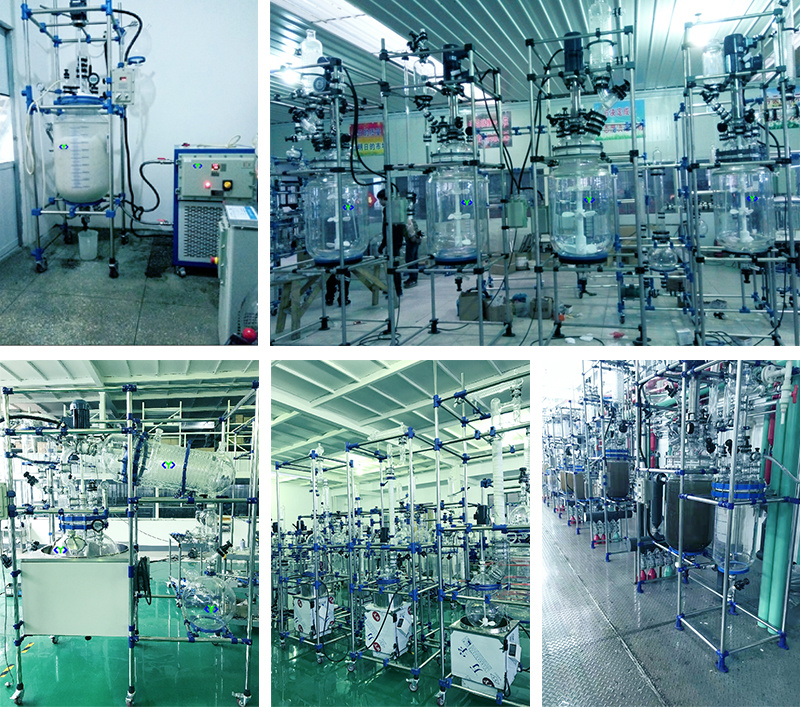

Project Case
