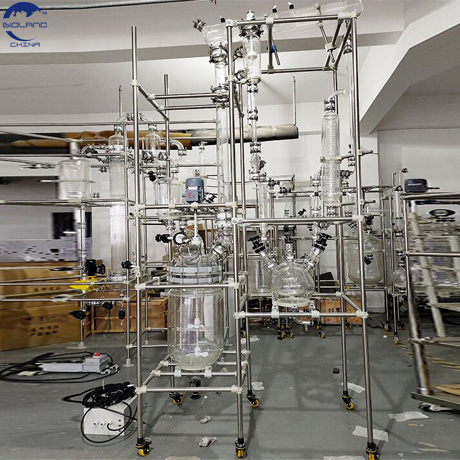

100l continuous Mixing Chemical Jacketed Laboratory Glass Filter Crystallization Reactor

Product Description

Crystallization filter jacketed glass reactor is vacuum filtered, and can also be used for concentration, distillation,
extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.

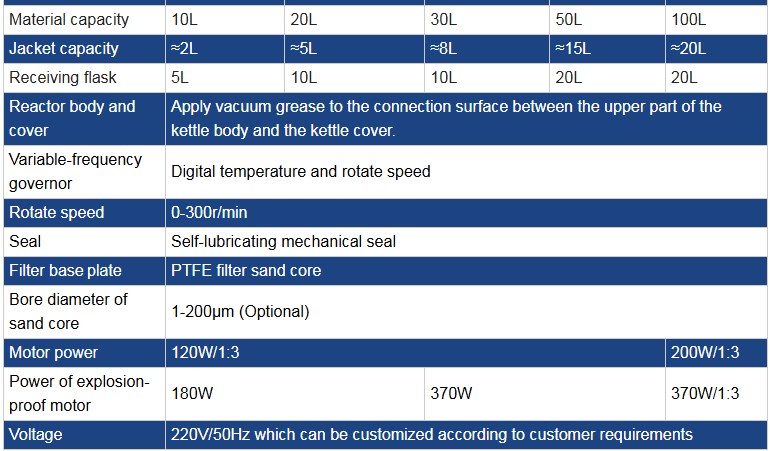

Product Parameters

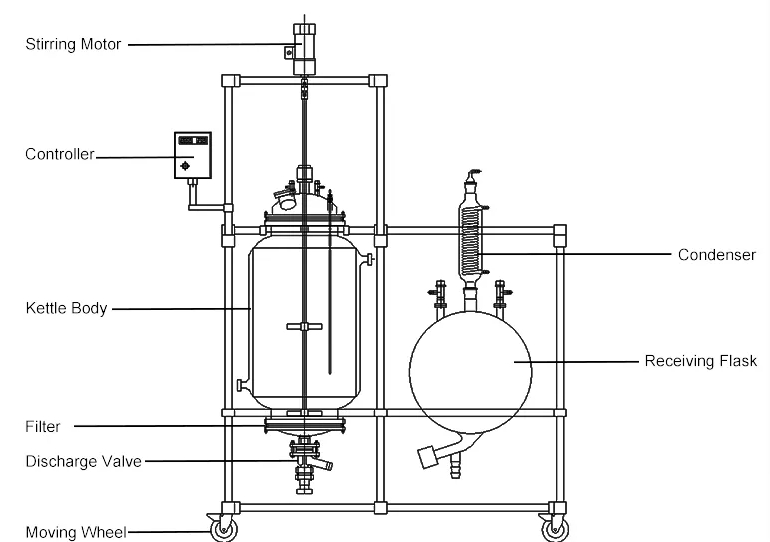

Laboratory Glass Filter Crystallization Reactor ,All contact parts are inert and hence allow the same equipment to be used with a wide range of chemicals and solvents. Appropriate filter is used to separate the solid particles of the slurry forming a filtered board. The filtrate drains to the bottom and can be collected from the bottom outlet valve. The filter cake can be easily removed from the bottom to wash PTFE filter.
It's widely used in pharmaceutical and chemical industries, especially in drug synthesis, fine chemical industry, petrochemical process, new material synthesis, concentration, crystallization and other experiments.

Application

The crystallization filter reactor is s a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It is suitable for the chemical reaction and physical process under the synthesis, catalysis or other solid-liquid of the laboratory/factory, so that one or more steps can be carried out in the same kettle (such as filtration after the completion of the reaction), thus reducing the drift of material measurement and reducing the transfer times of the reaction substrate. It is used in such fields as pharmaceuticals, peptide synthesis, tobacco research and so on.

Packaging & Shipping
