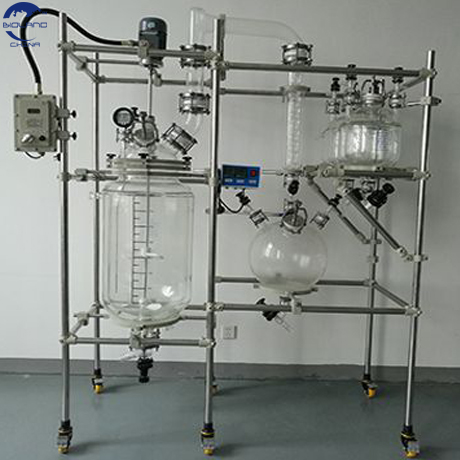

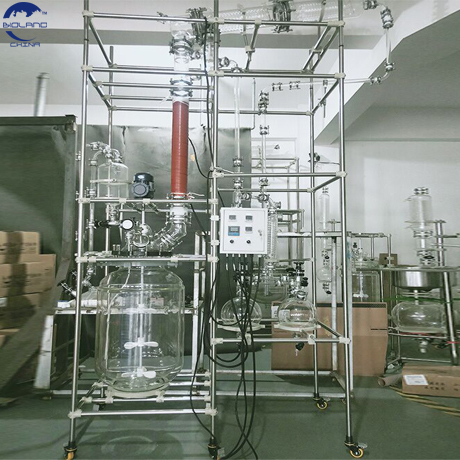

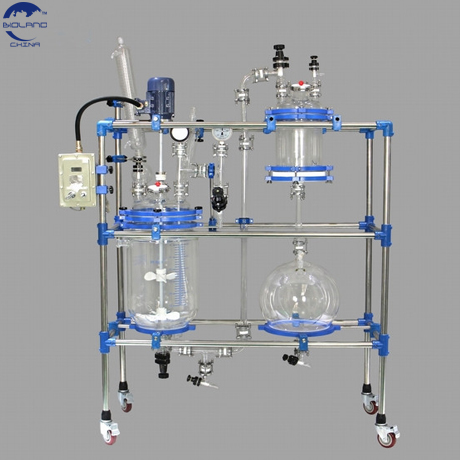

50L Solid phase double-layer glass reactor for peptide synthesis Pyrolysis reaction

Product Description

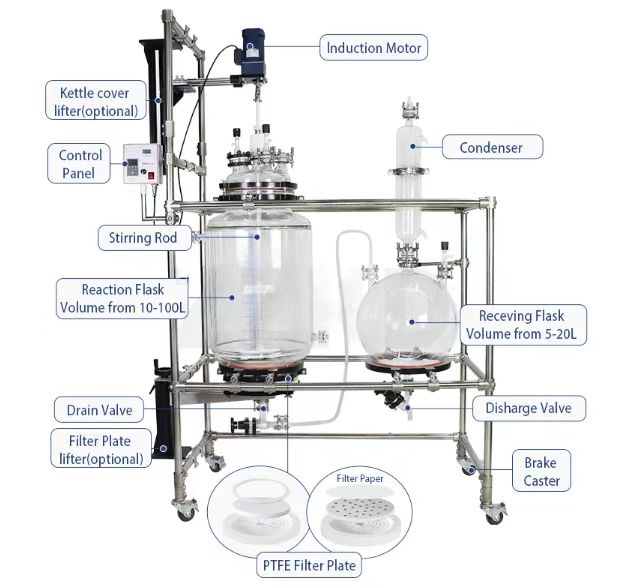

The solid-phase synthesis peptide reactor filtration device is made of PTFE material and connected to the reactor body through a flange for easy disassembly, cleaning, and replacement. Solid phase reaction vessels can be used for processes such as stirring, filtering, and suction filtration. They have an additional replaceable filter plate (optional filter cloth and mesh) compared to conventional reaction vessels. Vacuum negative pressure is used for filtration, and the high silica glass vessel body has high transparency, making it easy to observe the experimental process. Mixing systems can also be optionally selected. Using PT100 temperature probe, the error is small and the temperature measurement accuracy is high. After the experiment is completed, the material needs to be filtered out for easy operation.

Feature

1. The controller box is imported and easy to operate, digital display speed and temperature
2. Option filter plate, pore size from 0.1 to 200μm
3. All glass is GG17 borosilicate glass
4. Filter board can easy removable
5. PTFE paddle or glass paddle for clients' option
6. PTFE bottom value with no dead angle design
7. PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
8. PTFE and special rubber compound seal, can withstand different solvents and maintain high vacuum degree.
9. Stainless steel bracket system, easy to disassemble
10. Customized service according to customers' needs

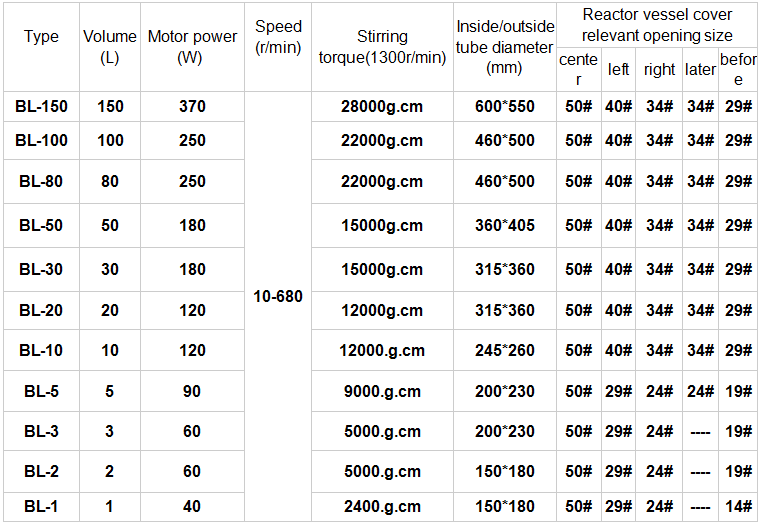

Product Parameters

Application

laboratory crystallization reactor for isolates is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.
