Glass crystallization filter reactors are used in industries such as biology, medicine, chemical engineering, and food. Structural features: The solid-phase synthesis reaction kettle filtration device is made of PTFE material and connected to the kettle body through a flange, which is easy to disassemble, clean and replace. The solid-phase reaction kettle can be used for stirring, filtration, peptide synthesis crystallization, cracking and other processes. Compared with conventional reaction kettles, it has an additional replaceable filter plate (optional filter cloth and filter plate) for vacuum negative pressure filtration. The high borosilicate glass kettle body has high transparency and can be easily observed during the experimental process.

Solid phase synthesis glass filter reactor (peptide, crystallization, filtration, solid-liquid separation) filtration system module more description (details of the operation video link can be obtained from us):
1) The filter membrane part can also be filter cloth, filter paper, made of PTFE or PVDF material, with a filter aperture of 0.2 microns to 1000 microns to choose from
2) The sand core can be glass sand core, PTFE sand core, or PTFE board with holes
3) The PTFE filter bottom plate is equipped with a fluorinated O-ring, which does not contaminate materials and has good sealing performance
4) Integrated filtration system module, providing stainless steel support plate, which can be manually raised and lowered, convenient for installation, disassembly, and membrane replacement
5) There are multiple options for discharge valves, including three-way glass valves (with nitrogen protection), PTFE valves, which are easy to filter and connect with liquid receiving bottles
6) The kettle body and filtration system module can be selected for lifting and rotating, with a lifting stroke of 400mm and a 180 degree rotation, making it easy to discharge solid materials and clean or perform other operations.

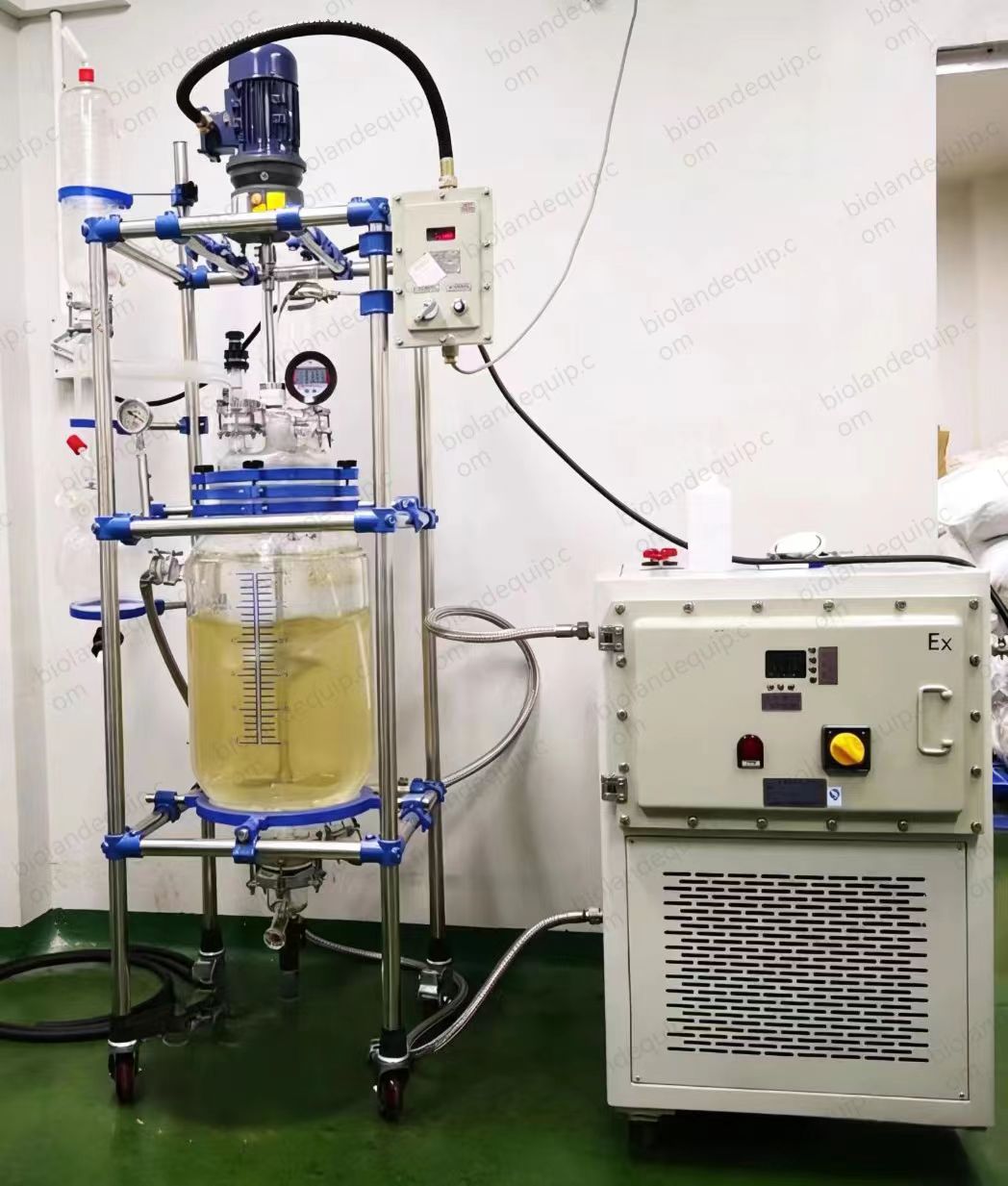

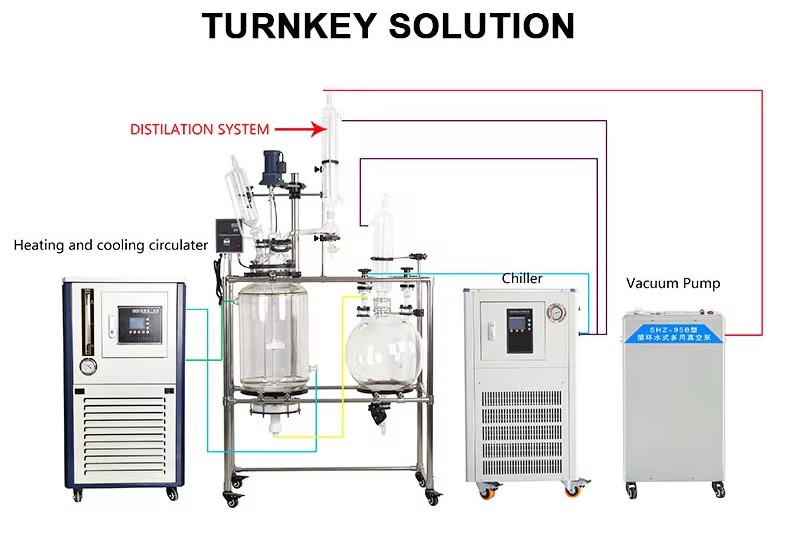

Crystallization Glass filter Reactor is equipped with Shanghai Hujia temperature control equipment, high and low temperature integrated machine, low temperature coolant circulation pump, and circulating water vacuum pump
1. Provide cold and heat sources for high and low temperatures - double-layer stirred tank body
2. Low temperature coolant circulation pump - provides cooling water - condenser or kettle jacket
3. Circulating water vacuum pump - providing vacuum environment - crystallization filtration
The crystallization filtration glass reactor can be directly filtered inside the reactor after interlayer heating and cooling reactions. It is suitable for thermal filtration of materials suitable for crystallization after reaction, that is, the filtration process that maintains the temperature of the solid-liquid mixture within a certain range. It has good sealing performance, and the double-layer filtration reactor can also be used as a peptide reaction tank.

Structural description of Crystallization Glass filter Reactor
The filter membrane part can be filter cloth or filter paper, made of PTFE or PVDF material, with a filter aperture of 0.2 microns to 1000 microns to choose from.
The sand core can be glass sand core, PTFE sand core, or PTFE board with holes.
PTFE filter bottom plate, equipped with fluorine coated O-ring, does not contaminate materials and has good sealing performance.
The overall filtration system module provides a stainless steel support plate, which can be manually raised and lowered for easy installation, disassembly, and replacement of filter membranes.
There are multiple options for discharge valves: three-way glass valves (with nitrogen protection), PTFE valves, which are easy to filter and connect with liquid receiving bottles.
In addition, the kettle body and filtration system module can be equipped with optional lifting and rotating, lifting stroke of 400mm, and 180 degree rotation, which facilitates solid discharge, cleaning, and other operations.

If you want to know more product information, please call us or email via (info@bioland-china.com)
